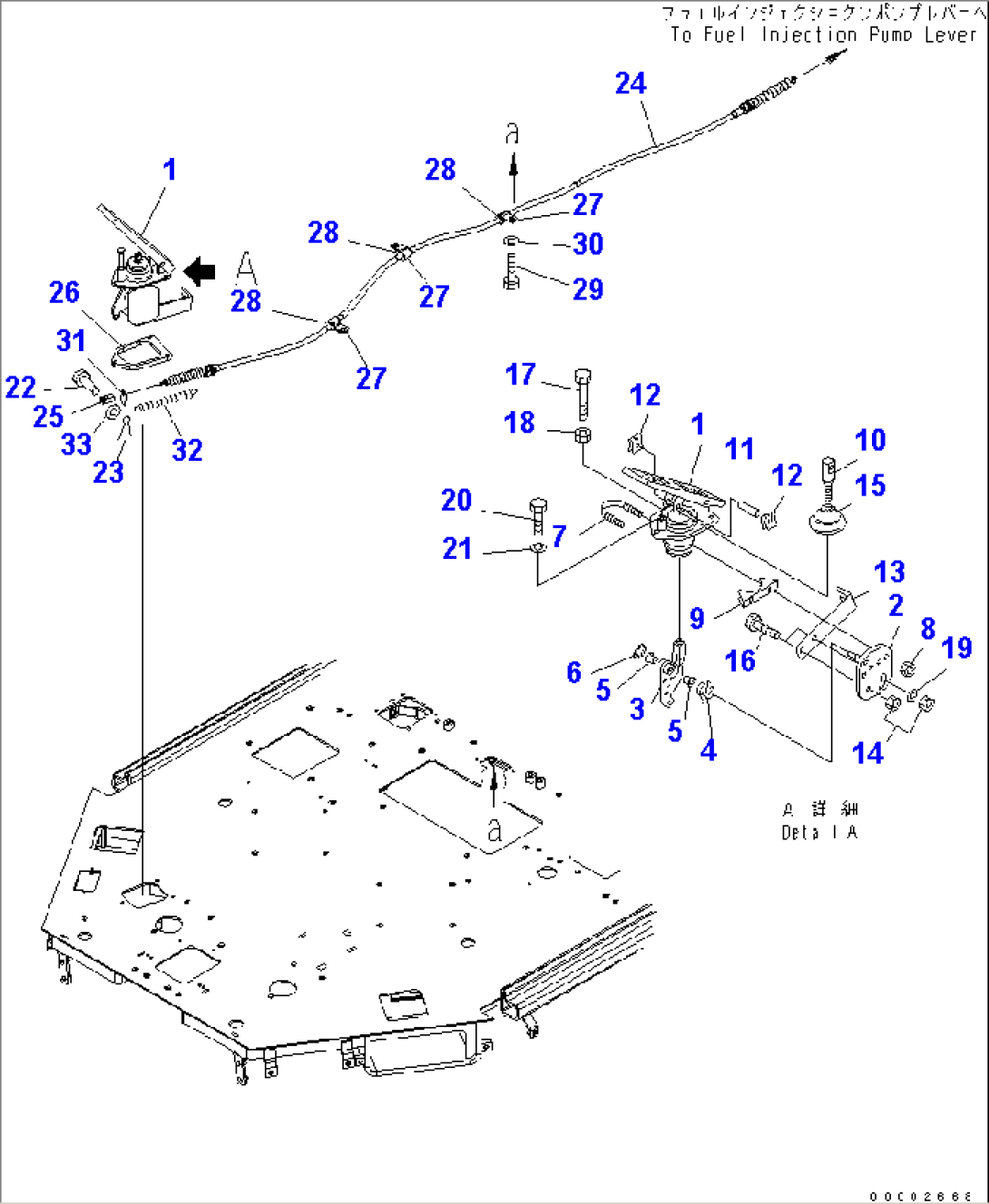

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-43-31120 | PEDAL ASS'Y | 65001- | ||
| 1 | 417-43-11210 | PEDAL | 65001- | |
| 2 | 417-43-11220 | PLATE | 65001- | |
| 3 | 417-43-11230 | LEVER | 65001- | |
| 4 | 417-43-11240 | SPRING | 65001- | |
| 5 | 417-43-11250 | BEARING | 65001- | |
| 6 | 417-43-11260 | CLIP | 65001- | |
| 7 | 417-43-11270 | U-BOLT | 65001- | |
| 8 | 417-43-11280 | NUT | 65001- | |
| 9 | 417-43-11290 | SUPPORT | 65001- | |
| 10 | 417-43-11310 | ROD | 65001- | |
| 11 | 417-43-11320 | PIN | 65001- | |
| 12 | 417-43-11330 | CLIP | 65001- | |
| 13 | 417-43-11340 | SUPPORT | 65001- | |
| 14 | 417-43-11350 | NUT | 65001- | |
| 15 | 417-43-11360 | BOOT | 65001- | |
| 16 | 01010-80616 | BOLT | 65001- | |
| 17 | 01016-50870 | BOLT | 65001- | |
| 18 | 01580-10806 | NUT | 65001- | |
| 19 | 01643-30623 | WASHER | 65001- | |
| 20 | 01010-D0630 | BOLT | 65001- | |
| 21 | 01643-70623 | WASHER | 65001- | |
| 22 | 04205-10620 | PIN | 65001- | |
| 23 | 04050-11612 | PIN,COTTER | 65001- | |
| 24 | 416-43-31121 | CABLE ASS'Y | 65001- | |
| 25 | 04210-20624 | YOKE | 65001- | |
| 26 | 421-43-31510 | PLATE | 65001- | |
| 27 | 04434-52110 | CLIP | 65001- | |
| 28 | 425-43-11180 | GROMMET | 65001- | |
| 29 | 01010-81016 | BOLT | 65001- | |
| 30 | 01643-31032 | WASHER | 65001- | |
| 31 | 424-43-11170 | PLATE | 65001- | |
| 32 | 418-43-18240 | SPRING | 65001- | |
| 33 | 01640-20610 | WASHER | 65001- |
