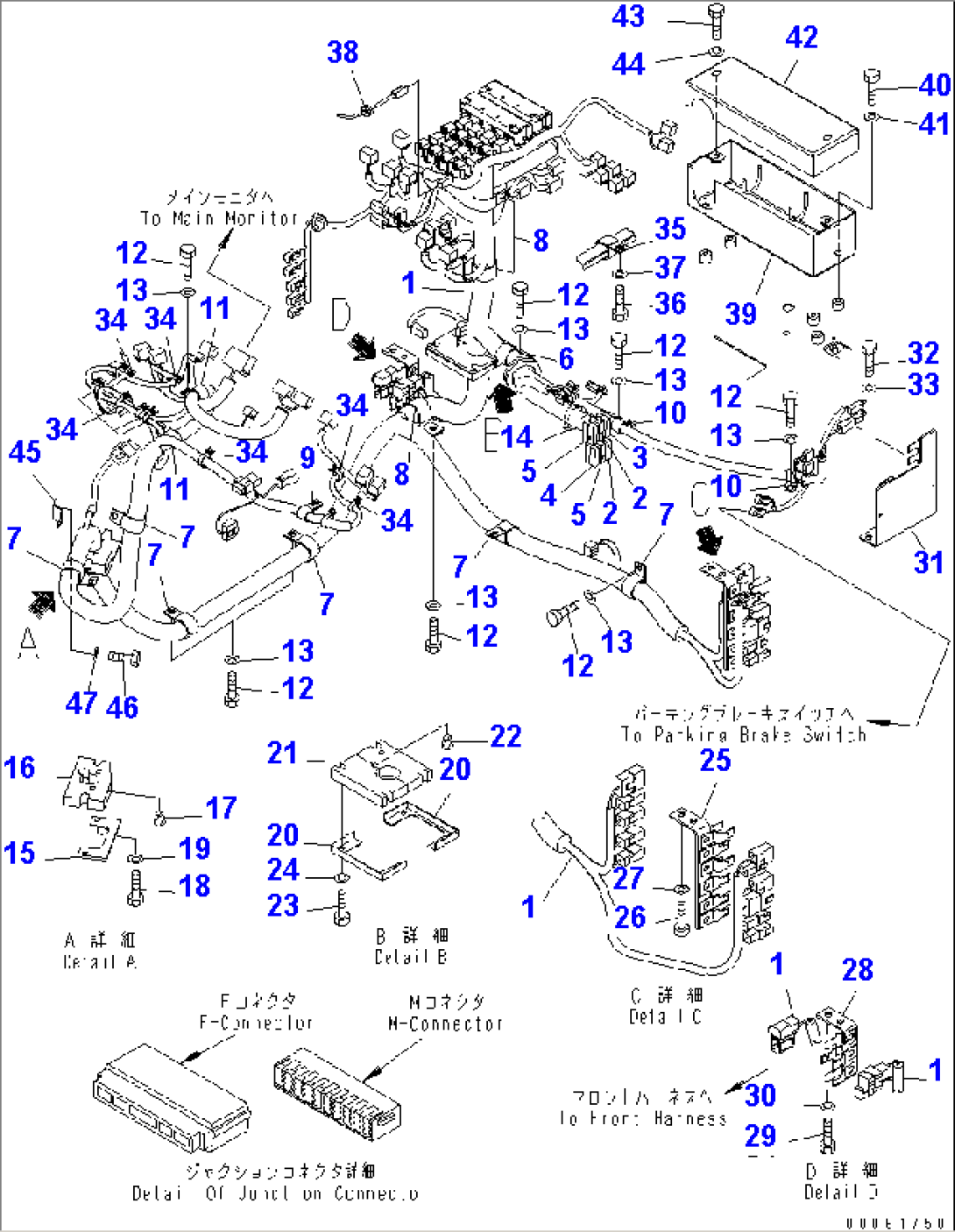

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-32624 | WIRING HARNESS | 68741- | |
| 1 | 418-06-32623 | WIRING HARNESS | 67061-68740 | |
| 1 | 418-06-32622 | WIRING HARNESS | 65706-67060 | |
| 1 | 418-06-32621 | WIRING HARNESS | 65001-65705 | |
| 1 | 20Y-06-25240 | DIODE, 1.5A | 65001- | |
| 1 | 20Y-06-25250 | DIODE, 1.5A | 65001- | |
| 1 | 20Y-06-25260 | DIODE, 1.5A | 65001- | |
| 1 | 283-06-16110 | BOX | 65001- | |
| 1 | 283-06-16160 | TERMINAL | 65001- | |
| 1 | 418-06-35210 | DIODE, 3A | 65001- | |
| 1 | 418-06-35220 | DIODE, 1.5A | 65001- | |
| 2 | HM6400-0016 | F-CONNECTOR, ORANGE | 65001- | |
| 2 | HM6409-0075 | M-CONNECTOR, ORANGE | 65001- | |
| 3 | HM6400-0014 | F-CONNECTOR, BLUE | 65001- | |
| 3 | HM6409-0073 | M-CONNECTOR, BLUE | 65001- | |
| 4 | HM6440-0129 | F-CONNECTOR, PINK | 65001- | |
| 4 | HM6440-0128 | M-CONNECTOR, PINK | 65001- | |
| 5 | HM6400-0186 | F-CONNECTOR, BROWN | 65001- | |
| 5 | HM6400-0014 | F-CONNECTOR, BLUE | 65001- | |
| 6 | 04434-53212 | CLIP | 65001- | |
| 7 | 04434-53412 | CLIP | 65001- | |
| 8 | 23S-62-25850 | CLIP | 65001- | |
| 9 | 04434-51912 | CLIP | 65001- | |
| 10 | 04434-51712 | CLIP | 65001- | |
| 11 | 04434-52312 | CLIP | 65001- | |
| 12 | 01010-81016 | BOLT | 65001- | |
| 13 | 01643-31032 | WASHER | 65001- | |
| 14 | 08034-20519 | BAND | 65001- | |
| 15 | 417-06-22410 | PLATE | 65001- | |
| 16 | 418-06-32452 | SHEET | 65001- | |
| 17 | 07049-01012 | PLUG | 65001- | |
| 18 | 01010-80625 | BOLT | 65001- | |
| 19 | 01643-30623 | WASHER | 65001- | |
| 20 | 418-06-31610 | PLATE | 65001- | |
| 21 | 418-06-31640 | SHEET | 65001- | |
| 22 | 07049-01012 | PLUG | 65001- | |
| 23 | 01010-80612 | BOLT | 65001- | |
| 24 | 01643-30623 | WASHER | 65001- | |
| 25 | 419-06-31333 | BRACKET | 65001- | |
| 26 | 01010-81016 | BOLT | 65001- | |
| 27 | 01643-31032 | WASHER | 65001- | |
| 28 | 419-06-31343 | BRACKET | 65001- | |
| 29 | 01010-81016 | BOLT | 65001- | |
| 30 | 01643-31032 | WASHER | 65001- | |
| 31 | 418-06-31381 | BRACKET | 65001- | |
| 32 | 01010-81025 | BOLT | 65001- | |
| 33 | 01643-31032 | WASHER | 65001- | |
| 34 | 08059-00310 | CLIP | 65001- | |
| 35 | 04434-53412 | CLIP | 65001- | |
| 36 | 01010-81020 | BOLT | 65001- | |
| 37 | 01643-31032 | WASHER | 65001- | |
| 38 | 417-06-12560 | GROMMET | 65001- | |
| 39 | 418-54-33350 | COVER | 65001- | |
| 40 | 01010-81020 | BOLT | 65001- | |
| 41 | 01643-31032 | WASHER | 65001- | |
| 42 | 418-54-33360 | COVER | 65001- | |
| 43 | 01010-81020 | BOLT | 65001- | |
| 44 | 01643-31032 | WASHER | 65001- | |
| 45 | 08193-21012 | CLIP | 65001- | |
| 46 | 01010-81020 | BOLT | 65001- | |
| 47 | 01643-31032 | WASHER | 65001- |
