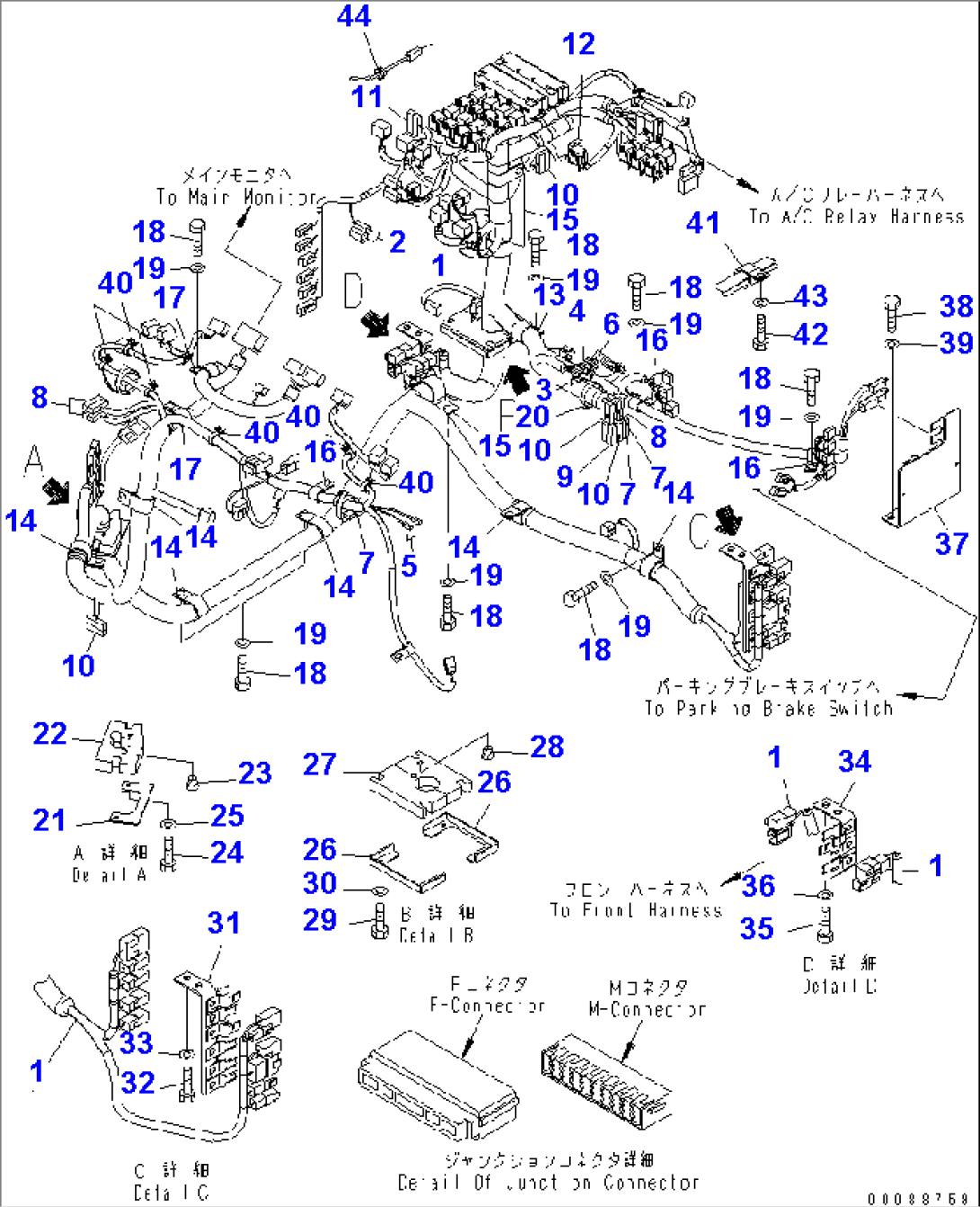

FLOOR (FLOOR HARNESS) (MAIN HARNESS) (FOR EXCEPT JAPAN)(#76481-)

FLOOR (FLOOR HARNESS) (MAIN HARNESS) (FOR EXCEPT JAPAN)(#76481-)
ItemPart No.Part NameQtySerial No.
1418-06-32750WIRING HARNESS76481-
1283-06-16110BOX65001-
1283-06-16160TERMINAL65001-
219M-06-31720RESISTOR76481-
320Y-06-25250DIODE, 1.5A65001-
420Y-06-25260DIODE, 1.5A65001-
5418-06-35210DIODE, 3A65001-
6418-06-35220DIODE, 1.5A65001-
7HM6400-0016F-CONNECTOR, ORANGE65001-
7HM6409-0075M-CONNECTOR, ORANGE65001-
8HM6400-0014F-CONNECTOR, BLUE65001-
8HM6409-0073M-CONNECTOR, BLUE65001-
9HM6440-0129F-CONNECTOR, PINK65001-
9HM6440-0128M-CONNECTOR, PINK65001-
10HM6400-0186F-CONNECTOR, BROWN76481-
10HM6409-0603M-CONNECTOR, BROWN76481-
11HM6400-0013F-CONNECTOR, GREEN65001-
11HM6409-0072M-CONNECTOR, GREEN65001-
12HM6400-0081F-CONNECTOR, GRAY65001-
12HM6409-0255M-CONNECTOR, GRAY65001-
1304434-53212CLIP65001-
1404434-53412CLIP65001-
1523S-62-25850CLIP65001-
1604434-51912CLIP65001-
1704434-52312CLIP65001-
1801010-81016BOLT65001-
1901643-31032WASHER65001-
2008034-20519BAND65001-
21417-06-22410PLATE65001-
22418-06-32452SHEET65001-
2307049-01012PLUG65001-
2401010-80625BOLT65001-
2501643-30623WASHER65001-
26418-06-31610PLATE65001-
27418-06-31640SHEET65001-
2807049-01012PLUG65001-
2901010-80612BOLT65001-
3001643-30623WASHER65001-
31419-06-31333BRACKET65001-
3201010-81016BOLT65001-
3301643-31032WASHER65001-
34419-06-31343BRACKET65001-
3501010-81016BOLT65001-
3601643-31032WASHER65001-
37418-06-31381BRACKET65001-
3801010-81025BOLT65001-
3901643-31032WASHER65001-
4008059-00310CLIP65001-
4104434-53412CLIP65001-
4201010-81020BOLT65001-
4301643-31032WASHER65001-
44417-06-12560GROMMET65001-
