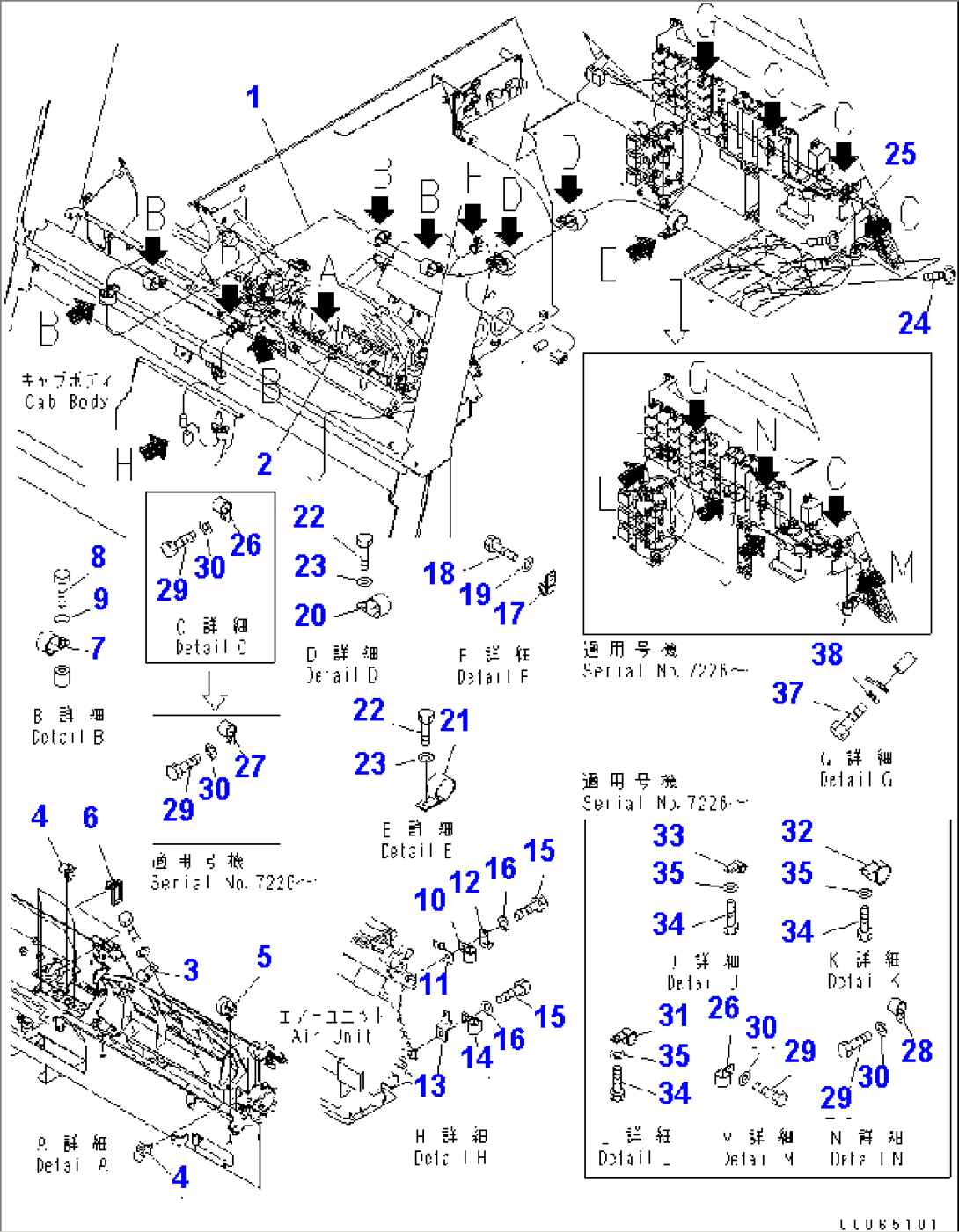

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-06-86414 | WIRING HARNESS | 7365- | |
| 1 | 566-06-86413 | WIRING HARNESS | 7101-7364 | |
| 1 | (\2\566-06-86412) | WIRING HARNESS | (7101-7225) | |
| 1 | \0\566-06-86411 | WIRING HARNESS | 7001-7100 | |
| 2 | 56B-06-16830 | CONNECTOR | 7001- | |
| 3 | 04434-51010 | CLIP | 7226- | |
| 3 | 04434-51008 | CLIP | 7001-7225 | |
| 4 | 08059-00310 | CLIP | 7001- | |
| 5 | 08059-00413 | CLIP | 7001- | |
| 6 | 08059-00515 | CLIP | 7001- | |
| 7 | 281-01-13180 | CLIP | 7001- | |
| 8 | 01010-81016 | BOLT | 7001- | |
| 9 | 01643-31032 | WASHER | 7001- | |
| 10 | 04434-51910 | CLIP | 7001- | |
| 11 | 08053-01510 | CLIP | 7001- | |
| 12 | 04434-51010 | CLIP | 7226- | |
| 12 | 04434-51008 | CLIP | 7001-7225 | |
| 13 | 08053-00910 | CLIP | 7001- | |
| 14 | 04434-50608 | CLIP | 7001- | |
| 15 | 01010-80616 | BOLT | 7001- | |
| 16 | 01643-30623 | WASHER | 7001- | |
| 17 | 04434-51710 | CLIP | 7001- | |
| 18 | 01010-81016 | BOLT | 7001- | |
| 19 | 01643-31032 | WASHER | 7001- | |
| 20 | 281-01-13180 | CLIP | 7226- | |
| 20 | 23S-62-25850 | CLIP | 7001-7225 | |
| 21 | 23S-62-25850 | CLIP | 7226- | |
| 21 | 419-09-11150 | CLIP | 7001-7225 | |
| 22 | 01010-81016 | BOLT | 7001- | |
| 23 | 01643-31032 | WASHER | 7001- | |
| 24 | 01023-60414 | SCREW | 7001- | |
| 25 | 01023-60425 | SCREW | 7001- | |
| 26 | 04434-52110 | CLIP | 7226- | |
| 26 | 04434-52110 | CLIP | 7001-7225 | |
| 27 | 281-01-13180 | CLIP | 7226- | |
| 28 | 04434-52511 | CLIP | 7440- | |
| 28 | 04434-52712 | CLIP | 7226-7439 | |
| 29 | 01010-81020 | BOLT | 7001- | |
| 30 | 01643-31032 | WASHER | 7001- | |
| 31 | 04434-52110 | CLIP | 7226- | |
| 31 | 04434-52110 | CLIP | 7001-7225 | |
| 32 | 281-01-13180 | CLIP | 7226- | |
| 33 | 04434-51210 | CLIP | 7226- | |
| 34 | 01010-81020 | BOLT | 7001- | |
| 35 | 01643-31032 | WASHER | 7001- | |
| 37 | 01010-81016 | BOLT | 7001- | |
| 38 | 01643-31032 | WASHER | 7001- |
