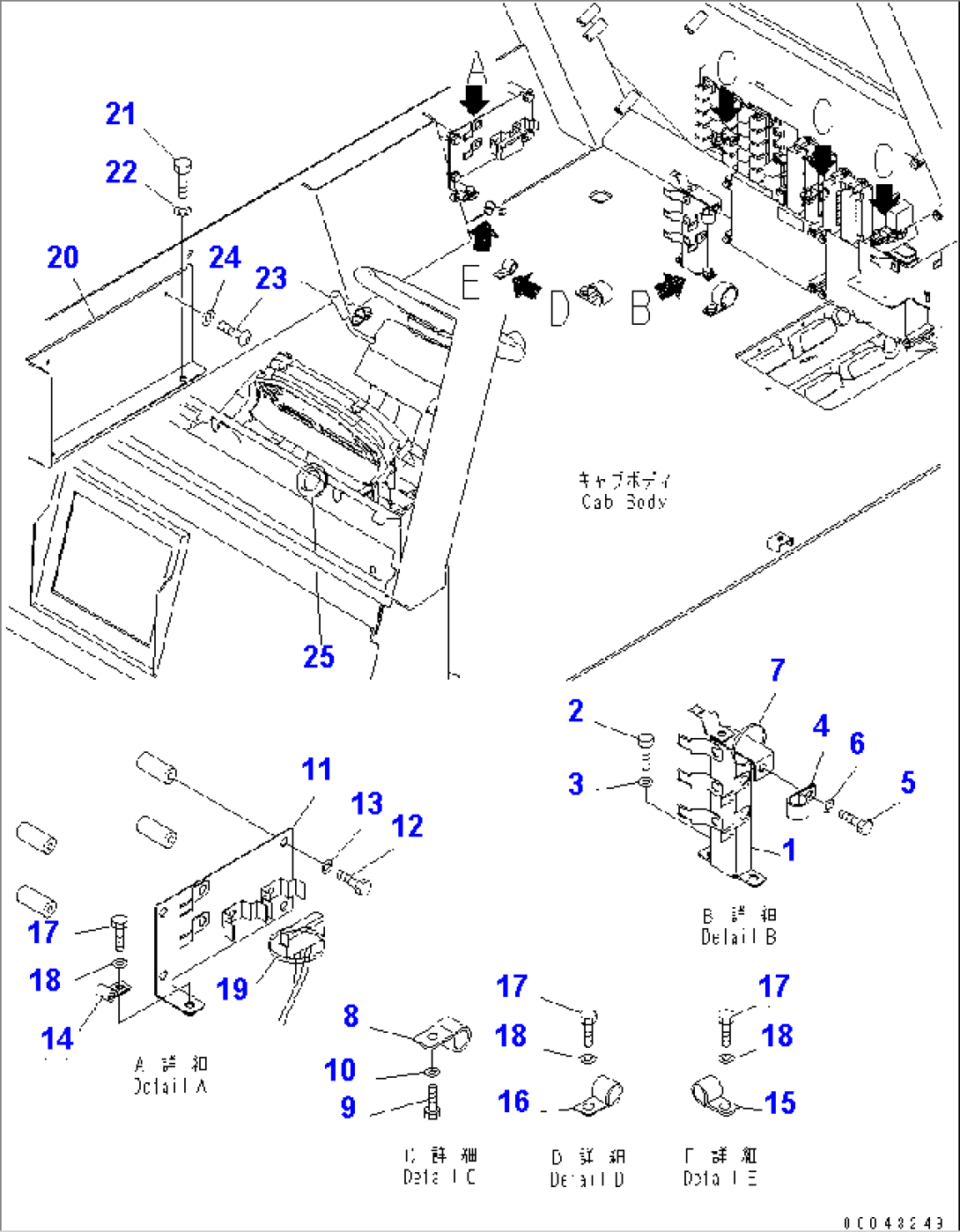

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-86310 | BRACKET | 3001- | |
| 2 | 01010-81016 | BOLT | 3001- | |
| 3 | 01643-31032 | WASHER | 3001- | |
| 4 | 23S-62-25850 | CLIP | 7223- | |
| 4 | 04434-52110 | CLIP | 3001-7222 | |
| 5 | 01010-81016 | BOLT | 3001- | |
| 6 | 01643-31032 | WASHER | 3001- | |
| 7 | 08034-20834 | BAND | 3001- | |
| 8 | 04434-52110 | CLIP | 3001- | |
| 9 | 01010-81020 | BOLT | 3001- | |
| 10 | 01643-31032 | WASHER | 3001- | |
| 11 | 561-06-86320 | BRACKET | 3001- | |
| 12 | 01010-81020 | BOLT | 3001- | |
| 13 | 01643-31032 | WASHER | 3001- | |
| 14 | 04434-51010 | CLIP | 3001- | |
| 15 | 04434-51410 | CLIP | 3001- | |
| 16 | 04434-51710 | CLIP | 3001- | |
| 17 | 01010-81016 | BOLT | 3001- | |
| 18 | 01643-31032 | WASHER | 3001- | |
| 19 | 08034-20834 | BAND | 3001- | |
| 20 | 561-06-86170 | COVER | 3001- | |
| 21 | 01010-81020 | BOLT | 3001- | |
| 22 | 01643-31032 | WASHER | 3001- | |
| 23 | 01245-00612 | SCREW | 3001- | |
| 24 | 01643-70623 | WASHER | 3001- | |
| 25 | 08037-05016 | GROMMET | 3001- |
