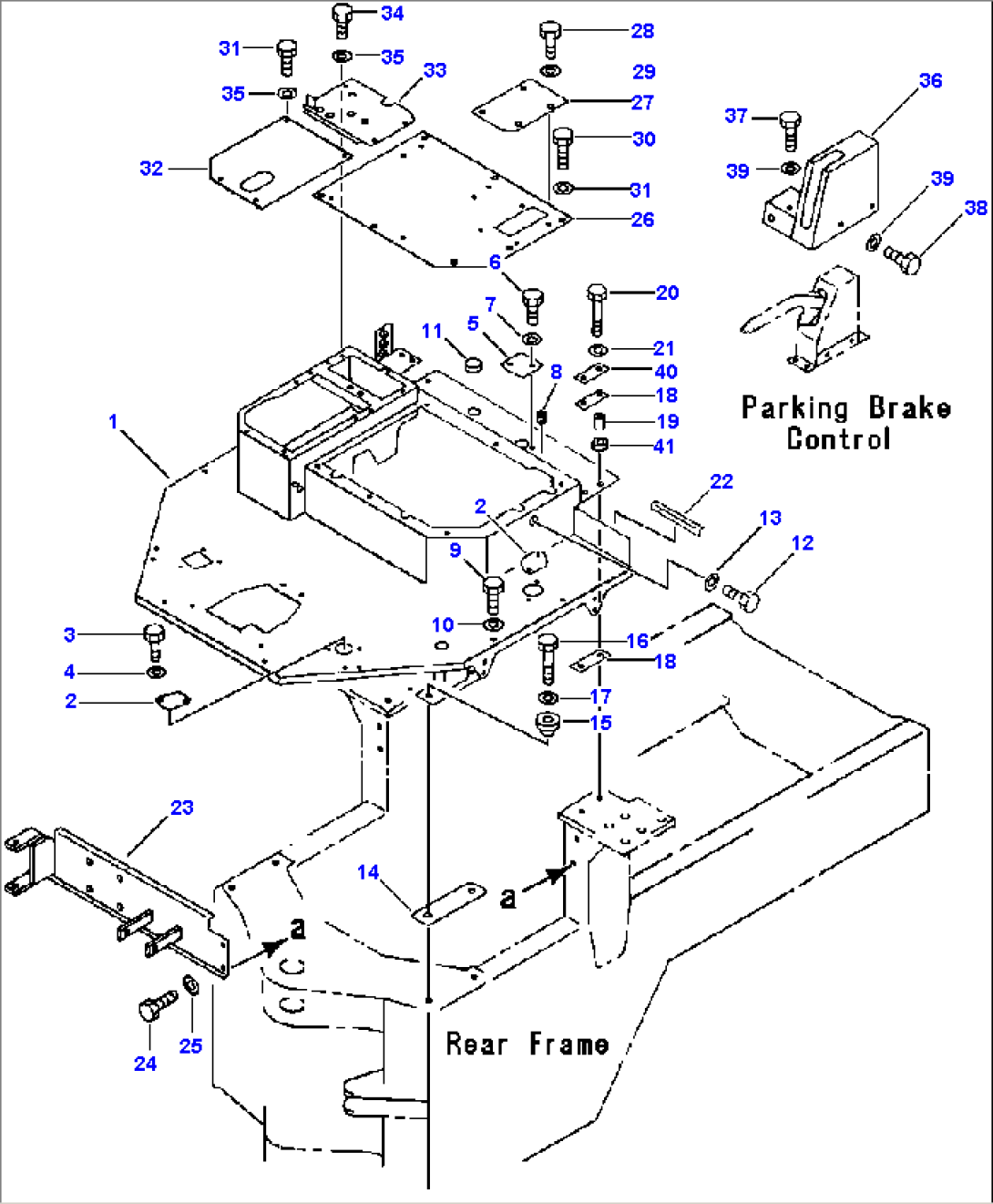

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-54-A1500 | SUPPORT, FLOOR | ||
| 417-963-2620 | SUPPORT, FLOOR | |||
| 416-54-A1180 | SUPPORT, FLOOR | |||
| 2 | 417-54-A1680 | COVER | ||
| 3 | 01010-50616 | BOLT | ||
| 4 | 01643-30623 | WASHER | ||
| 5 | 417-54-A1670 | COVER | ||
| 6 | 01010-50825 | BOLT | ||
| 7 | 01643-30823 | WASHER | ||
| 8 | 07049-00811 | PLUG | ||
| 9 | 01010-51025 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 09415-01008 | CAP | ||
| 12 | 01010-51020 | BOLT | ||
| 13 | 01643-31032 | WASHER | ||
| 14 | 417-54-13411 | PLATE | ||
| 15 | 417-54-13380 | BOSS | ||
| 16 | 01010-51460 | BOLT | ||
| 17 | 01643-31445 | WASHER | ||
| 18 | 417-54-12241 | CUSHION | ||
| 19 | 417-62-14130 | SPACER | ||
| 20 | 01010-51250 | BOLT | ||
| 21 | 01643-31232 | WASHER | ||
| 22 | 417-54-13361 | SEAL | ||
| 23 | 416-54-12620 | SUPPORT | ||
| 24 | 01010-31235 | BOLT | ||
| 25 | 01643-31232 | WASHER | ||
| 26 | 417-54-A1640 | COVER | ||
| 417-963-2810 | COVER | |||
| 27 | 417-54-A1560 | COVER | ||
| 417-963-2940 | COVER | |||
| 28 | 01010-51020 | BOLT | ||
| 29 | 01643-31032 | WASHER | ||
| 30 | 01010-51230 | BOLT | ||
| 31 | 01643-31232 | WASHER | ||
| 32 | 417-54-A1590 | PLATE | ||
| 33 | 417-54-A1580 | PLATE | ||
| 34 | 01010-50820 | BOLT | ||
| 35 | 01643-30823 | WASHER | ||
| 36 | 417-54-A1660 | COVER, PARKING BRAKE CONTROL LEVER | ||
| 416-06-16111 | COVER, PARKING BRAKE CONTROL LEVER | |||
| 417-U77-1980 | COVER, PARKING BRAKE CONTROL LEVER | |||
| 37 | 01010-50820 | BOLT, COVER | ||
| 38 | 01010-50816 | BOLT, COVER | ||
| 39 | 01643-30823 | WASHER | ||
| 40 | 417-54-A1550 | PLATE | ||
| 41 | 417-64-13160 | CUSHION | ||
| F1 - ON MACHINES NOT EQUIPPED WITH AIR CONDITIONING. | ||||
| F2 - ON MACHINES EQUIPPED WITH KOMATSU AIR CONDITIONING | ||||
| S/N A75653 AND DOWN. | ||||
| F3 - ON MACHINES EQUIPPED WITH EAGLE AIR CONDITIONING | ||||
| S/N A75654 AND UP. | ||||
| F4 - ON MACHINES NOT EQUIPPED WITH CAB. | ||||
| F5 - ON MACHINES EQUIPPED WITH CAB. | ||||
| F6 - USED ON MACHINES WITH STANDARD LOADER LINKAGE. | ||||
| F7 - USED ON MACHINES WITH PARALLEL TOOL CARRIER LINKAGE. | ||||
