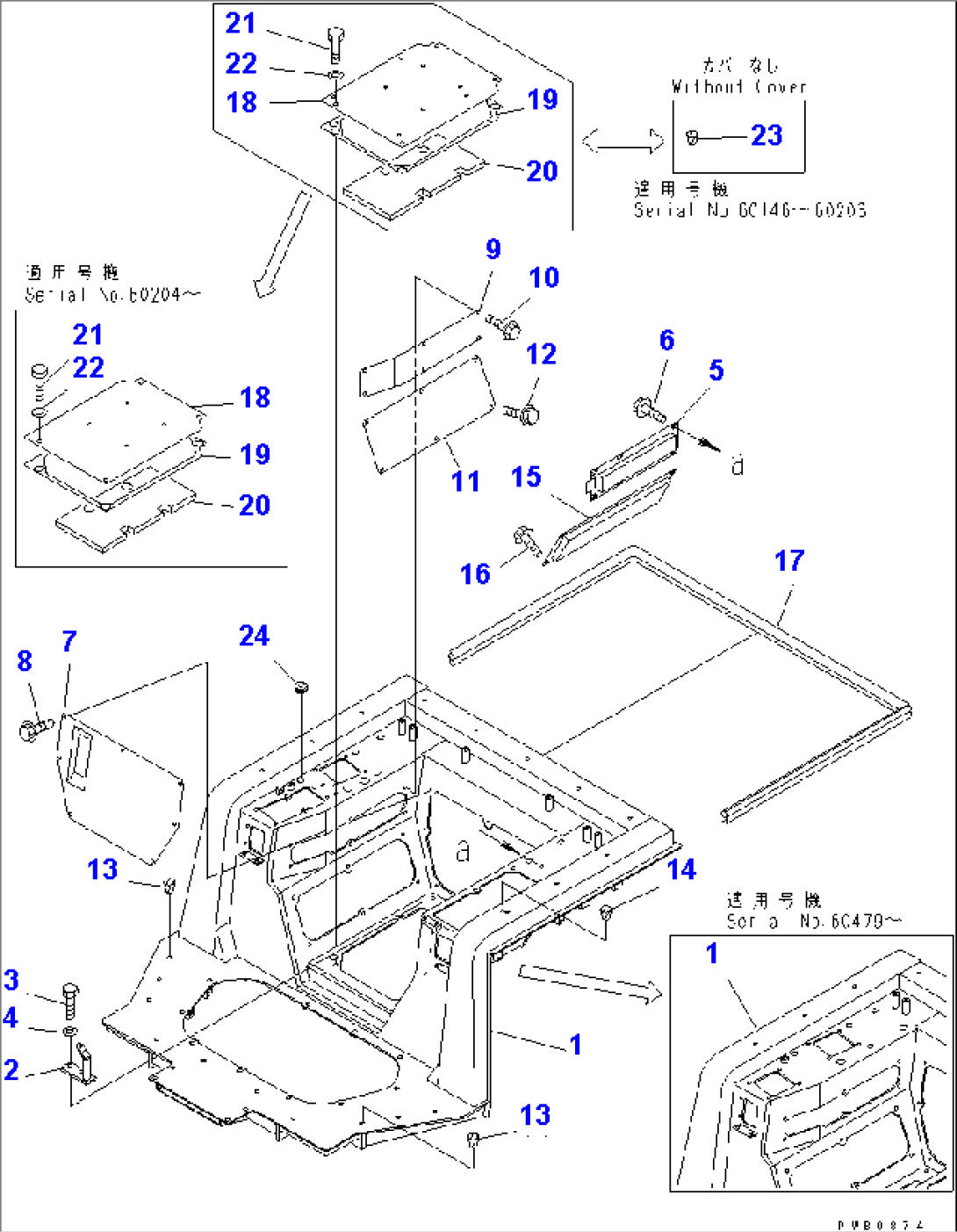

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-54-16112 | FRAME | 60479- | |
| 1 | 17A-54-16111 | FRAME | 60001-60478 | |
| 2 | 14X-54-16641 | BRACKET | 60001- | |
| 3 | 01010-81030 | BOLT | 60001- | |
| 4 | 01643-31032 | WASHER | 60001- | |
| 5 | 17A-54-16131 | COVER | 60001- | |
| 6 | 01439-00825 | BOLT | 60001- | |
| 7 | 17A-54-16141 | COVER | 60001- | |
| 8 | 01439-00825 | BOLT | 60001- | |
| 9 | 17A-54-16241 | COVER | 60001- | |
| 10 | 01439-00825 | BOLT | 60001- | |
| 11 | 17A-54-16151 | COVER | 60001- | |
| 12 | 01439-00825 | BOLT | 60001- | |
| 13 | 07049-01215 | PLUG | 60001- | |
| 14 | 07049-01215 | PLUG | 60001- | |
| 15 | 17A-54-16151 | COVER | 60001- | |
| 16 | 01439-00825 | BOLT | 60001- | |
| 17 | 14X-54-16230 | SEAL | 60001- | |
| 17A-57-11211 | COVER | 60001- | ||
| 18 | 17A-57-11231 | COVER | 60001- | |
| 19 | 17A-57-11221 | SEAL (BONDED) | 60001- | |
| 20 | 17A-57-11241 | SHEET (BONDED) | 60001- | |
| 21 | 01010-81235 | BOLT | 60001- | |
| 22 | 01643-31232 | WASHER | 60001- | |
| 23 | 07049-01418 | PLUG | 60146-60203 | |
| 24 | 135-06-34260 | GROMMET | 60001- |
