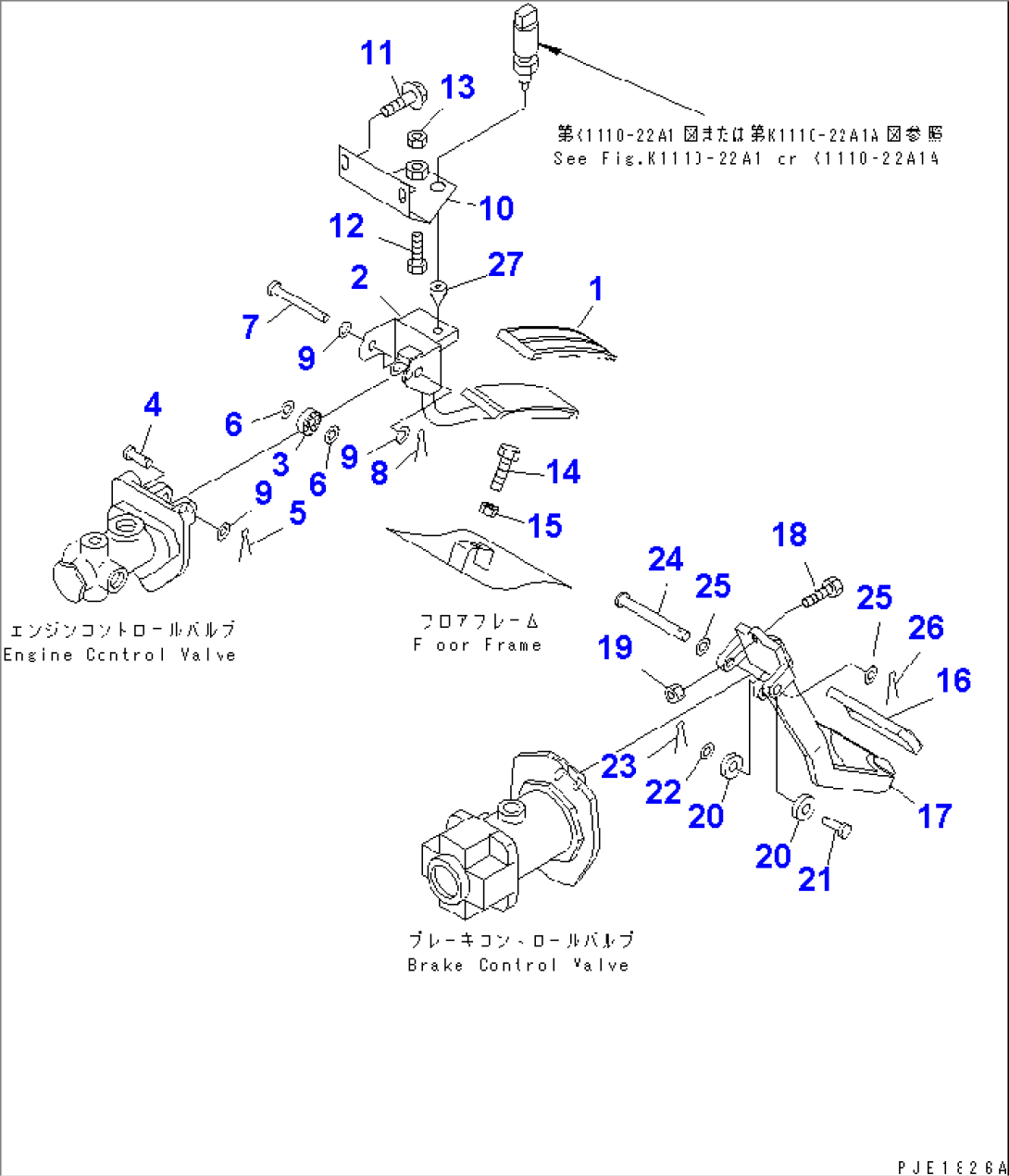

Item | Part No. | Part Name | Qty | Serial No. |
23S-43-57100 | PEDAL ASS'Y | 53001- | ||
1 | 22T-43-17190 | PAD | 53001- | |
2 | 23S-43-57110 | PEDAL | 53001- | |
3 | 06032-06000 | BEARING | 53001- | |
4 | 04205-11030 | PIN | 53001- | |
5 | 04050-13020 | PIN,COTTER | 53001- | |
6 | 01641-21016 | WASHER | 53001- | |
7 | 236-46-11260 | PIN | 53001- | |
8 | 04050-13020 | PIN,COTTER | 53001- | |
9 | 01643-31032 | WASHER | 53001- | |
10 | 23S-43-57120 | BRACKET | 53001- | |
11 | 01435-00816 | BOLT | 53001- | |
12 | 22T-42-11240 | CUSHION | 53001- | |
13 | 01580-10806 | NUT | 53001- | |
14 | 01016-50835 | BOLT | 53201- | |
14 | 01016-50850 | BOLT | 53112-53119 | |
14 | 01016-50835 | BOLT | .-53111 | |
14 | \0\01016-50830 | BOLT | 53001-. | |
15 | 01580-10806 | NUT | 53001- | |
23W-44-12110 | PEDAL ASS'Y | 53001- | ||
16 | 22T-42-11160 | PAD | 53001- | |
17 | 23W-44-12120 | PEDAL | 53001- | |
18 | 01016-50850 | BOLT | 53001- | |
19 | 01580-10806 | NUT | 53001- | |
20 | 23S-44-32130 | ROLLER | 53001- | |
21 | 04205-11032 | PIN | 53001- | |
22 | 01641-21016 | WASHER | 53001- | |
23 | 04050-13020 | PIN,COTTER | 53001- | |
24 | 23S-44-32140 | PIN | 53001- | |
25 | 01643-31032 | WASHER | 53001- | |
26 | 04050-13020 | PIN,COTTER | 53001- | |
27 | 415-54-12680 | CUSHION | 53001- |
