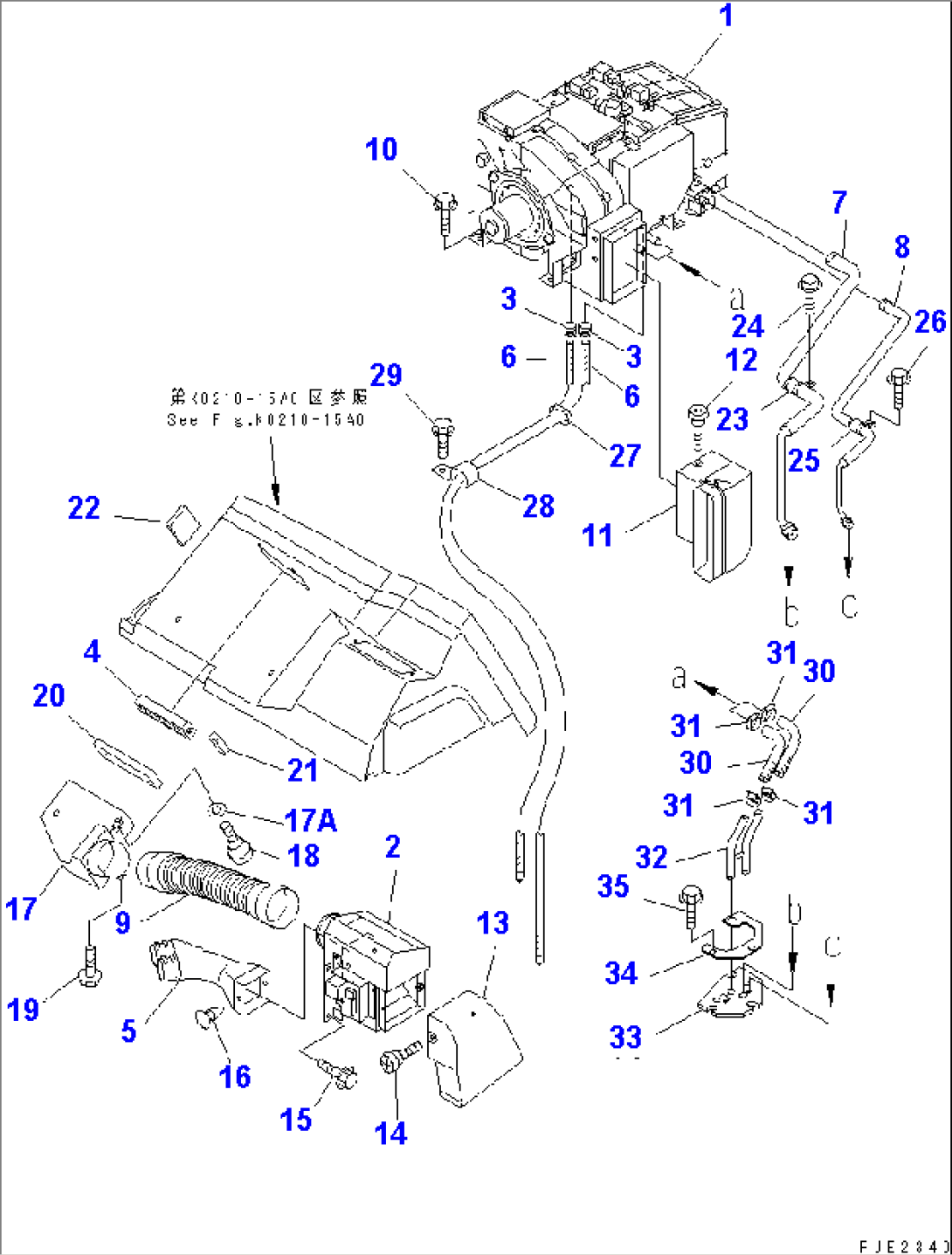

| Item | Part No. | Part Name | Qty | Serial No. |
| 22T-56-23100 | AIR CONDITIONER KIT | 15001- | ||
| 1 | (23S-56-53280) | AIR CONDITIONER | 15001- | |
| 2 | (23S-56-53130) | DUCT ASS'Y | 15001- | |
| 3 | 23S-56-53250 | CLAMP | 15001- | |
| 4 | 23S-56-53380 | LOUVER | 15001- | |
| 5 | 23S-56-53460 | DUCT | 15001- | |
| 6 | 22T-56-23130 | HOSE,DRAIN | 15001- | |
| 7 | 22T-56-23140 | TUBE | 15001- | |
| 8 | 22T-56-23150 | TUBE | 15001- | |
| 9 | 22T-56-23260 | HOSE | 15001- | |
| 10 | 01435-01020 | BOLT | 15001- | |
| 11 | 23S-56-53740 | DUCT ASS'Y | 15001- | |
| 12 | 421-09-21460 | SCREW | 15001- | |
| 13 | 23S-56-53780 | DUCT | 15001- | |
| 14 | 421-09-21460 | SCREW | 15001- | |
| 15 | 01435-00612 | BOLT | 15001- | |
| 16 | 23S-56-53470 | BUTTON | 15001- | |
| 17 | 23S-56-53420 | DUCT | 15001- | |
| 17A | 01643-30823 | WASHER | 15198- | |
| 18 | 421-09-21410 | SCREW | 15001- | |
| 19 | 01435-00612 | BOLT | 15001- | |
| 20 | 23S-56-53430 | SEAL | 15001- | |
| 21 | 23S-56-53450 | SHEET | 15001- | |
| 22 | 23S-56-53440 | SHEET | 15001- | |
| 23 | 04434-51610 | CLIP | 15001- | |
| 24 | 01435-01016 | BOLT | 15001- | |
| 25 | 04434-50810 | CLIP | 15001- | |
| 26 | 01435-01016 | BOLT | 15001- | |
| 27 | 08034-20519 | BAND | 15001- | |
| 28 | 04435-51410 | CLIP | 15001- | |
| 29 | 01435-01016 | BOLT | 15001- | |
| 30 | 22T-56-23210 | HOSE | 15001- | |
| 31 | 07281-00259 | CLAMP | 15001- | |
| 32 | 22T-56-23220 | TUBE | 15001- | |
| 33 | 22T-56-23180 | SHEET | 15001- | |
| 34 | 22T-56-23190 | PLATE | 15001- | |
| 35 | 01435-01025 | BOLT | 15001- |
