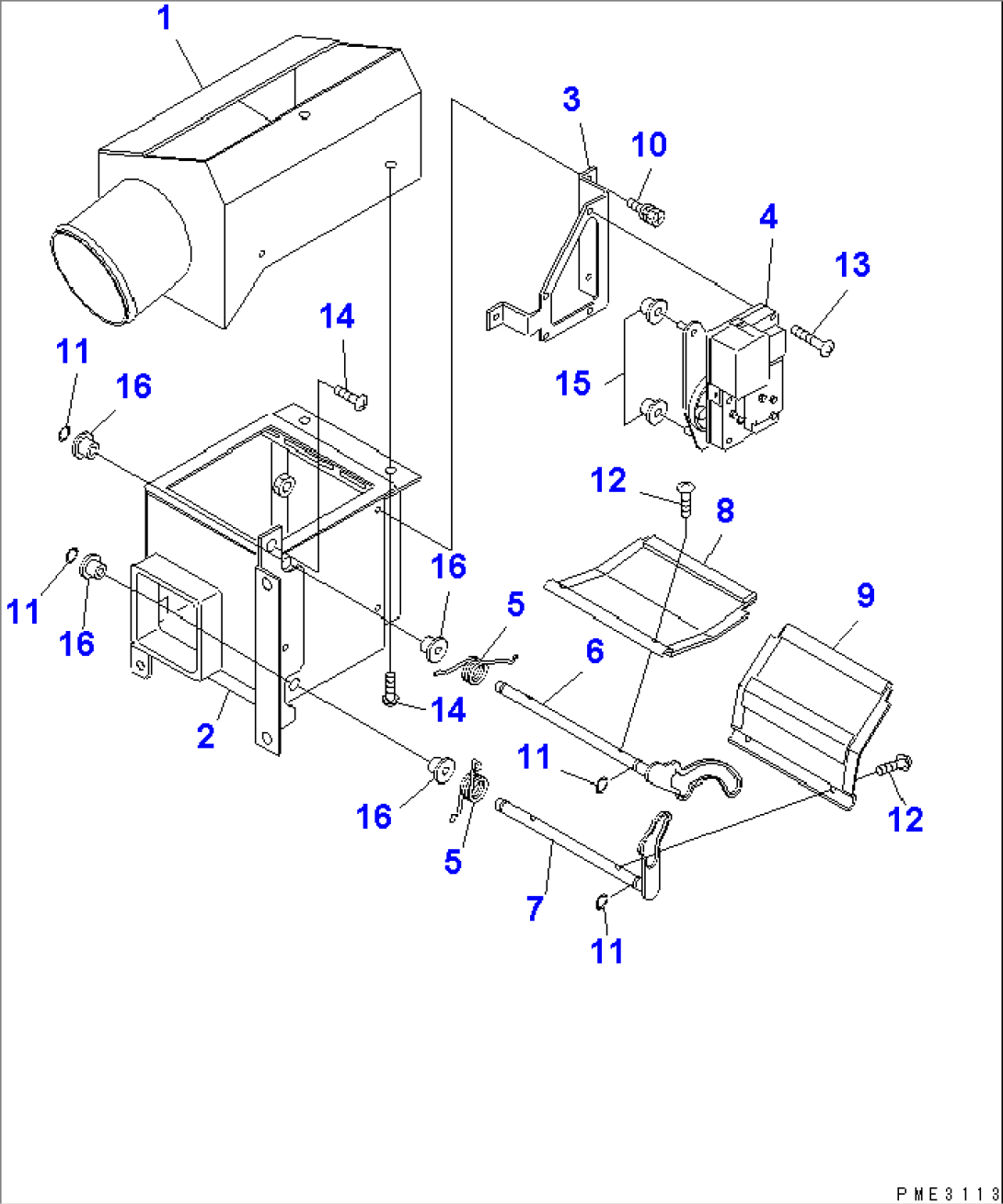

| Item | Part No. | Part Name | Qty | Serial No. |
| (22T-56-23100) | AIR CONDITIONER KIT | 15001- | ||
| 23S-56-53130 | DUCT ASS'Y | 15001- | ||
| 1 | 23S-56-51920 | DUCT | 15001- | |
| 2 | 23S-56-51930 | BOX | 15001- | |
| 3 | 23S-56-51940 | BRACKET | 15001- | |
| 4 | 23S-56-51950 | ACTUATOR | 15001- | |
| 5 | 23S-56-51960 | SPRING | 15001- | |
| 6 | 23S-56-51970 | SHAFT | 15001- | |
| 7 | 23S-56-51980 | SHAFT | 15001- | |
| 8 | 23S-56-51990 | DAMPER | 15001- | |
| 9 | 23S-56-52710 | DAMPER | 15001- | |
| 10 | 23S-56-52720 | BOLT | 15001- | |
| 11 | 23S-56-51740 | RING,E | 15001- | |
| 12 | 23S-56-51750 | SCREW | 15001- | |
| 13 | 23S-56-52730 | SCREW | 15001- | |
| 14 | 23S-56-51820 | SCREW,TAPPING | 15001- | |
| 15 | 23S-56-52740 | BUSHING | 15001- | |
| 16 | 23S-56-52750 | SPACER | 15001- |
