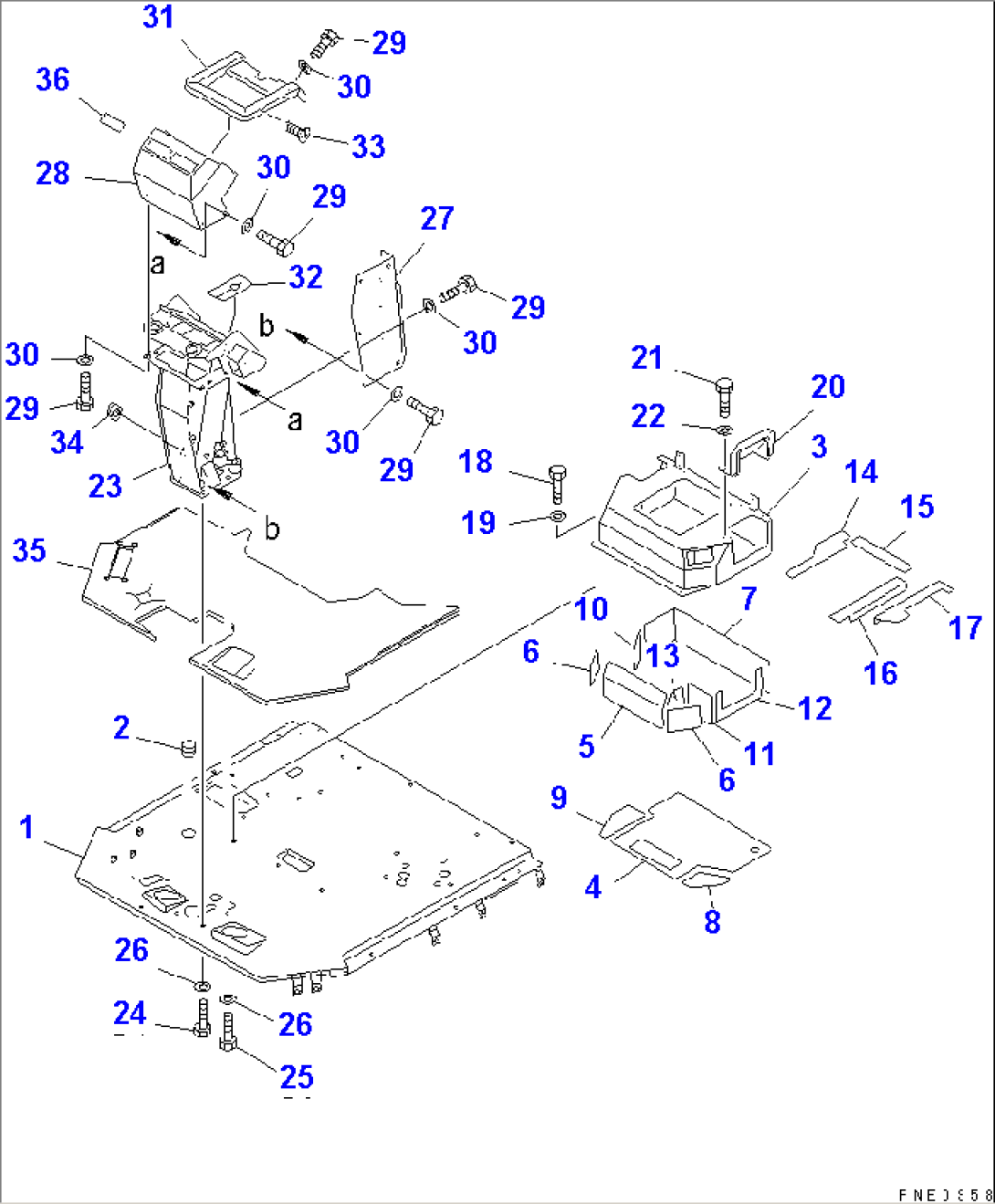

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-U94-1540 | FRAME,FLOOR | 10001-10864 | |
| 2 | 09415-03614 | CAP | 10001-@ | |
| 3 | 425-54-12610 | BRACKET ASS'Y | 10001-10864 | |
| 4 | 425-54-12630 | INSULATOR | 10001-10864 | |
| 5 | 425-54-12640 | INSULATOR | 10001-10864 | |
| 6 | 425-54-12650 | INSULATOR | 10001-10864 | |
| 7 | 425-54-12621 | INSULATOR | 10001-10864 | |
| 8 | 423-54-12710 | INSULATOR | 10001-10864 | |
| 9 | 423-54-12720 | INSULATOR | 10001-10864 | |
| 10 | 423-54-12730 | INSULATOR | 10001-10864 | |
| 11 | 423-54-12740 | INSULATOR | 10001-10864 | |
| 12 | 423-54-12750 | INSULATOR | 10001-10864 | |
| 13 | 423-54-12690 | INSULATOR | 10001-10864 | |
| 14 | 423-54-12810 | INSULATOR | 10001-10864 | |
| 15 | 423-54-12820 | INSULATOR | 10001-10864 | |
| 16 | 423-54-12780 | INSULATOR | 10001-10864 | |
| 17 | 423-54-12790 | INSULATOR | 10001-10864 | |
| 18 | 01010-51225 | BOLT | 10001-10864 | |
| 19 | 01643-31232 | WASHER | 10001-10864 | |
| 20 | 425-54-12570 | COVER | 10001-@ | |
| 21 | 01010-50825 | BOLT | 10001-@ | |
| 22 | 01643-30823 | WASHER | 10001-@ | |
| 23 | 421-54-12215 | SUPPORT | 10001-10864 | |
| 24 | 01010-51270 | BOLT | 10001-10864 | |
| 25 | 01010-51245 | BOLT | 10001-10864 | |
| 26 | 01643-31232 | WASHER | 10001-10864 | |
| 27 | 421-54-12874 | COVER | 10001-10864 | |
| 28 | 421-54-12813 | COVER | 10001-@ | |
| 29 | 01010-50816 | BOLT | 10001-10864 | |
| 30 | 01643-30823 | WASHER | 10001-10864 | |
| 31 | 425-54-12871 | COVER | 10142-@ | |
| \0\425-54-12870 | COVER | 10001-10141 | ||
| 32 | 421-54-12273 | INSULATOR | 10001-@ | |
| 33 | 01224-70616 | SCREW | 10445-10864 | |
| 424-54-12540 | SCREW | 10028-10444 | ||
| \0\01224-30616 | SCREW | 10001-10027 | ||
| 34 | 09415-02512 | CAP | 10001-@ | |
| 35 | 425-U94-1560 | MAT,FLOOR | 10001-10864 | |
| 36 | 424-09-12610 | COVER,(WITHOUT AIR CONDITIONER) | 10001-@ |
