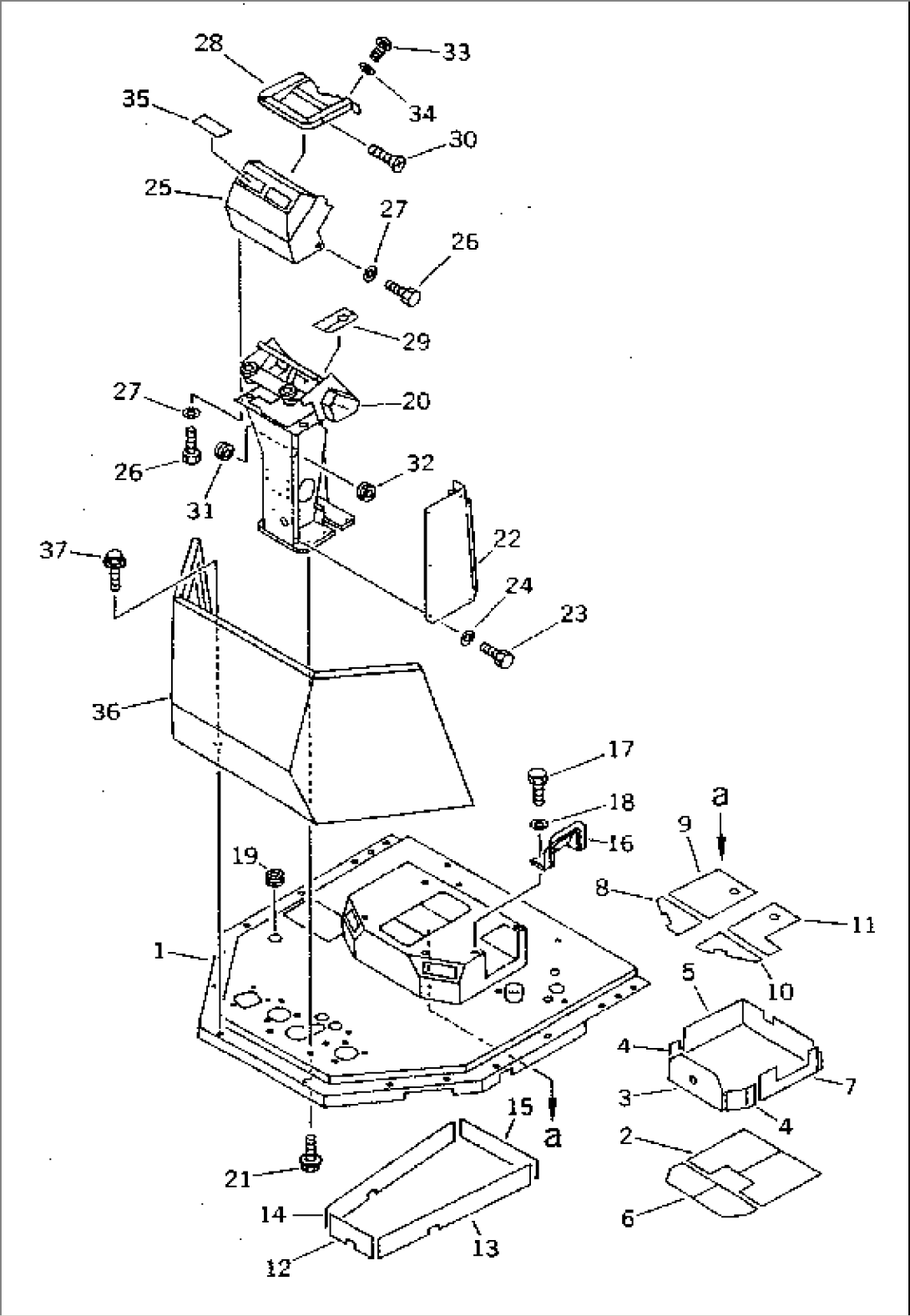

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-54-13810 | FRAME ASS'Y,FLOOR | 10865- | ||
| 1 | \6\ | FRAME,FLOOR | 10865- | |
| 2 | 421-54-18470 | INSULATOR | 10865- | |
| 3 | 421-54-18420 | INSULATOR | 10865- | |
| 4 | 421-54-18430 | INSULATOR | 10865- | |
| 5 | 421-54-18450 | INSULATOR | 10865- | |
| 6 | 421-54-18460 | INSULATOR | 10865- | |
| 7 | 421-54-18440 | INSULATOR | 10865- | |
| 8 | 421-54-18380 | INSULATOR | 10865- | |
| 9 | 421-54-18410 | INSULATOR | 10865- | |
| 10 | 421-54-18370 | INSULATOR | 10865- | |
| 11 | 421-54-18390 | INSULATOR | 10865- | |
| 12 | 421-54-18330 | INSULATOR | 10865- | |
| 13 | 421-54-18340 | INSULATOR | 10865- | |
| 14 | 421-54-18350 | INSULATOR | 10865- | |
| 15 | 421-54-18360 | INSULATOR | 10865- | |
| 16 | 425-54-12570 | COVER | 10865- | |
| 17 | 01010-50825 | BOLT | 10865- | |
| 18 | 01643-30823 | WASHER | 10865- | |
| 19 | 09415-03614 | CAP | 10865- | |
| 20 | 427-54-12782 | SUPPORT | 10865- | |
| 21 | 01435-01230 | BOLT | 10865- | |
| 22 | 421-54-12875 | COVER | 10865- | |
| 23 | 01010-50816 | BOLT | 10865- | |
| 24 | 01643-30823 | WASHER | 10865- | |
| 25 | 421-54-12813 | COVER | 10865- | |
| 26 | 01010-50816 | BOLT | 10865- | |
| 27 | 01643-30823 | WASHER | 10865- | |
| 28 | 425-54-12871 | COVER | 10865- | |
| 29 | 421-54-12273 | INSULATOR | 10865- | |
| 30 | 01224-70620 | SCREW | 10865- | |
| 31 | 09415-02512 | CAP | 10865- | |
| 32 | 09415-00706 | CAP | 10865- | |
| 33 | 01220-40816 | SCREW | 10865- | |
| 34 | 01643-30823 | WASHER | 10865- | |
| 35 | 424-09-12610 | COVER,(WITHOUT AIR CONDITIONER) | 10865- | |
| 36 | 421-54-16110 | GUARD | 10865- | |
| 37 | 01435-01245 | BOLT | 10865- |
