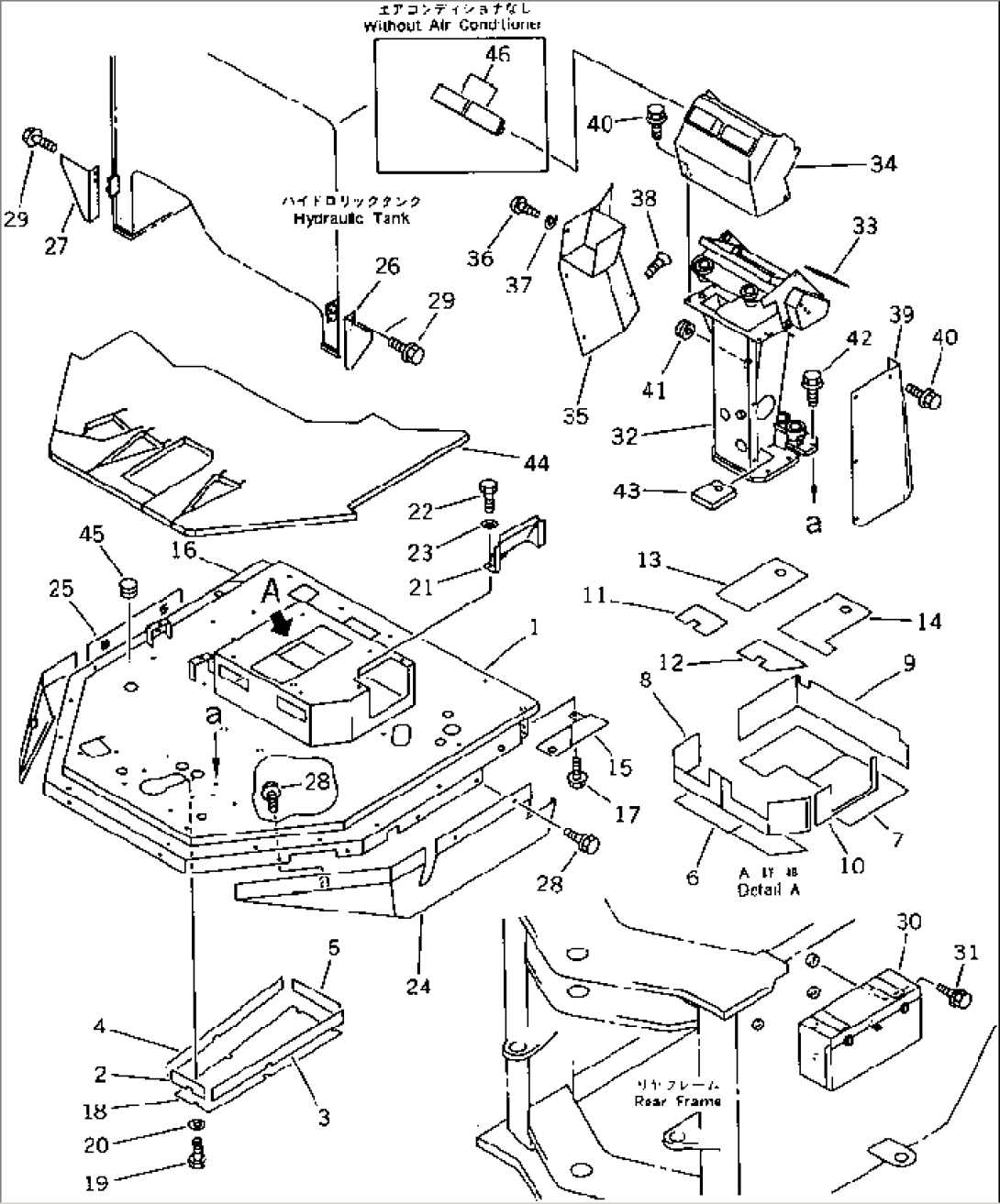

| Item | Part No. | Part Name | Qty | Serial No. |
| 419-54-13310 | FLOOR ASS'Y | 30001- | ||
| 1 | 419-54-12315 | FRAME,FLOOR | 30001- | |
| 2 | 421-54-18330 | INSULATOR | 30001- | |
| 3 | 421-54-18340 | INSULATOR | 30001- | |
| 4 | 421-54-18350 | INSULATOR | 30001- | |
| 5 | 421-54-18360 | INSULATOR | 30001- | |
| 6 | 419-54-13320 | INSULATOR | 30001- | |
| 7 | 419-54-13330 | INSULATOR | 30001- | |
| 8 | 419-54-13340 | INSULATOR | 30001- | |
| 9 | 419-54-13350 | INSULATOR | 30001- | |
| 10 | 419-54-13360 | INSULATOR | 30001- | |
| 11 | 419-54-13370 | INSULATOR | 30001- | |
| 12 | 419-54-13380 | INSULATOR | 30001- | |
| 13 | 419-54-13390 | INSULATOR | 30001- | |
| 14 | 419-54-13410 | INSULATOR | 30001- | |
| 15 | 419-54-13250 | COVER,L.H. | 30001- | |
| 16 | 419-54-13260 | COVER,R.H. | 30001- | |
| 17 | 01435-01220 | BOLT | 30001- | |
| 18 | 421-54-18480 | COVER | 30001- | |
| 19 | 01010-50816 | BOLT | 10001- | |
| 20 | 01643-30823 | WASHER | 10001- | |
| 21 | 425-54-12570 | COVER | 30001- | |
| 22 | 01010-50825 | BOLT | 30001- | |
| 23 | 01643-30823 | WASHER | 30001- | |
| 24 | 419-54-13542 | COVER,L.H. | 30157- | |
| \0\419-54-13541 | COVER,L.H. | 30057-30156 | ||
| \0\419-54-13540 | COVER,L.H. | 30001-30056 | ||
| 25 | 419-54-13552 | COVER,R.H. | 30157- | |
| \0\419-54-13551 | COVER,R.H. | 30057-30156 | ||
| \0\419-54-13550 | COVER,R.H. | 30001-30056 | ||
| 26 | 419-54-13510 | COVER,L.H. | 30001- | |
| 27 | 419-54-13520 | COVER,R.H. | 30001- | |
| 28 | 01435-01220 | BOLT | 30001- | |
| 29 | 01435-00814 | BOLT | 30001- | |
| 30 | 416-54-14132 | BOX,TOOL | 30001- | |
| 31 | 01435-01220 | BOLT | 30001- | |
| 32 | 421-54-12217 | SUPPORT | 30001- | |
| 33 | 421-54-12273 | INSULATOR | 30001- | |
| 34 | 421-54-12813 | COVER | 30001- | |
| 35 | 421-54-12871 | COVER | 30001- | |
| 36 | 01220-40816 | SCREW | 30001- | |
| 37 | 01643-30823 | WASHER | 30001- | |
| 38 | 01224-70620 | SCREW | 30001- | |
| 39 | 421-54-12875 | COVER | 30001- | |
| 40 | 01435-00816 | BOLT | 30001- | |
| 41 | 09415-02512 | CAP | 30001- | |
| 42 | 01435-01230 | BOLT | 30001- | |
| 43 | 419-54-12481 | SEAL | 30001- | |
| 44 | 419-54-12234 | MAT | 30001- | |
| 45 | 09415-03614 | CAP | 30001- | |
| 46 | 424-09-12610 | COVER,(WITHOUT AIR CONDITIONER) | 10001- |
