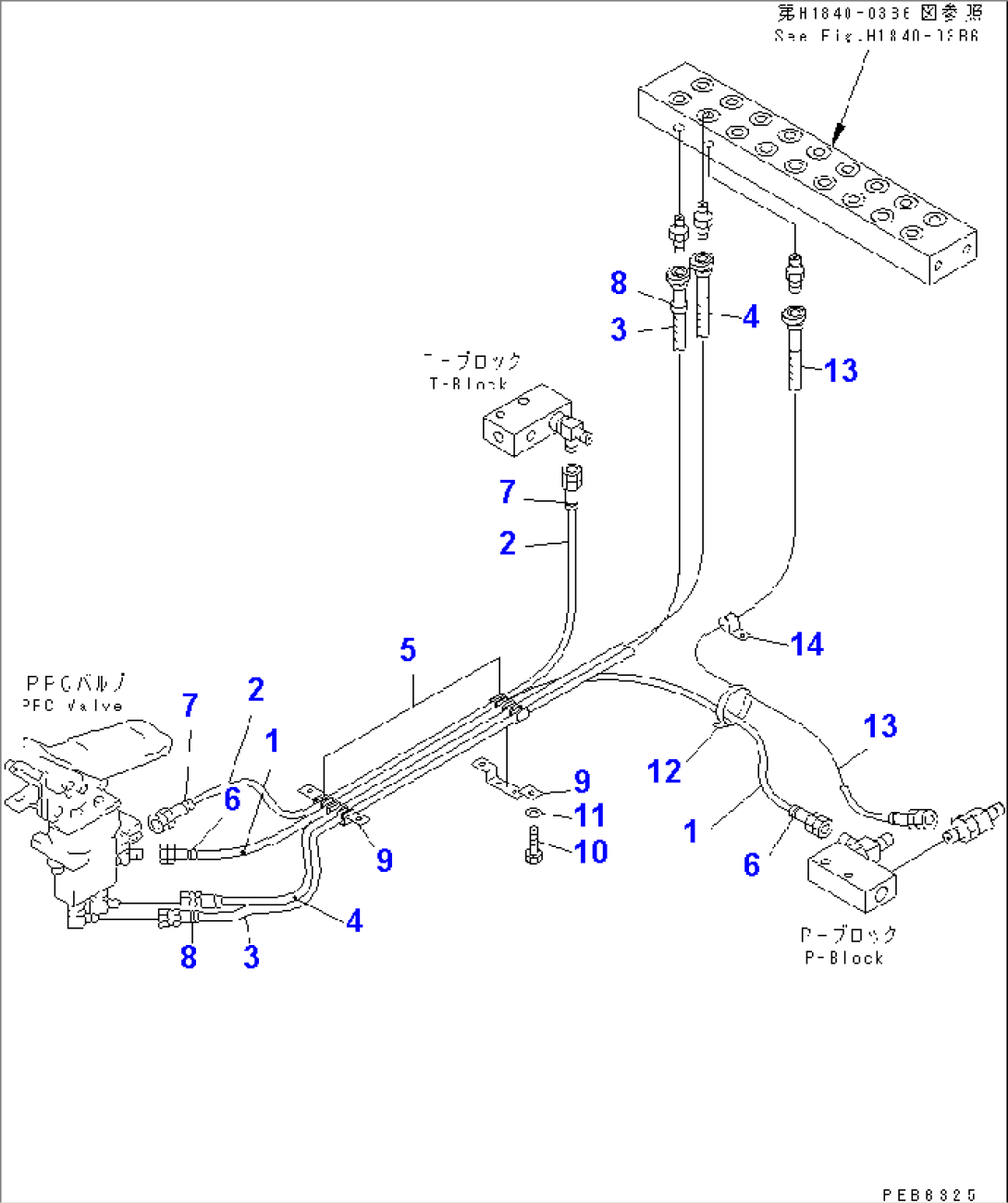

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 203-62-52350 | HOSE¤ 1200MM | 10001-10200 | |
| 2 | 203-62-52340 | HOSE¤ 1000MM | 10001-10200 | |
| 3 | 20Y-62-23411 | HOSE¤ 1950MM | 10001-10200 | |
| 4 | 20Y-62-23571 | HOSE¤ 1900MM | 10001-10200 | |
| 5 | 20Y-62-22170 | CLAMP | 10001-10200 | |
| 6 | 20Y-62-22790 | BAND¤ RED | 10001-@ | |
| 7 | 20Y-62-22810 | BAND¤ YELLOW | 10001-@ | |
| 8 | 20Y-62-22820 | BAND¤ BLUE | 10001-@ | |
| 9 | 20Y-62-22180 | CLAMP | 10001-10200 | |
| 10 | 01010-81016 | BOLT | 10001-10200 | |
| 11 | 01643-31032 | WASHER | 10001-10200 | |
| 12 | 08034-00536 | BAND | 10001-@ | |
| 13 | 21N-62-35610 | HOSE | 10001-10200 | |
| 14 | 08036-01414 | CLIP | 10015-10200 | |
| 08036-01414 | CLIP | 10001-10014 |
