| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08074-40000 | Switch, Safety | 1001- | |
| 2 | 236-06-23230 | Nut | 1001- | |
| 3 | 233-45-11250 | Plate | 1001- | |
| 4 | 01010-80616 | Bolt | 1001- | |
| 5 | 01643-30623 | Washer | 1001- | |
| 6 | 01643-30623 | Washer | 1001- | |
| 7 | (23A-45-11411) | Box | - |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gd663a 2 s/n 1001 up
- Operator's compartment and control system
- Floor frame, back up lamp (#1001 )
Поиск по каталогу

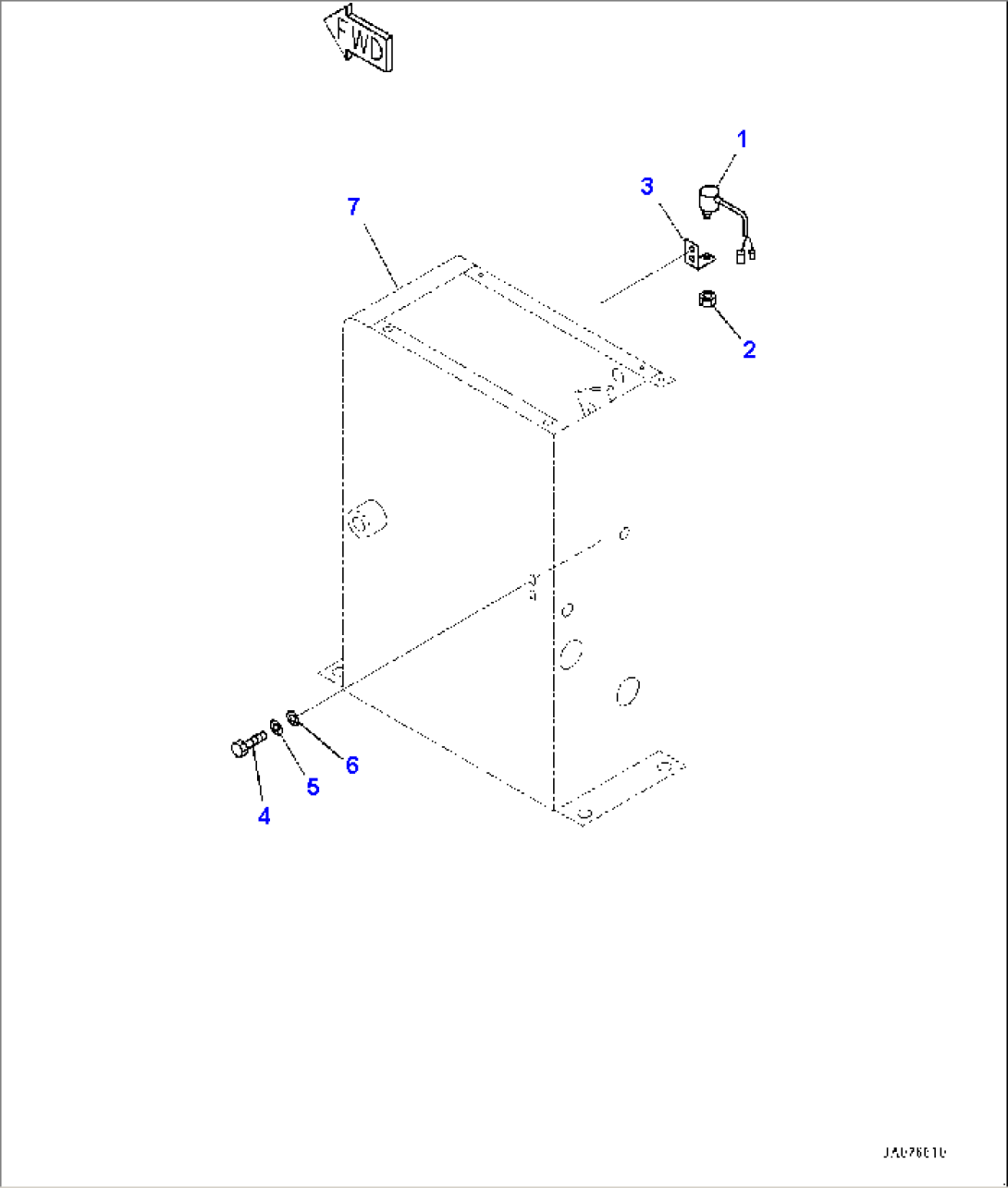

Floor Frame, Back-up Lamp (#1001-)
