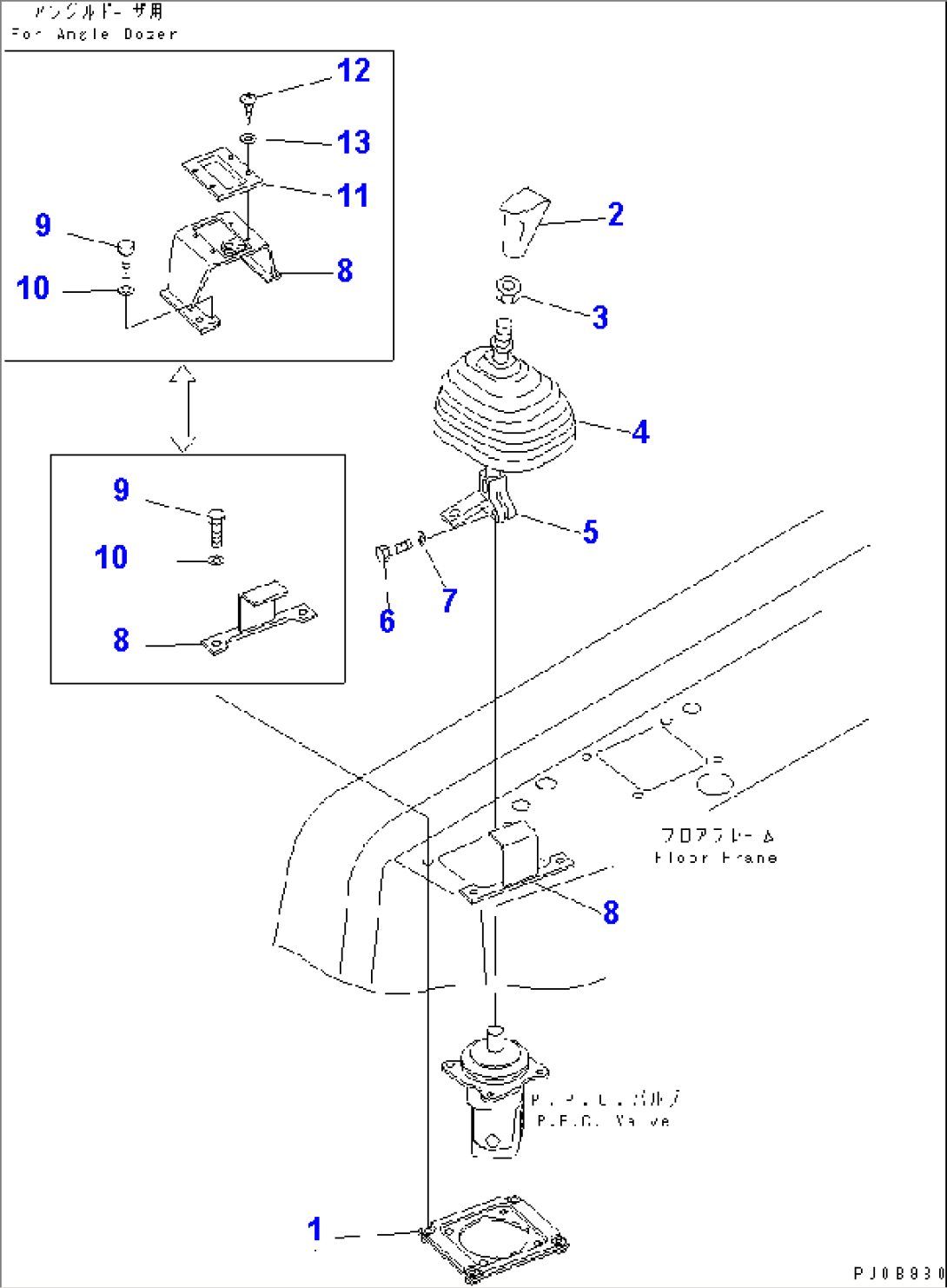

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-78-11133 | PLATE | 3034-4000 | |
| 14X-78-11280 | PLATE,(WITHOUT CAB) | 3148-4000 | ||
| 14X-78-11133 | PLATE,(WITHOUT CAB) | 3034-3147 | ||
| 2 | 14X-43-14170 | KNOB | 3034-@ | |
| 3 | 20T-43-71190 | NUT | 3034-@ | |
| 4 | 14X-43-11320 | BOOT | 3034-@ | |
| 5 | 14X-43-14493 | LEVER,R.H. | 3034-@ | |
| 6 | 01010-81030 | BOLT | 3034-@ | |
| 7 | 01643-31032 | WASHER | 3034-@ | |
| 8 | 14X-43-14150 | PLATE | 3034-@ | |
| 14X-78-11143 | GUIDE,(FOR ANGLE DOZER) | 3034-@ | ||
| 9 | 01010-80830 | BOLT | 3034-4000 | |
| 10 | 01643-30823 | WASHER | 3034-4000 | |
| 11 | 14X-78-11270 | PLATE,(FOR ANGLE DOZER) | 3034-@ | |
| 12 | 01370-00512 | SCREW,(FOR ANGLE DOZER) | 3034-@ | |
| 13 | 01641-20508 | WASHER,(FOR ANGLE DOZER) | 3034-@ |
