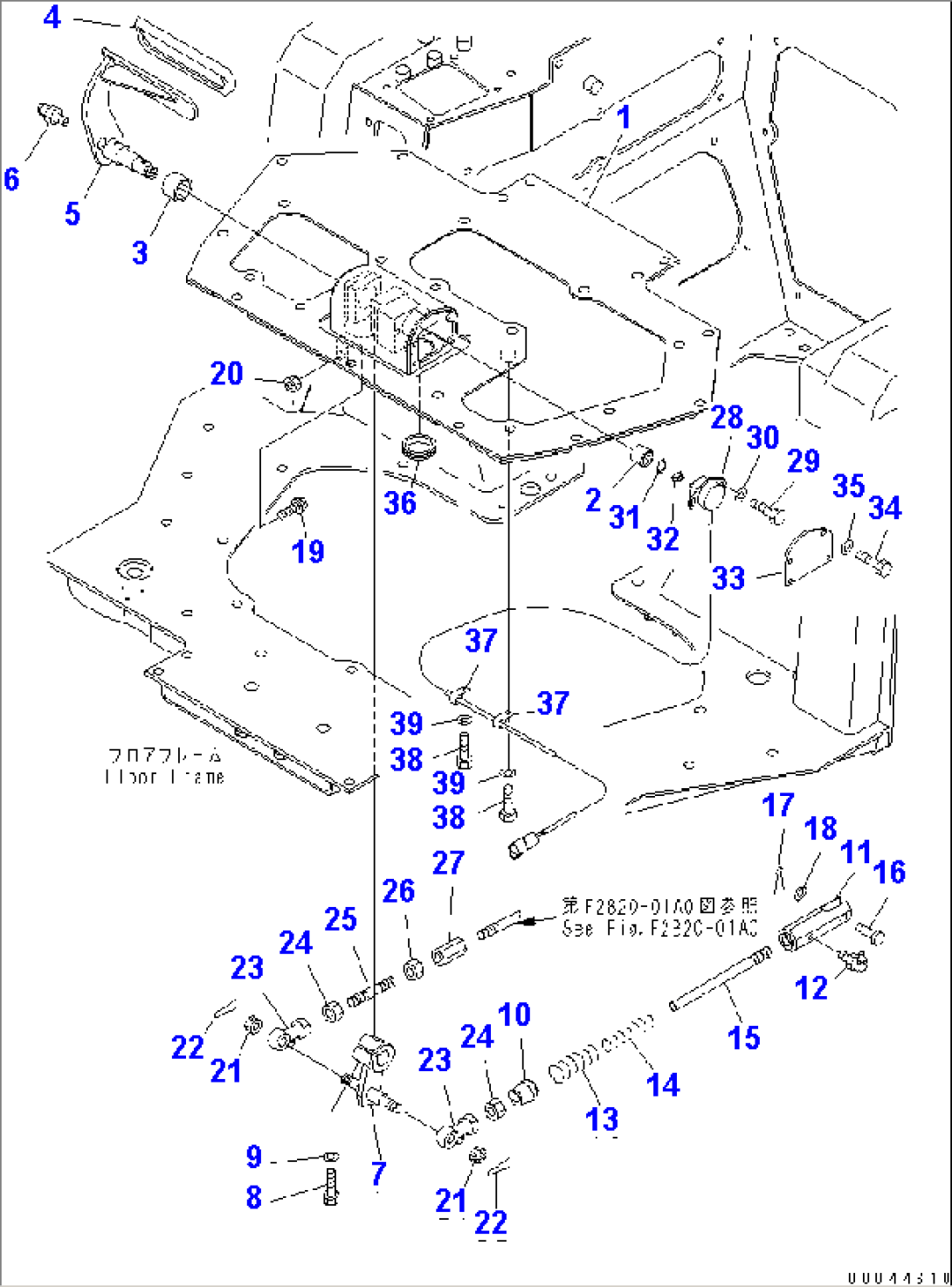

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14Z-43-24512 | FLOOR | 71747- | |
| 1 | 14Z-43-24511 | FLOOR | 70900-71746 | |
| 1 | 134-43-72112 | FLOOR | 69001-70899 | |
| 2 | 06124-02020 | BEARING | 69001- | |
| 3 | 06124-03020 | BEARING | 69001- | |
| 4 | 14X-43-12110 | PEDAL CAP | 69001- | |
| 5 | 134-43-72131 | PEDAL | 69001- | |
| 6 | 07020-00000 | FITTING | 69001- | |
| 7 | 134-43-72460 | LEVER | 69001- | |
| 8 | 01010-81245 | BOLT | 69001- | |
| 9 | 01643-51232 | WASHER | 69001- | |
| 10 | 134-43-72490 | HOLDER | 69001- | |
| 11 | 14X-43-32210 | YOKE | 69001- | |
| 12 | 07020-00900 | FITTING,GREASE | 69001- | |
| 13 | 134-43-72590 | SPRING | 69001- | |
| 14 | 14X-43-32220 | SPRING | 69001- | |
| 15 | 14X-43-32230 | ROD | 69001- | |
| 16 | 04205-11442 | PIN | 69001- | |
| 17 | 04050-13022 | PIN | 69001- | |
| 18 | 01641-21423 | WASHER | 69001- | |
| 19 | 09311-41237 | BUMPER | 69001- | |
| 20 | 01580-11210 | NUT | 69001- | |
| 21 | 01593-31411 | NUT | 69001- | |
| 22 | 04050-13022 | PIN | 69001- | |
| 23 | 04250-81474 | END | 69001- | |
| 24 | 01582-11411 | NUT | 69001- | |
| 25 | 14X-43-12410 | ROD | 69001- | |
| 26 | 01508-41408 | NUT | 69001- | |
| 27 | 17A-43-24160 | JOINT | 69001- | |
| 28 | 7861-93-4131 | SENSOR,BRAKE PEDAL | 71750- | |
| 28 | \0\7861-93-4130 | SENSOR,BRAKE PEDAL | 69001-71749 | |
| 29 | 01010-80620 | BOLT | 69001- | |
| 30 | 01643-30623 | WASHER | 69001- | |
| 31 | 04064-01610 | RING | 69001- | |
| 32 | 142-43-13180 | SPRING | 69001- | |
| 33 | 17A-43-14140 | PLATE | 69001- | |
| 34 | 01010-80620 | BOLT | 69001- | |
| 35 | 01643-30623 | WASHER | 69001- | |
| 36 | 08037-03614 | GROMMET | 69001- | |
| 37 | 04434-50610 | CLIP | 69001- | |
| 38 | 01010-81016 | BOLT | 69001- | |
| 39 | 01643-31032 | WASHER | 69001- |
