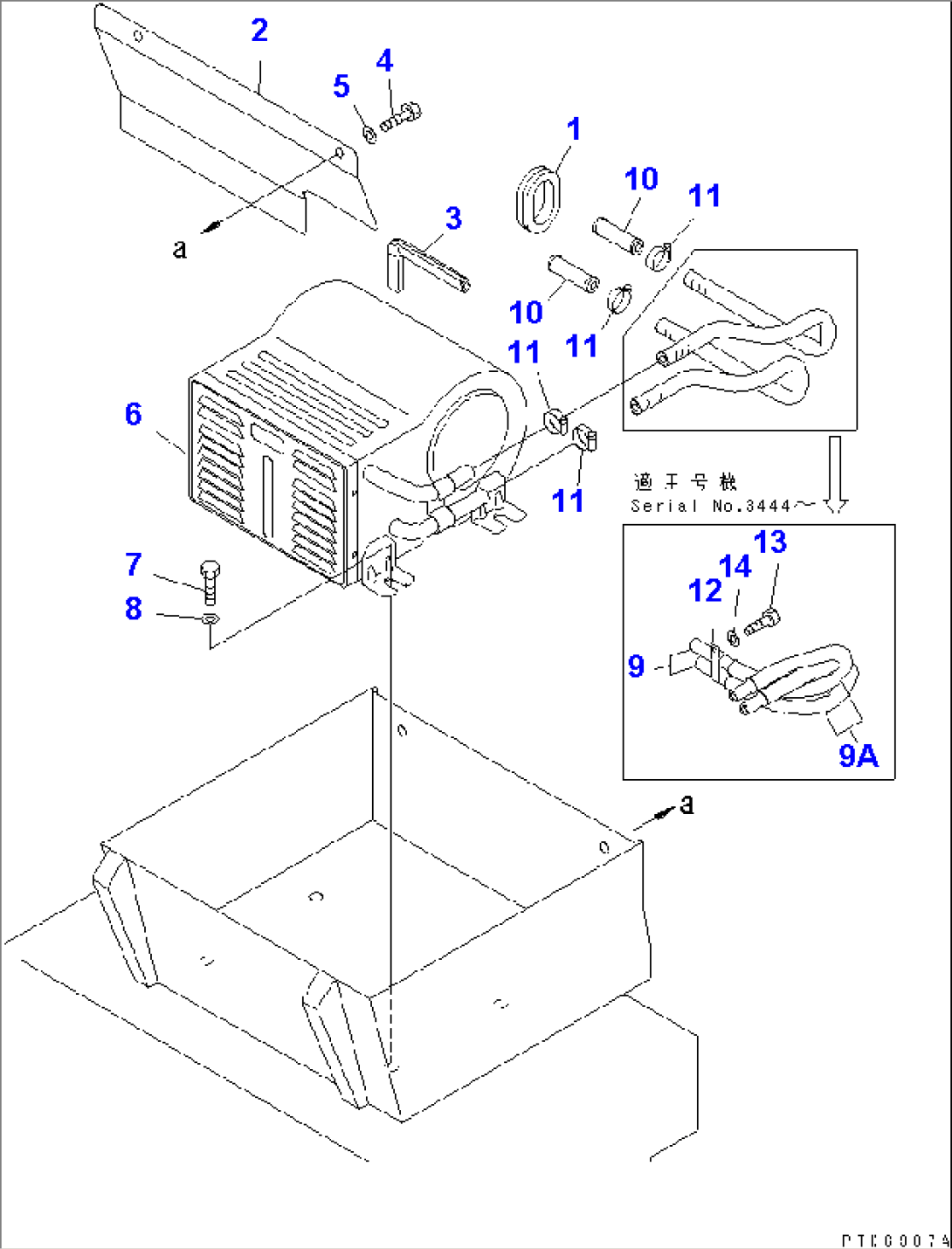

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 120-06-24110 | GROMMET | 3444- | |
| 21Y-54-13230 | GROMMET | 1001-3443 | ||
| 2 | 21W-06-21170 | PLATE | 1001- | |
| 3 | 21W-06-21180 | SEAL | 1001- | |
| 4 | 01010-80820 | BOLT | 3444- | |
| 01010-80816 | BOLT | 1001-3443 | ||
| 5 | 01643-30823 | WASHER | 1001- | |
| 6 | (205-977-7110) | HEATER UNIT,(SEE FIG.K1110-51A0) | 1001- | |
| 7 | 01010-81014 | BOLT | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | 09483-10405 | HOSE | 3444- | |
| 09483-10403 | HOSE | 1001-3443 | ||
| 9A | 203-62-58650 | COVER | 3444- | |
| 10 | 09484-00450 | CONNECTOR | 1001- | |
| 11 | 09480-10100 | CLAMP | 1001- | |
| 12 | 176-911-4170 | CLIP | 3444- | |
| 13 | 01010-81020 | BOLT | 3444- | |
| 14 | 01643-31032 | WASHER | 3444- |
