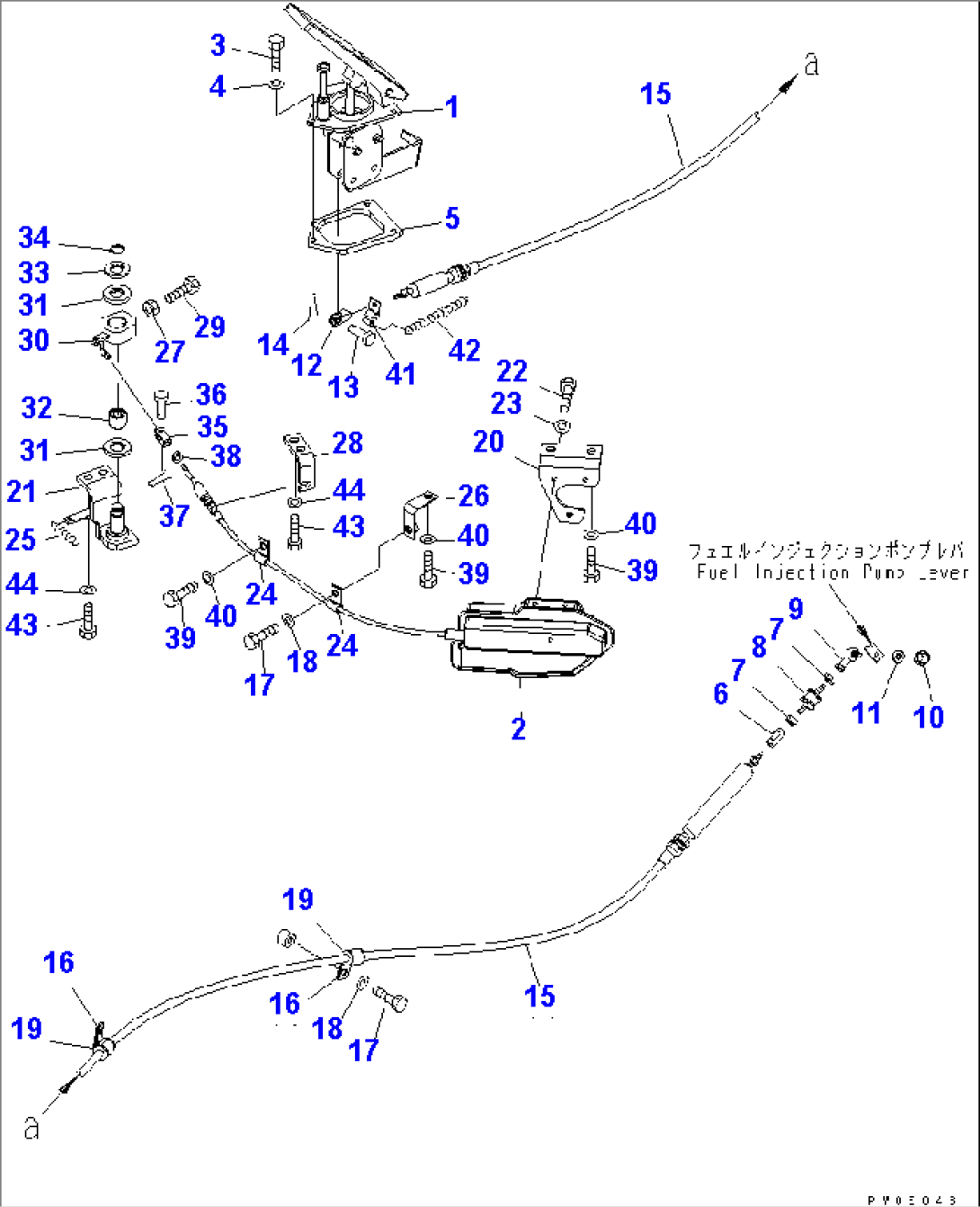

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (417-43-21110) | PEDAL ASS'Y,ENGINE CONTROL | 60001- | |
| 2 | 600-815-7670 | MOTOR | 60001- | |
| 3 | 01010-80625 | BOLT | 60001- | |
| 4 | 01643-30623 | WASHER | 60001- | |
| 5 | 423-43-31510 | PLATE | 60001- | |
| 6 | 421-43-11330 | ROD | 60001- | |
| 7 | 01580-10605 | NUT | 60001- | |
| 8 | 424-43-11240 | CUSHION | 60001- | |
| 9 | 04256-40615 | JOINT | 60001- | |
| 10 | 01596-00606 | NUT | 60001- | |
| 11 | 01643-30623 | WASHER | 60001- | |
| 12 | 04210-20624 | YOKE | 60001- | |
| 13 | 04205-10620 | PIN | 60001- | |
| 14 | 04050-11612 | PIN,COTTER | 60001- | |
| 15 | 418-V88-1730 | CABLE | 60001- | |
| 16 | 04434-51710 | CLIP | 60001- | |
| 17 | 01010-81020 | BOLT | 60001- | |
| 18 | 01643-31032 | WASHER | 60001- | |
| 19 | 07095-20211 | CUSHION | 60001- | |
| 20 | 423-43-31270 | BRACKET | 60001- | |
| 21 | 423-43-31242 | BRACKET | 60001- | |
| 22 | 01010-80616 | BOLT | 60001- | |
| 23 | 01643-30623 | WASHER | 60001- | |
| 24 | 04434-50610 | CLIP | 60001- | |
| 25 | 42A-54-11250 | SPRING | 60001- | |
| 26 | 427-43-11370 | BRACKET | 60001- | |
| 27 | 01580-10806 | NUT | 60001- | |
| 28 | 423-43-31260 | SUPPORT | 60001- | |
| 29 | 01016-50825 | BOLT | 60001- | |
| 30 | 423-43-31252 | LEVER | 60001- | |
| 31 | 01643-32060 | WASHER | 60001- | |
| 32 | 06124-02020 | BEARING | 60001- | |
| 33 | 01643-31845 | WASHER | 60001- | |
| 34 | 04064-01812 | RING | 60001- | |
| 35 | 04210-20624 | YOKE | 60001- | |
| 36 | 04205-10618 | PIN | 60001- | |
| 37 | 04052-10633 | PIN | 60001- | |
| 38 | 01580-10605 | NUT | 60001- | |
| 39 | 01010-81020 | BOLT | 60001- | |
| 40 | 01643-31032 | WASHER | 60001- | |
| 41 | 425-43-11420 | PLATE | 60001- | |
| 42 | 415-43-11241 | SPRING | 60001- | |
| 43 | 01010-81025 | BOLT | 60001- | |
| 44 | 01643-31032 | WASHER | 60001- |
