| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2A1-54-13114 | FLOOR FRAME, ASSEMBLY | F30325- | |
| 2 | 2A1-43-11320 | SUPPORT PPC VALVE | F30325- | |
| 3 | 06124-01616 | BEARING, NEEDLE | F30325- | |
| 4 | 01010-D1025 | BOLT | F30325- | |
| 5 | 01643-11032 | WASHER | F30325- | |
| 6 | 2A1-43-11330 | SEAL | F30325- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc22mr 3 s/n f30001 up
- Frame and its related parts
- Floor frame, floor, base
Поиск по каталогу

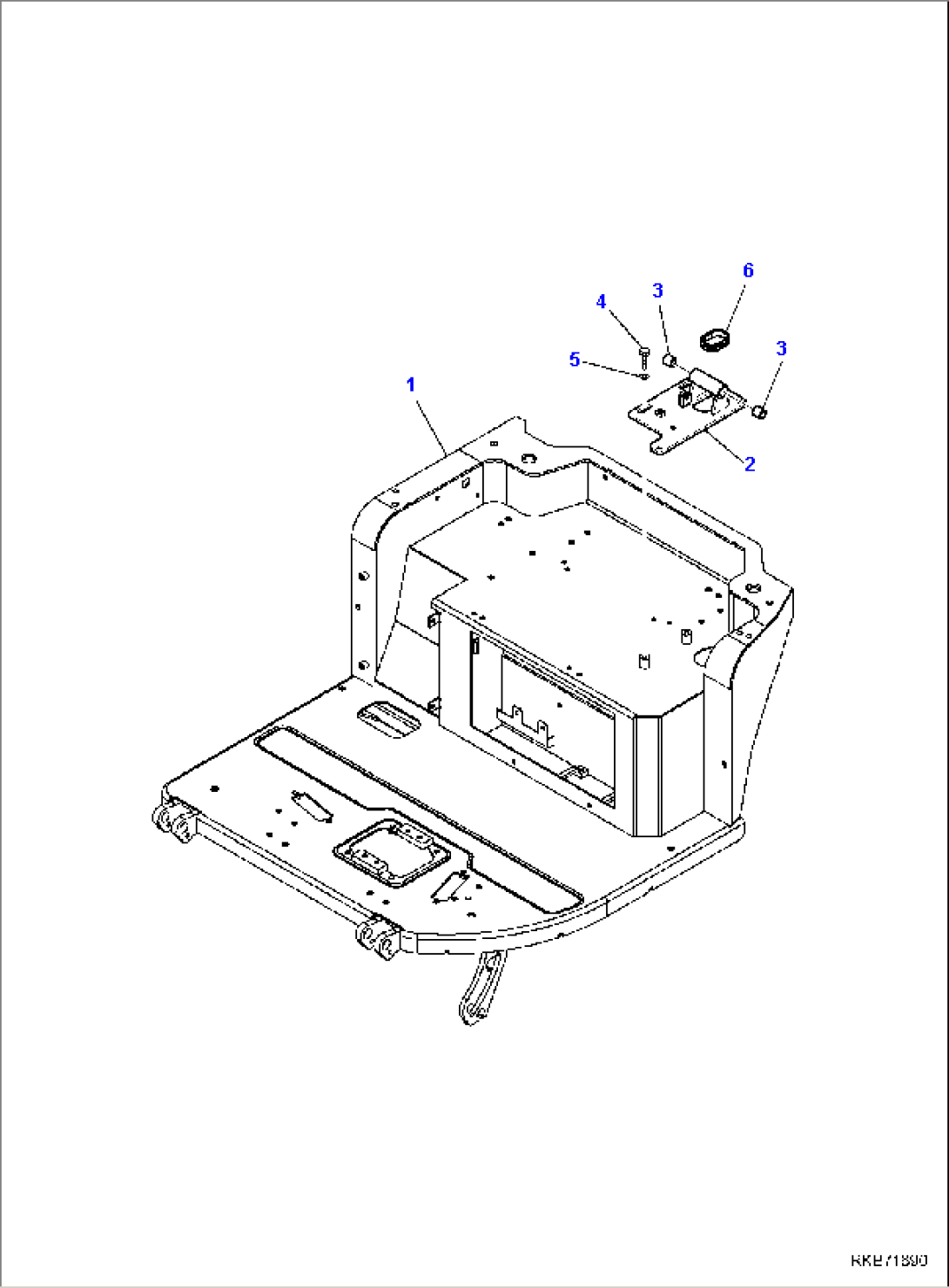

FLOOR FRAME, FLOOR, BASE
