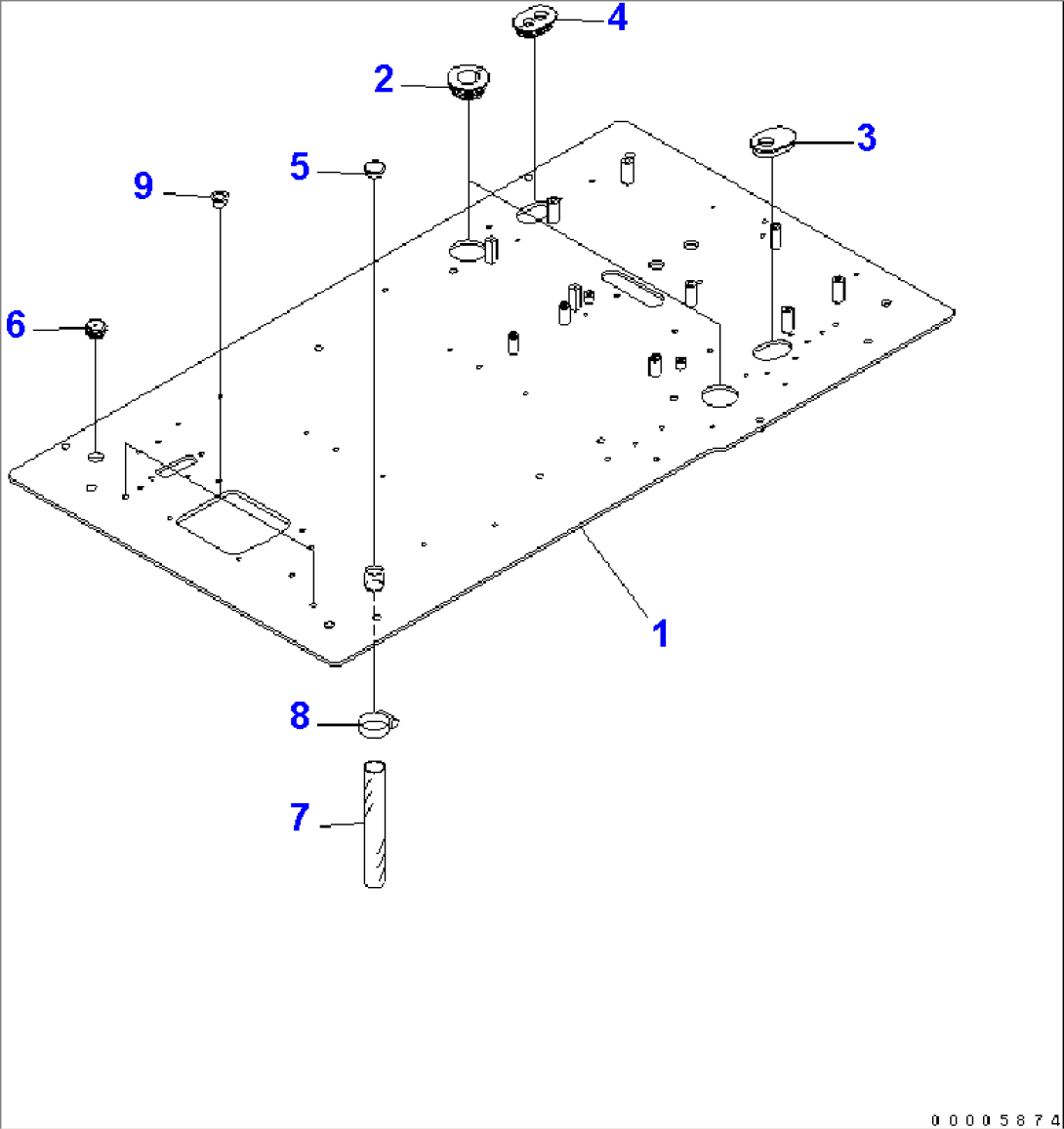

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-53-13241 | FLOOR FRAME | K40001- | |
| 2 | 207-54-71190 | GROMMET | K40001- | |
| 3 | 209-53-13250 | GROMMET | K40001- | |
| 4 | 209-53-13260 | GROMMET | K40001- | |
| 5 | 22U-54-25581 | GROMMET | K40001- | |
| 6 | 22U-54-25590 | GROMMET | K40001- | |
| 7 | 07286-03828 | HOSE | K40001- | |
| 8 | 07280-04726 | CLAMP | K40001- | |
| 9 | 07048-01310 | PLUG | K40001- |
