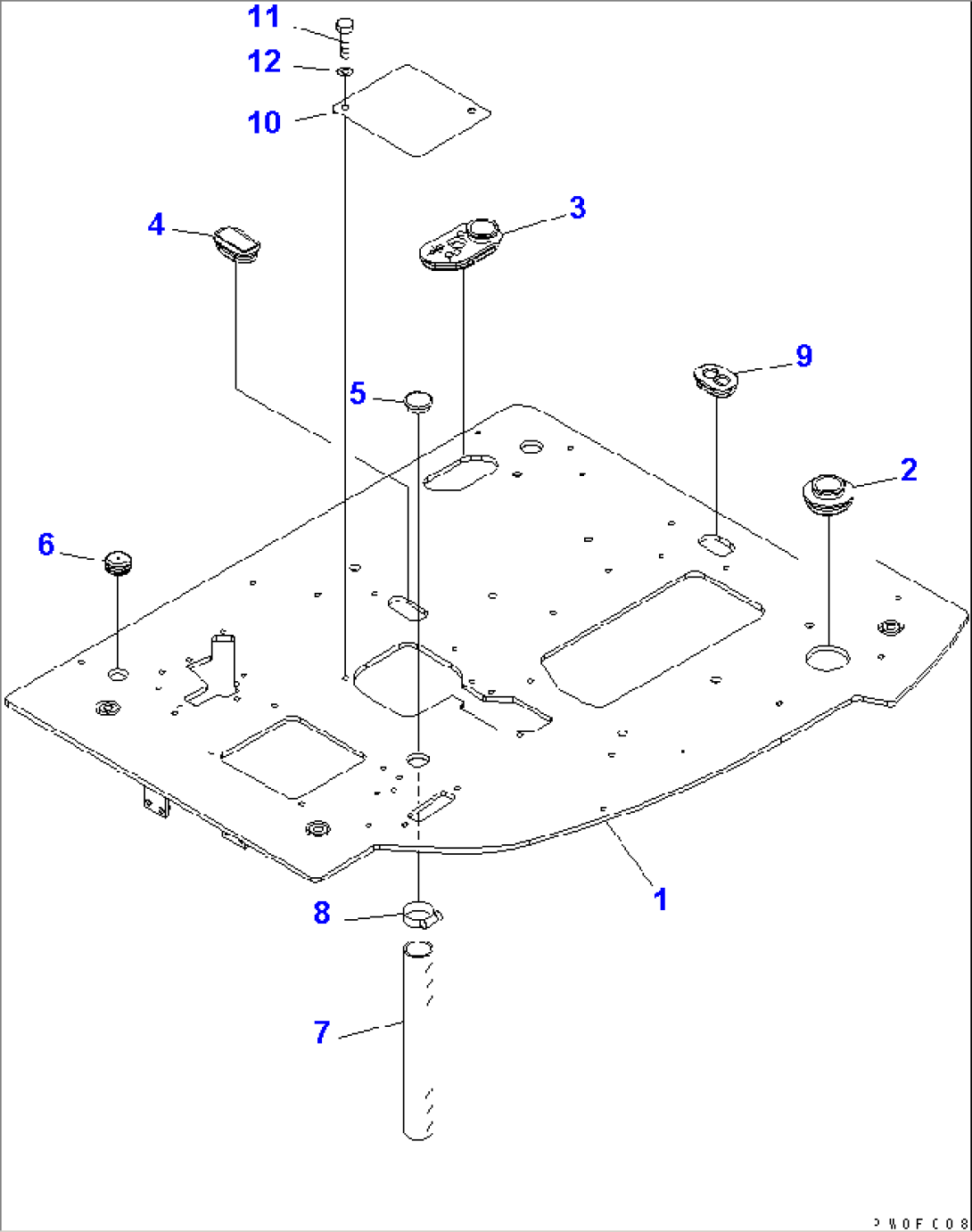

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21W-54-42113 | FLOOR FRAME | 23501- | |
| 21W-54-42112 | FLOOR FRAME | 22756-23500 | ||
| 21W-54-42111 | FLOOR FRAME | 22001-22755 | ||
| 2 | 21W-54-42291 | GROMMET | 22001- | |
| 3 | 21W-54-42171 | GROMMET | 22001- | |
| 4 | 21W-54-42650 | GROMMET | 22001- | |
| 5 | 22U-54-25581 | GROMMET | 22001- | |
| 6 | 22U-54-25590 | GROMMET | 22001- | |
| 7 | 07286-03835 | HOSE | 22001- | |
| 8 | 07280-04726 | CLAMP | 22001- | |
| 9 | 21W-54-42440 | GROMMET | 22001- | |
| 10 | 21W-54-42431 | PLATE | 22001- | |
| 11 | 01010-81020 | BOLT | 22001- | |
| 12 | 01643-31032 | WASHER | 22001- |
