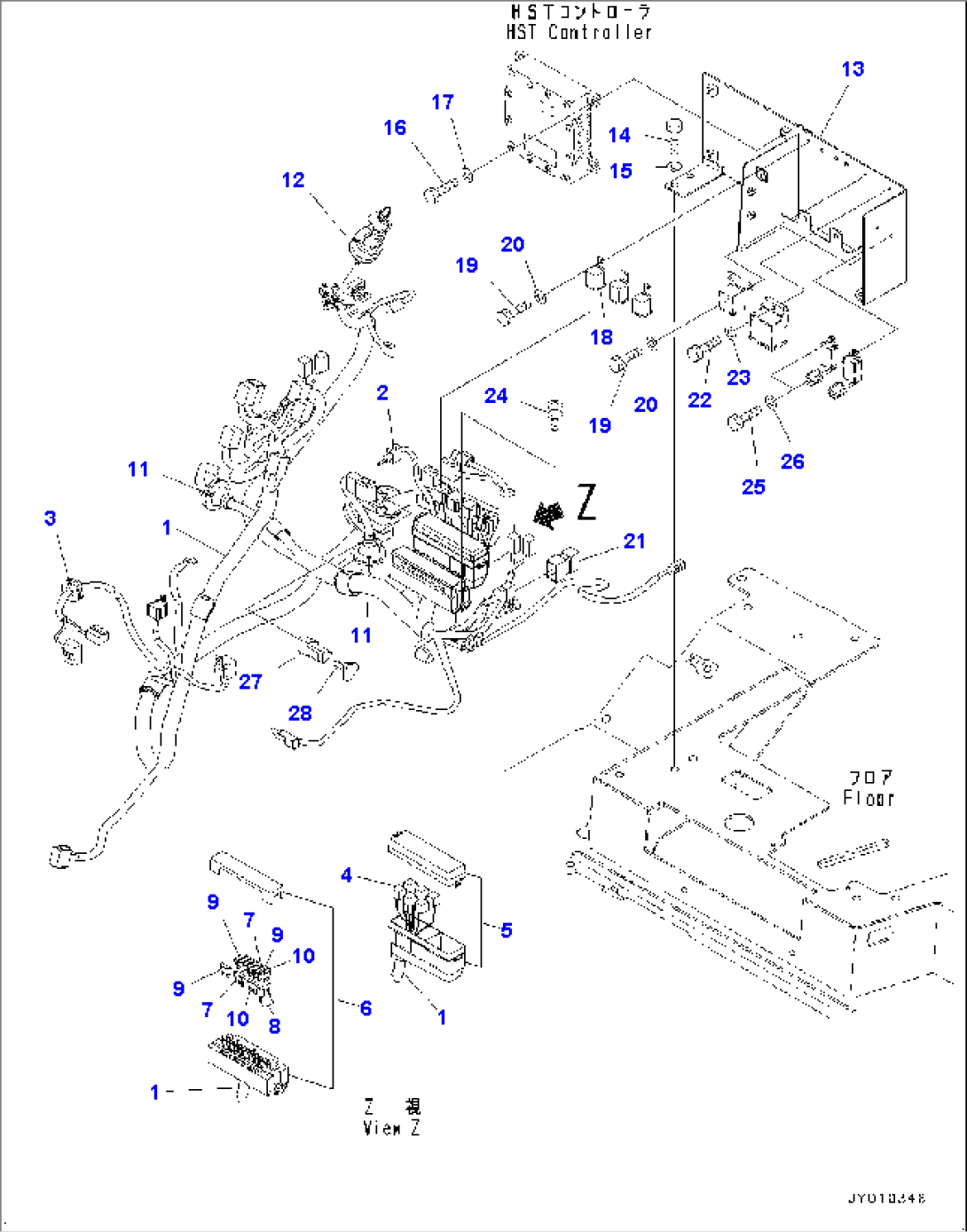

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-06-54158 | Wiring Harness | 66655- | |
| 1 | 42A-06-54157 | Wiring Harness | 62255-66654 | |
| 1 | 42A-06-54156 | Wiring Harness | 61421-62254 | |
| 1 | 42A-06-54155 | Wiring Harness | 60572-61420 | |
| 1 | 42A-06-54154 | Wiring Harness | 60001-60571 | |
| 2 | 20U-06-21260 | Switch, Mode Selector | 60001- | |
| 3 | 207-979-3180 | Grommet | 60001- | |
| 4 | 42A-06-53181 | Relay | 60001- | |
| 5 | 22M-06-24260 | Box, Relay | 60001- | |
| 6 | 08044-01500 | Box Assembly, Fuse | 60001- | |
| 7 | 08041-03000 | Fuse, 30Amp. | 60001- | |
| 8 | 08041-02000 | Fuse, 20Amp. | 60001- | |
| 9 | 08041-01000 | Fuse, 10Amp. | 60001- | |
| 10 | 08041-00500 | Fuse, 5Amp. | 60001- | |
| 11 | 08037-12036 | Grommet | 60001- | |
| 12 | 08086-20000 | Switch, Starting | 60001- | |
| 13 | 42A-06-53122 | Bracket | 60001- | |
| 14 | 01010-81025 | Bolt | 60001- | |
| 15 | 01643-31032 | Washer | 60001- | |
| 16 | 01010-80820 | Bolt | 60001- | |
| 17 | 01643-30823 | Washer | 60001- | |
| 18 | 363-06-31130 | Relay | 60001- | |
| 19 | 01010-80612 | Bolt | 61048- | |
| 19 | 01010-80612 | Bolt | 60001-61047 | |
| 20 | 01643-30623 | Washer | 61048- | |
| 20 | 01643-30623 | Washer | 60001-61047 | |
| 21 | 8233-06-3350 | Diode | 60001- | |
| 22 | 01010-80620 | Bolt | 60001- | |
| 23 | 01643-30623 | Washer | 60001- | |
| 24 | 01023-20620 | Screw | 60001- | |
| 25 | 01010-80816 | Bolt | 60001-61047 | |
| 26 | 01643-30823 | Washer | 60001-61047 | |
| 27 | 19M-06-31720 | Resistor | 60001- | |
| 28 | 19M-06-31730 | Connector | 60001- |
