| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-54-25120 | FOOT REST,FOOT¤ R.H. | B20001-@ | |
| 2 | 22U-54-25531 | PLATE | B20001-@ | |
| 3 | 01010-81025 | BOLT | B20001-@ | |
| 4 | 01643-31032 | WASHER | B20001-@ | |
| 5 | 01010-81020 | BOLT | B20001-@ | |
| 6 | 01643-31032 | WASHER | B20001-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc160lc 7 s/n b20001 up
- Operator's compartment and control system
- Floor frame (foot rest) (r.h.) (#b20001 b20199)
Поиск по каталогу

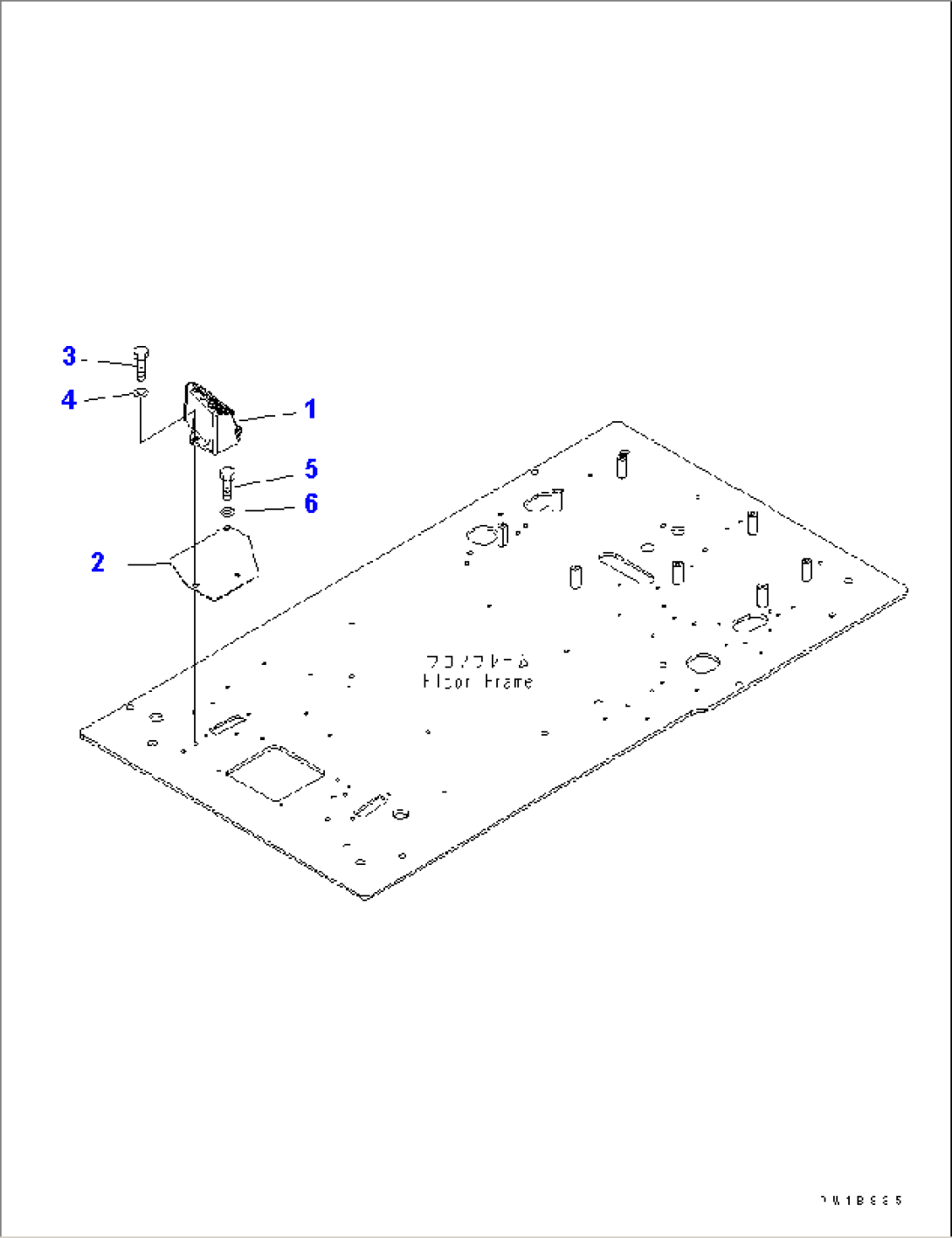

FLOOR FRAME (FOOT REST) (R.H.) (#B20001-B20199)
