| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 363-921-3140 | FRAME, FLOOR | 23001- | |
| 2 | 01435-01030 | BOLT | 23001- | |
| 3 | 01643-31032 | WASHER | 23001- | |
| 4 | 363-54-32170 | PLATE | 23001- | |
| 5 | 01435-01040 | BOLT | 23001- | |
| 6 | 363-54-32220 | PLUG | 23001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa50 3 s/n 23001 up (overseas version)
- Operator's compartment and control system
- Floor frame (for rops canopy)
Поиск по каталогу

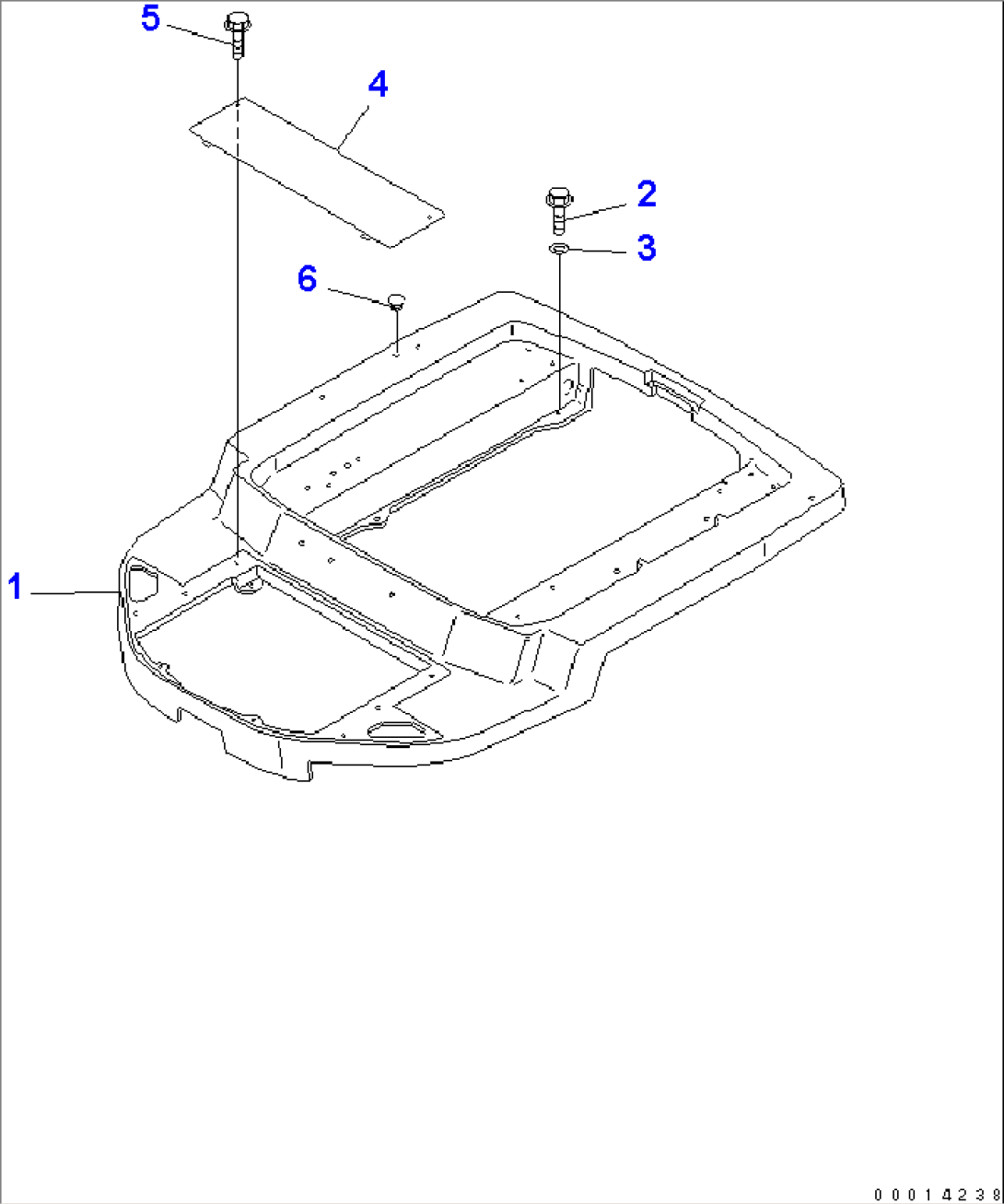

FLOOR FRAME (FOR ROPS CANOPY)
