| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22F-54-33111 | FLOOR | 30001- | |
| 2 | 22F-43-21340 | BASE | 30001- | |
| 3 | 06124-01616 | BEARING | 30001- | |
| 4 | 01010-D1025 | BOLT | 30001- | |
| 5 | 01643-71032 | WASHER | 30001- | |
| 6 | 22M-43-21250 | GROMMET | 30001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc30mr 3 s/n 30001 up (canopy spec.)
- Operator's compartment and control system
- Floor frame (frame and base) (canopy)
Поиск по каталогу

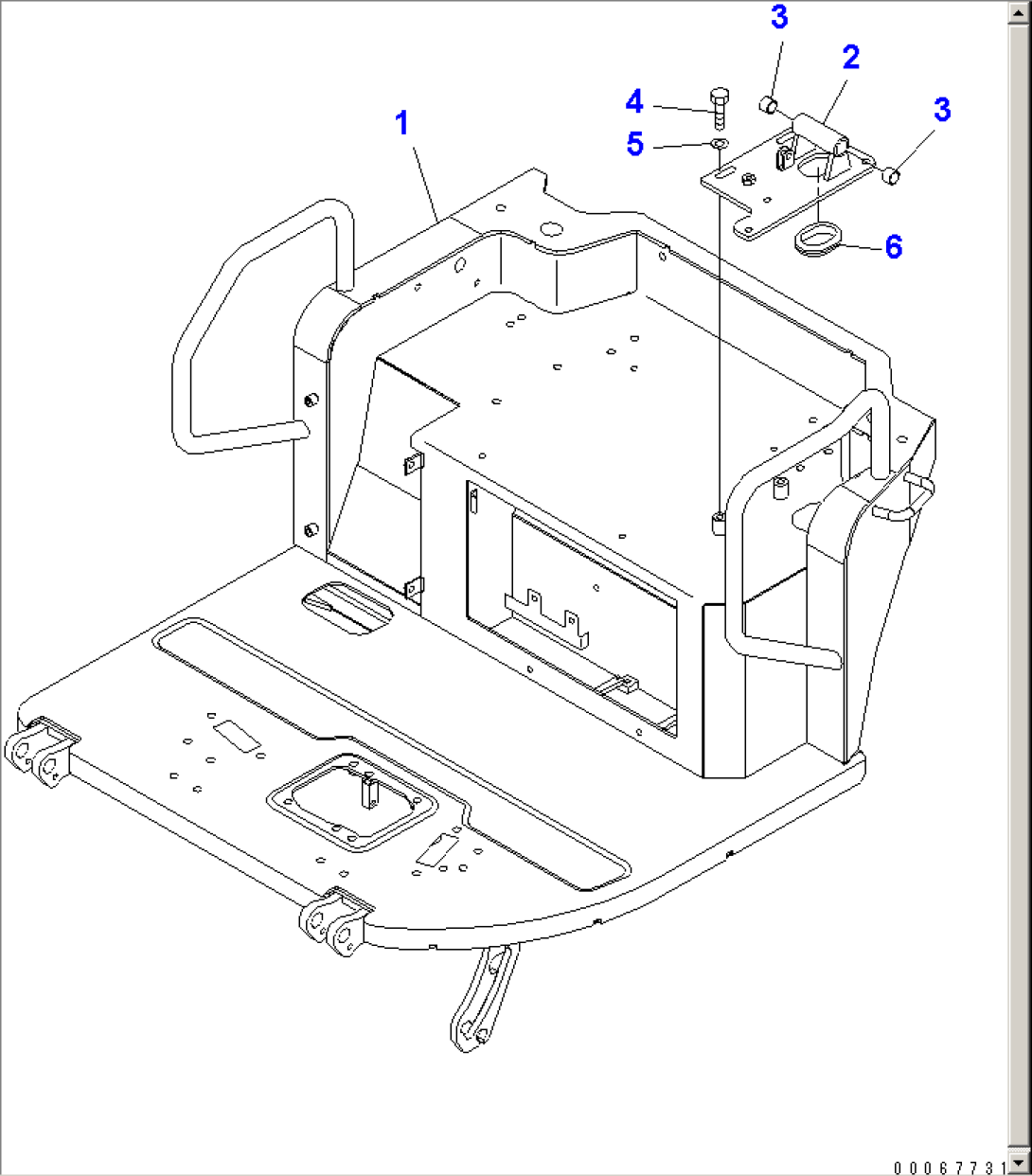

FLOOR FRAME (FRAME AND BASE) (CANOPY)
