| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22M-54-23115 | FRAME | 15367- | |
| 1 | 22M-54-23114 | FRAME | 15001-15366 | |
| 2 | 22M-43-21452 | BASE | 15001- | |
| 3 | 06124-01616 | BEARING | 15001- | |
| 4 | 01010-D1025 | BOLT | 15001- | |
| 5 | 01643-71032 | WASHER | 15001- | |
| 6 | 22M-43-21250 | GROMMET | 15001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc20mr 2 s/n 15001 up (canopy spec.)
- Operator's compartment and control system
- Floor frame (frame and base) (canopy)
Поиск по каталогу

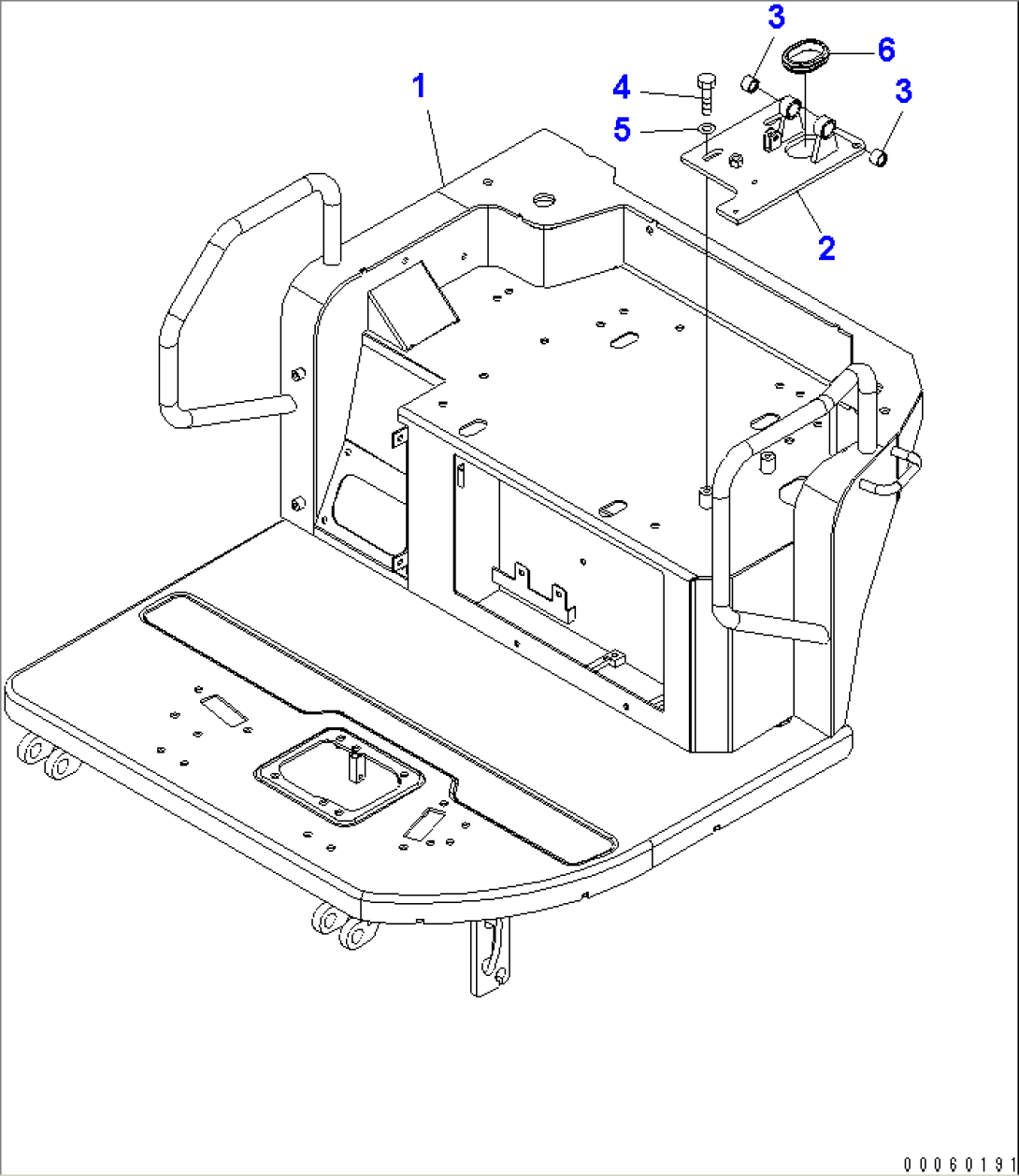

FLOOR FRAME (FRAME AND BASE) (CANOPY)
