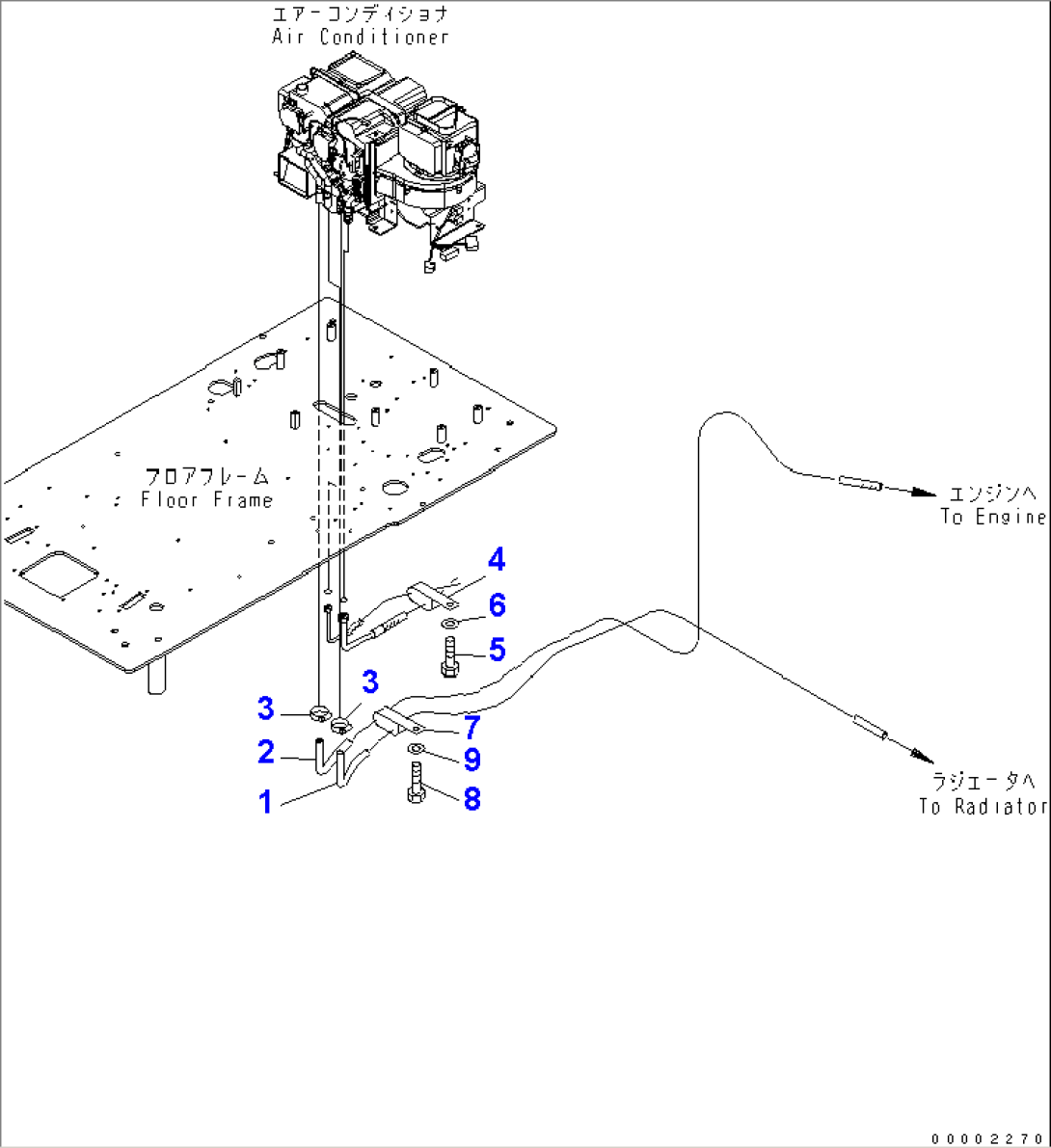

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 206-979-7110 | HOSE ASS'Y | 10001-10500 | |
| 2 | 20Y-979-6830 | HOSE | 10001-10500 | |
| 3 | 11Y-09-11160 | CLIP | 10001-10500 | |
| 4 | 141-06-11220 | CLIP | 10001-10500 | |
| 5 | 01010-81016 | BOLT | 10001-10500 | |
| 6 | 01643-31032 | WASHER | 10001-10500 | |
| 7 | 141-06-11220 | CLIP | 10001-@ | |
| 8 | 01010-81016 | BOLT | 10001-@ | |
| 9 | 01643-31032 | WASHER | 10001-@ |
