| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-54-13741 | CAP | 20001- | |
| 2 | 20Y-54-14430 | CUSHION | 20001- | |
| 3 | 07000-53025 | O-RING | 20001- | |
| 4 | 20Y-54-13751 | CAP | 20001- | |
| 5 | 20Y-54-13991 | CAP | 20001- | |
| 6 | 01010-51675 | BOLT | 20001- | |
| 7 | 01643-31645 | WASHER | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400 5d s/n 20001 up ( 50cent. spec.)
- Guard
- Floor frame mount (for long lever control)
Поиск по каталогу

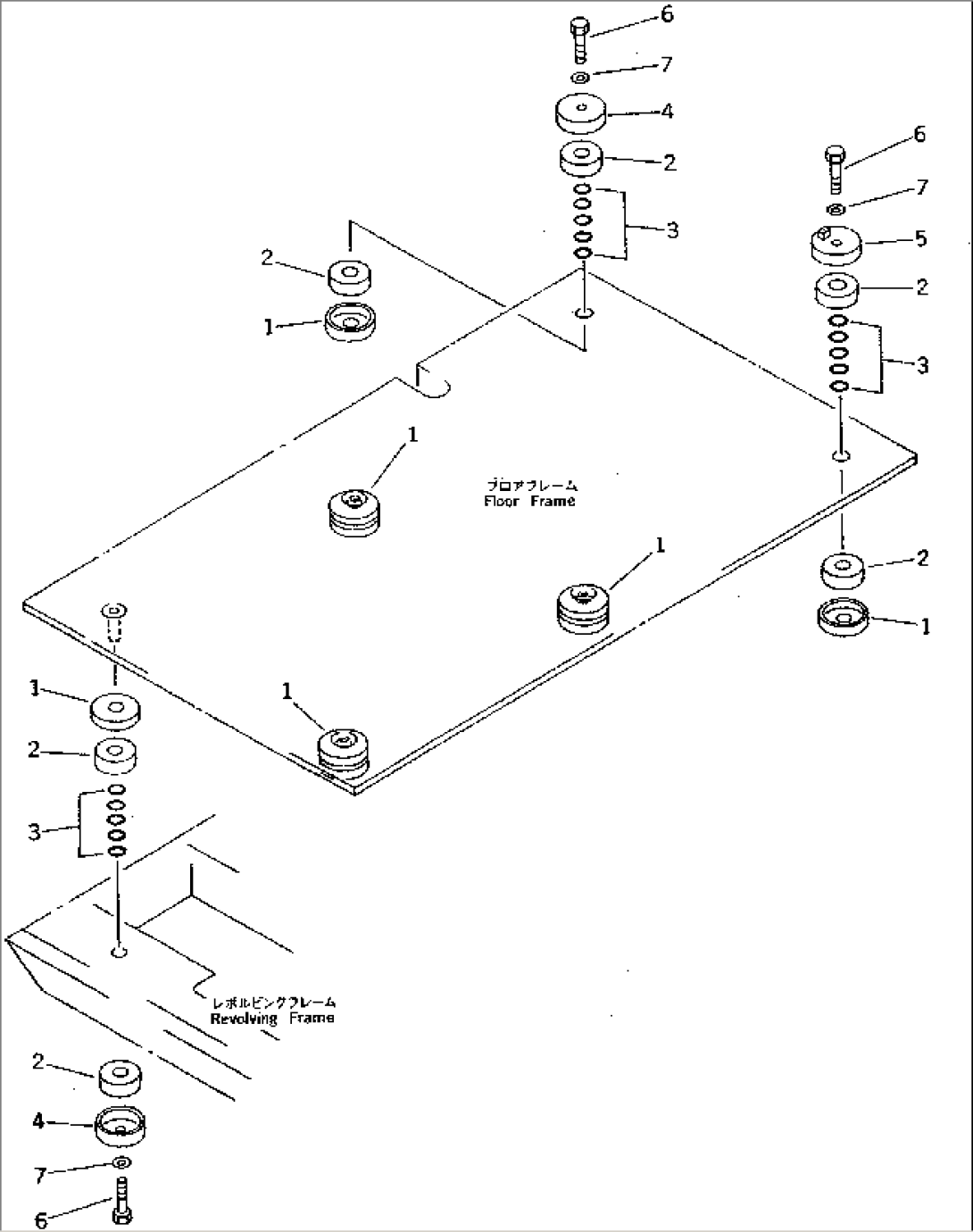

FLOOR FRAME MOUNT (FOR LONG LEVER CONTROL)
