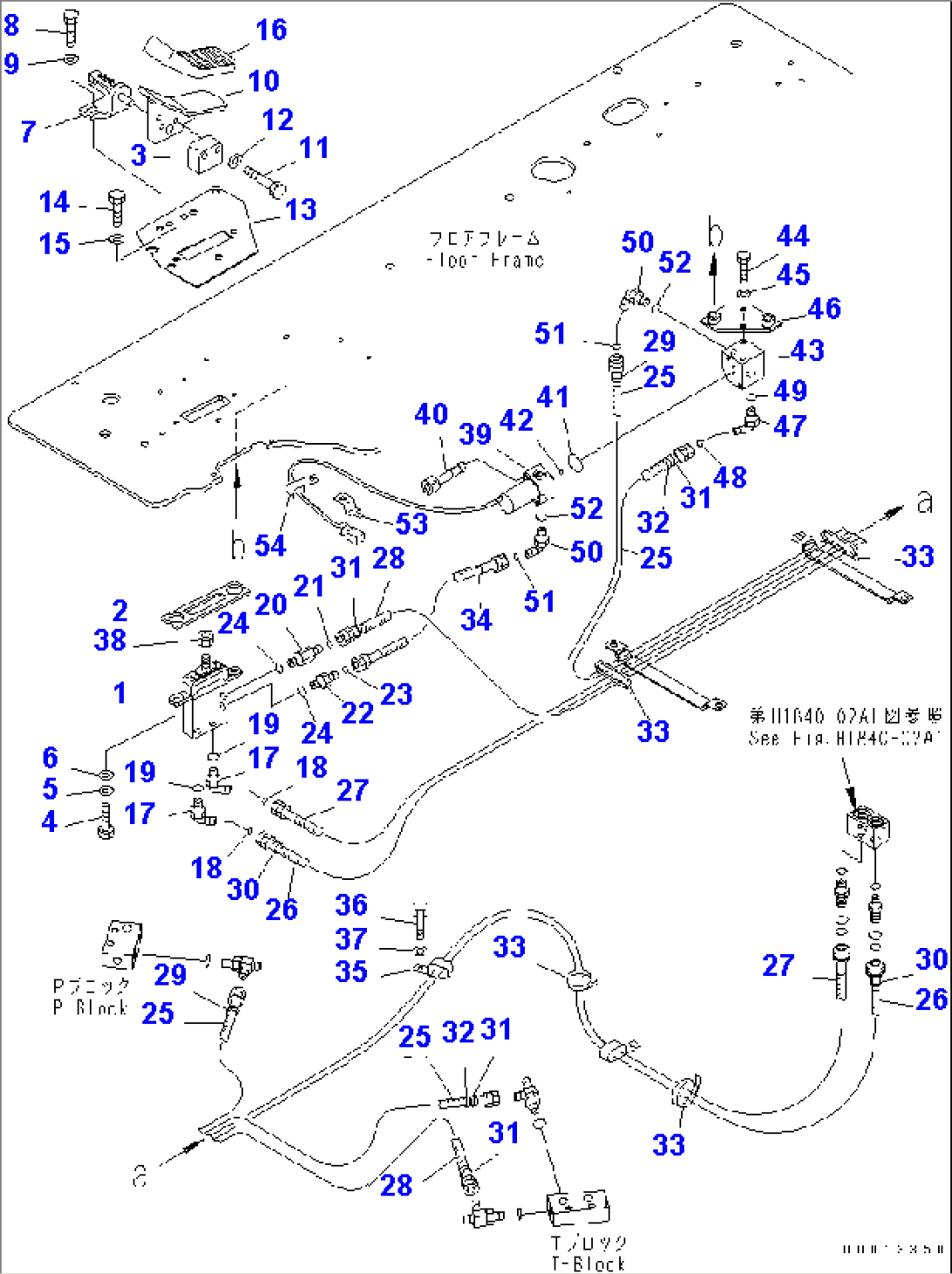

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (702-16-01230) | PILOT VALVE | 50001- | |
| 2 | 22U-54-25660 | SEAL | 50001- | |
| 3 | 22U-43-21470 | SEAT | 50001- | |
| 4 | 01010-81025 | BOLT | 50001- | |
| 5 | 01643-31032 | WASHER | 50001- | |
| 6 | 01643-31032 | WASHER | 50001- | |
| 7 | 20Y-62-25360 | BRACKET | 50001- | |
| 8 | 01010-D1025 | BOLT | 50001- | |
| 9 | 01643-71032 | WASHER | 50001- | |
| 10 | 20Y-43-31220 | PEDAL | 50001- | |
| 11 | 01010-D1045 | BOLT | 50001- | |
| 12 | 01643-71032 | WASHER | 50001- | |
| 13 | 22U-54-25541 | PLATE | 50001- | |
| 14 | 01010-81020 | BOLT | 50001- | |
| 15 | 01643-31032 | WASHER | 50001- | |
| 16 | 22U-54-25670 | CAP | 50001- | |
| 17 | 21W-62-43980 | ELBOW | 50001- | |
| 18 | 02896-11008 | O-RING | 50001- | |
| 19 | 07000-12011 | O-RING | 50001- | |
| 20 | 20Y-62-43470 | NIPPLE | 50001- | |
| 21 | 02896-11008 | O-RING | 50001- | |
| 22 | 11Y-62-12140 | NIPPLE | 50001- | |
| 23 | 02896-11008 | O-RING | 50001- | |
| 24 | 07000-12011 | O-RING | 50001- | |
| 25 | 208-62-72480 | HOSE¤ 1080MM | 50001- | |
| 26 | 208-62-72630 | HOSE¤ 2100MM | 50001- | |
| 27 | 208-62-72640 | HOSE¤ 2050MM | 50001- | |
| 28 | 208-62-72650 | HOSE¤ 1200MM | 50001- | |
| 29 | 20Y-62-22790 | BAND¤ RED | 50001- | |
| 30 | 20Y-62-22810 | BAND¤ YELLOW | 50001- | |
| 31 | 20Y-62-22820 | BAND¤ BLUE | 50001- | |
| 32 | 20Y-62-22830 | BAND¤ WHITE | 50001- | |
| 33 | 08034-00519 | BAND | 50102- | |
| 08034-00519 | BAND | 50001-50101 | ||
| 34 | 21W-62-42240 | HOSE | 50001- | |
| 35 | 04435-51210 | CLIP | 50001- | |
| 36 | 01010-81016 | BOLT | 50001-50101 | |
| 37 | 01643-31032 | WASHER | 50001-50101 | |
| 38 | 01583-51408 | NUT | 50001- | |
| 39 | (702-21-07010) | VALVE ASS'Y | 50001- | |
| 40 | 203-60-62220 | BOLT | 50001- | |
| 41 | 700-93-11320 | O-RING | 50001- | |
| 42 | 07000-12011 | O-RING | 50102- | |
| 07000-02011 | O-RING | 50001-50101 | ||
| 43 | 20Y-62-43410 | BLOCK | 50001- | |
| 44 | 01010-80820 | BOLT | 50001- | |
| 45 | 01643-30823 | WASHER | 50001- | |
| 46 | 20Y-62-43420 | BRACKET | 50001- | |
| 47 | 11Y-62-12160 | ELBOW | 50001- | |
| 48 | 02896-11008 | O-RING | 50001- | |
| 49 | 07002-11423 | O-RING | 50001- | |
| 50 | 21W-62-43960 | ELBOW | 50001- | |
| 51 | 02896-11008 | O-RING | 50001- | |
| 52 | 07002-11423 | O-RING | 50001- | |
| 53 | 08053-01510 | CLIP | 50001- | |
| 54 | 04434-51010 | CLIP | 50001-50101 |
