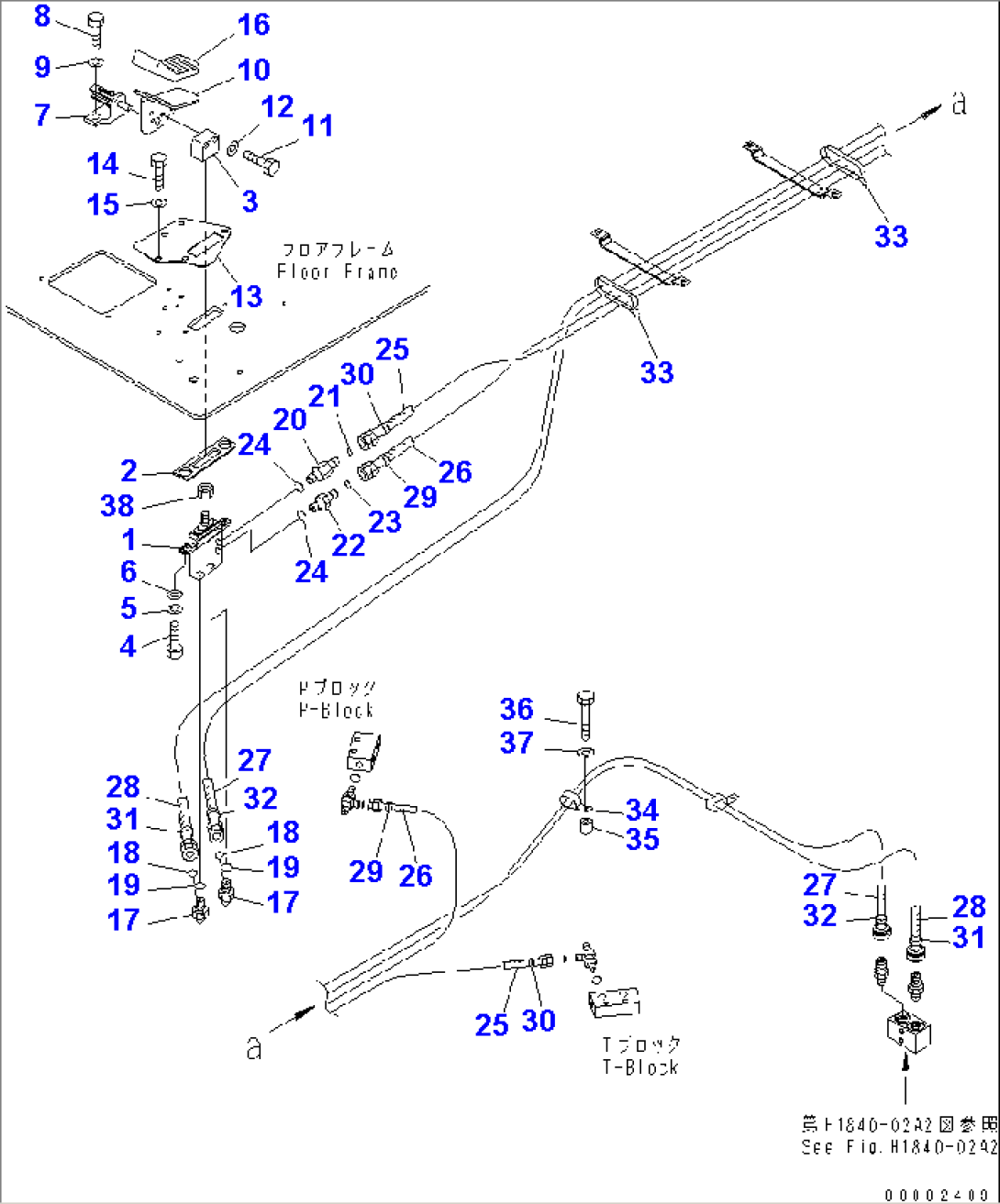

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (702-16-01230) | PILOT VALVE | 20001- | |
| 2 | 22U-54-25660 | SEAL | 20001- | |
| 3 | 22U-43-21470 | SEAT | 20001- | |
| 4 | 01010-81025 | BOLT | 20001- | |
| 5 | 01643-31032 | WASHER | 20001- | |
| 6 | 01643-31032 | WASHER | 20001- | |
| 7 | 20Y-62-25360 | BRACKET | 20001- | |
| 8 | 01010-D1025 | BOLT | 20001- | |
| 9 | 01643-71032 | WASHER | 20001- | |
| 10 | 20Y-43-31220 | PEDAL | 20001- | |
| 11 | 01010-D1045 | BOLT | 20001- | |
| 12 | 01643-71032 | WASHER | 20001- | |
| 13 | 22U-54-25180 | PLATE | 20001- | |
| 14 | 01010-81020 | BOLT | 20001- | |
| 15 | 01643-31032 | WASHER | 20001- | |
| 16 | 22U-54-25670 | CAP | 20001- | |
| 17 | 21W-62-43980 | ELBOW | 20001- | |
| 18 | 02896-11008 | O-RING | 20001- | |
| 19 | 07000-12011 | O-RING | 20001- | |
| 20 | 20Y-62-43470 | NIPPLE | 20001- | |
| 21 | 02896-11008 | O-RING | 20001- | |
| 22 | 11Y-62-12140 | NIPPLE | 20001- | |
| 23 | 02896-11008 | O-RING | 20001- | |
| 24 | 07000-12011 | O-RING | 20001- | |
| 25 | 02760-00211 | HOSE | 20001- | |
| 26 | 02760-00212 | HOSE, 1200MM | 20001- | |
| 27 | 20Y-62-43490 | HOSE, 2400MM | 20001- | |
| 28 | 20Y-62-43790 | HOSE, 2450MM | 20001- | |
| 29 | 20Y-62-22790 | BAND, RED | 20001- | |
| 30 | 20Y-62-22820 | BAND, BLUE | 20001- | |
| 31 | 20Y-62-22840 | BAND, BLACK | 20001- | |
| 32 | 20Y-62-22860 | BAND, BROWN | 20001- | |
| 33 | 08034-20536 | BAND | 20001- | |
| 34 | 04435-51210 | CLIP | 20001- | |
| 35 | 195-33-11220 | SPACER | 25001- | |
| 36 | 01010-81050 | BOLT | 25001- | |
| 37 | 01643-31032 | WASHER | 20001- | |
| 38 | 01583-51408 | NUT | 20001- |
