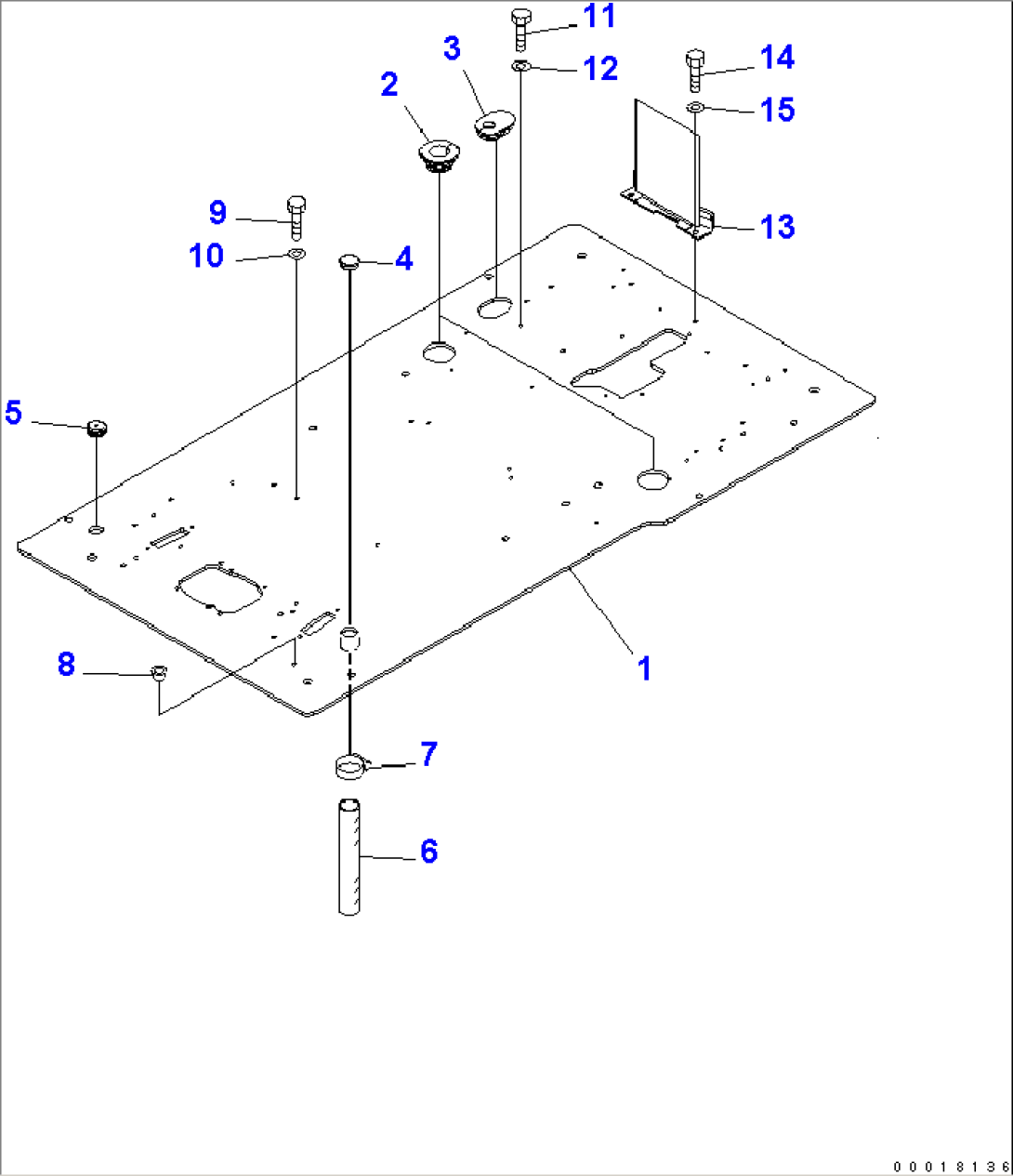

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-53-14810 | FLOOR FRAME | K40652- | |
| 2 | 20Y-54-65121 | GROMMET | K40652- | |
| 3 | 208-53-12970 | GROMMET | K40652- | |
| 4 | 22U-54-25581 | GROMMET | K40652- | |
| 5 | 22U-54-25590 | GROMMET | K40652- | |
| 6 | 07286-03828 | HOSE | K40652- | |
| 7 | 07280-04726 | CLAMP | K40652- | |
| 8 | 07048-01310 | PLUG | K40652- | |
| 9 | 01010-81030 | BOLT | K40652- | |
| 10 | 01643-31032 | WASHER | K40652- | |
| 11 | 01010-81016 | BOLT | K40652- | |
| 12 | 01643-31032 | WASHER | K40652- | |
| 13 | 208-53-12891 | BRACKET | K40652- | |
| 22U-06-22261 | SHEET | K40652- | ||
| 14 | 01010-81020 | BOLT | K40652- | |
| 15 | 01643-31032 | WASHER | K40652- |
