| Item | Part No. | Part Name | Qty | Serial No. |
| (20Y-53-00481) | CAB ASSEMBLY (ROPS) | K53402- | ||
| (20Y-53-00480) | CAB ASSEMBLY | K53212-K53401 | ||
| (20Y-53-00083) | CAB ASSEMBLY | K52293-K53211 | ||
| (20Y-53-00082) | CAB ASSEMBLY | K50598-K52292 | ||
| (20Y-53-00081) | CAB ASSEMBLY | K50001-K50597 | ||

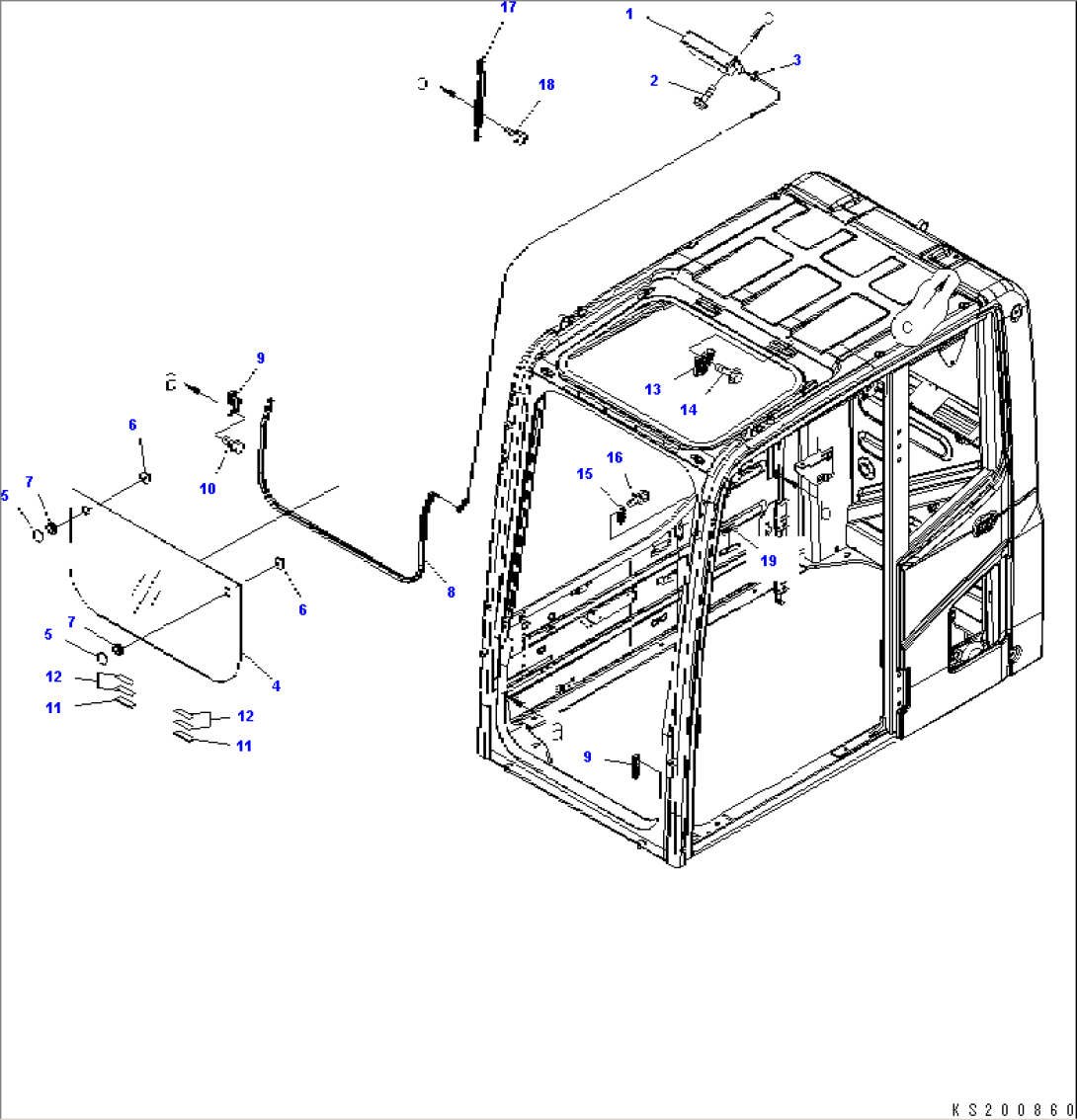

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K1110-01A0 TO K1110-12A0. | ||||
| 1 | 20Y-53-11591 | SPRING ASSEMBLY | K50001- | |
| 2 | 01435-00616 | BOLT | K50001- | |
| 3 | 20Y-54-51640 | HOLDER | K50001- | |
| 20Y-53-11601 | GLASS | K50001- | ||
| 4 | 20Y-53-11611 | GLASS | K50001- | |
| 5 | 22B-54-15970 | RETAINER | K50001- | |
| 6 | 22B-54-15980 | KNOB | K50001- | |
| 7 | 08037-02512 | GROMMET | K50001- | |
| 8 | 208-53-11860 | TRIM | K50001- | |
| 9 | 20Y-53-11940 | SEAT | K52293- | |
| 208-53-11830 | SEAT | K50001-K52292 | ||
| 10 | 01023-20612 | SCREW | K50001- | |
| 11 | 20Y-53-11973 | RUBBER | K52293- | |
| 20Y-53-11971 | RUBBER | K50001-K52292 | ||
| 12 | 20Y-53-12892 | RUBBER | K52293- | |
| 20Y-53-12890 | RUBBER | K50001-K52292 | ||
| 13 | 22B-54-15841 | LOCK ASSEMBLY | K50001- | |
| 14 | 01435-40616 | BOLT | K50001- | |
| 15 | 20Y-53-12611 | SEAT | K50001- | |
| 16 | 01023-20616 | SCREW | K50001- | |
| 17 | 20Y-53-12631 | RAIL | K50001- | |
| 20Y-53-12641 | RUNCHANNEL | K50001- | ||
| 20Y-53-12651 | RAIL | K50001- | ||
| 18 | 01023-20616 | SCREW | K50001- | |
| 19 | 20U-54-25140 | STOPPER | K50001- |
