| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21K-54-72910 | PLATE | K45001- | |
| 2 | 01010-80816 | BOLT | K45001- | |
| 3 | 01643-30823 | WASHER | K45001- | |
| 4 | 7826-20-7032 | CONTROLLER | K45001- | |
| 5 | 01435-00825 | BOLT | K45001- | |
| 6 | 208-06-71530 | WIRING HARNESS | K45001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc180nlc 7e0 s/n k45001 up
- Operator's compartment and control system
- Floor frame (operator's cab) (komtrax)
Поиск по каталогу

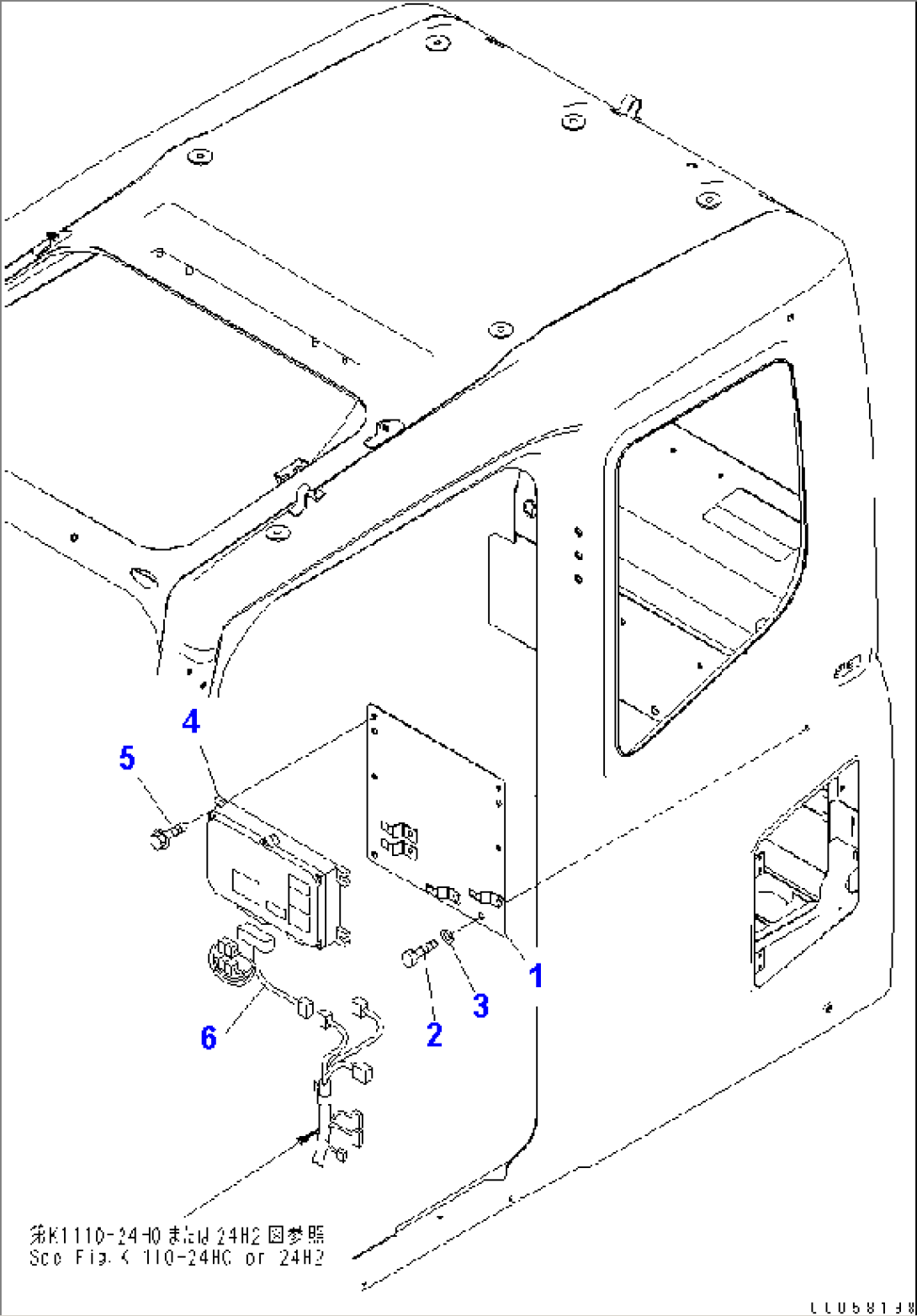

FLOOR FRAME (OPERATOR'S CAB) (KOMTRAX)
