| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-02290 | Lever Assembly | 1006- | |
| 2 | 01252-60512 | Bolt | 1006- | |
| 3 | 702-16-59330 | Boot | 1006- | |
| 4 | 702-16-62730 | Cover | 1006- | |
| 5 | 702-16-62740 | O-ring | 1006- | |
| 6 | 702-16-61270 | Tube | 1006- | |
| 7 | Connector | 1006- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ms 15 s/n 1006 up
- Operator's compartment and control system
- Floor frame, pccs (palm command control system) lever (#1006 )
Поиск по каталогу

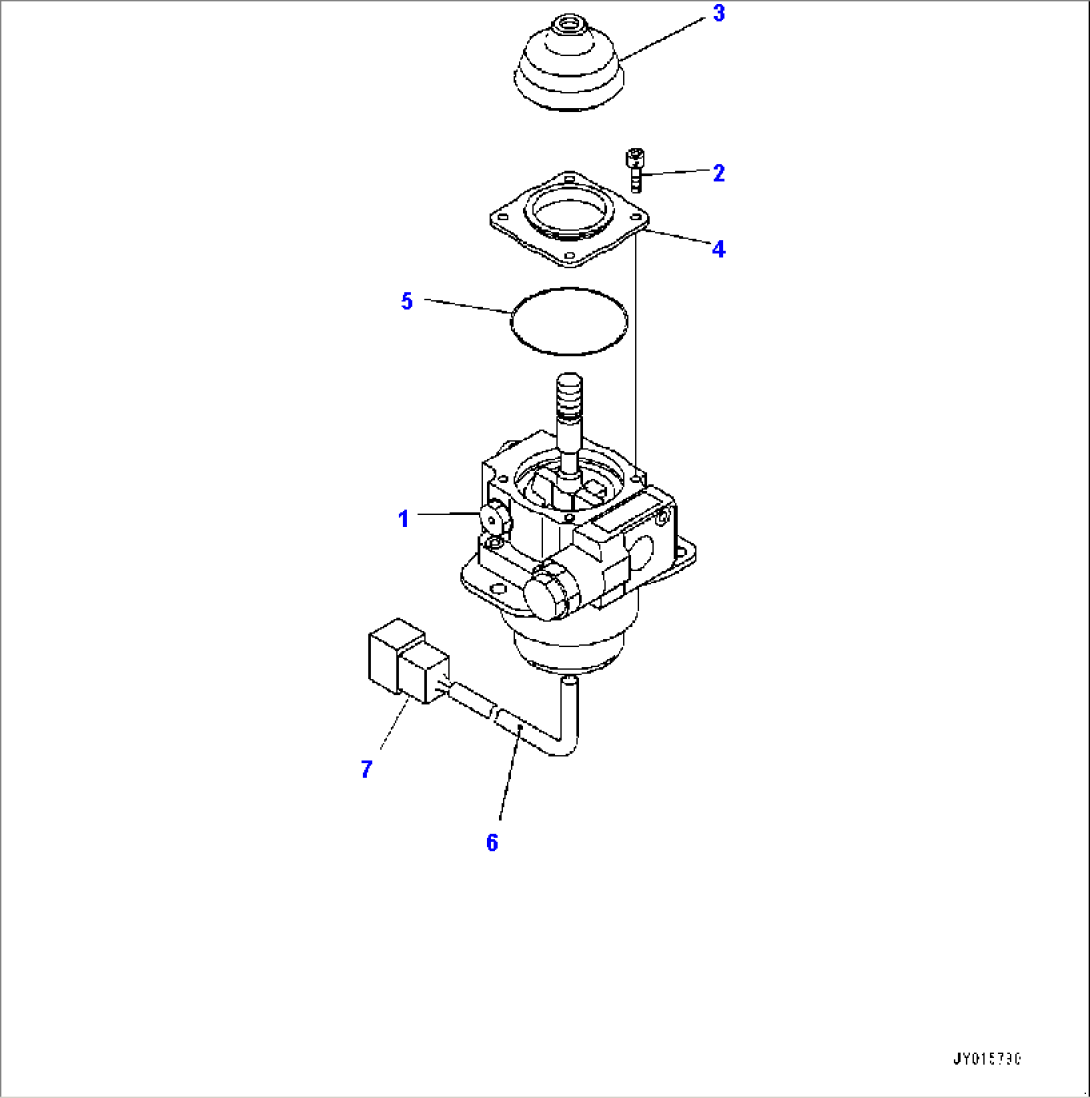

Floor Frame, PCCS (Palm Command Control System) Lever (#1006-)
