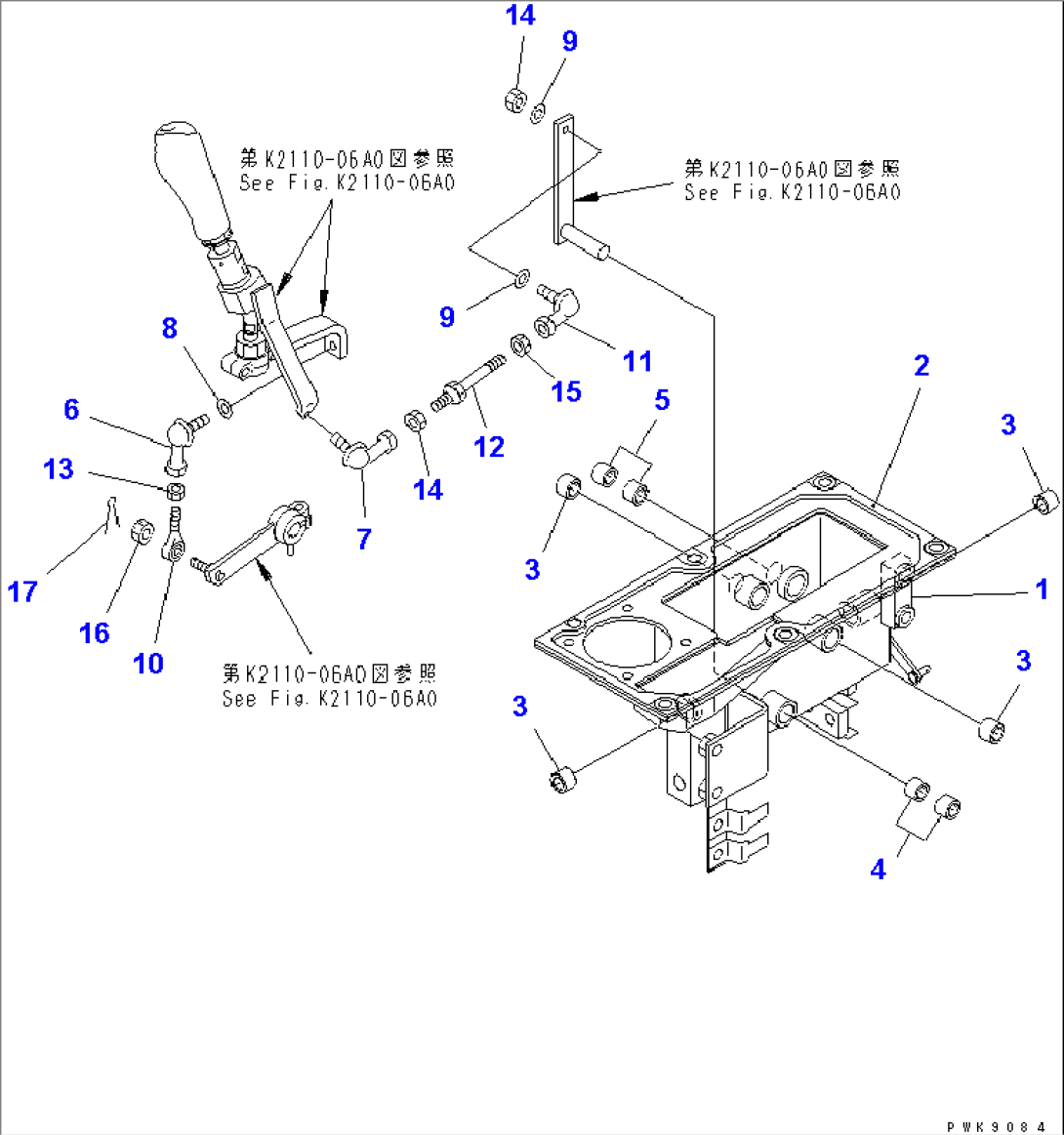

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-43-66231 | BRACKET | B3001- | |
| 2 | 14Z-43-13180 | SHEET | B3001- | |
| 3 | 06124-01416 | BEARING | B3001- | |
| 4 | 06123-01414 | BEARING | B3001- | |
| 5 | 06123-01614 | BEARING | B3001- | |
| 6 | 04256-40817 | JOINT | B3001- | |
| 7 | 04256-40612 | JOINT | B3001- | |
| 8 | 01643-30823 | WASHER | B3001- | |
| 9 | 01643-30623 | WASHER | B3001- | |
| 10 | 04252-20853 | END | B3001- | |
| 11 | 04256-50618 | JOINT | B3001- | |
| 12 | 04248-30609 | ROD | B3001- | |
| 13 | 01580-10806 | NUT | B3001- | |
| 14 | 01580-10605 | NUT | B3001- | |
| 15 | 01508-40603 | NUT | B3001- | |
| 16 | 01590-30809 | NUT | B3001- | |
| 17 | 04050-12015 | PIN | B3001- |
