| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08086-50000 | Switch, Starting | 50001- | |
| 2 | 20Y-43-41740 | Plate | 50001- | |
| 3 | 20Y-43-41750 | Washer | 50001- | |
| 4 | 20Y-43-41790 | Washer | 50001- | |
| 5 | 20Y-43-41671 | Sheet | 50001- | |
| 6 | 08034-20519 | Band | 50001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc138us 11 s/n 50001 up
- Operator's compartment and control system
- Floor frame, starting switch (#50001 )
Поиск по каталогу

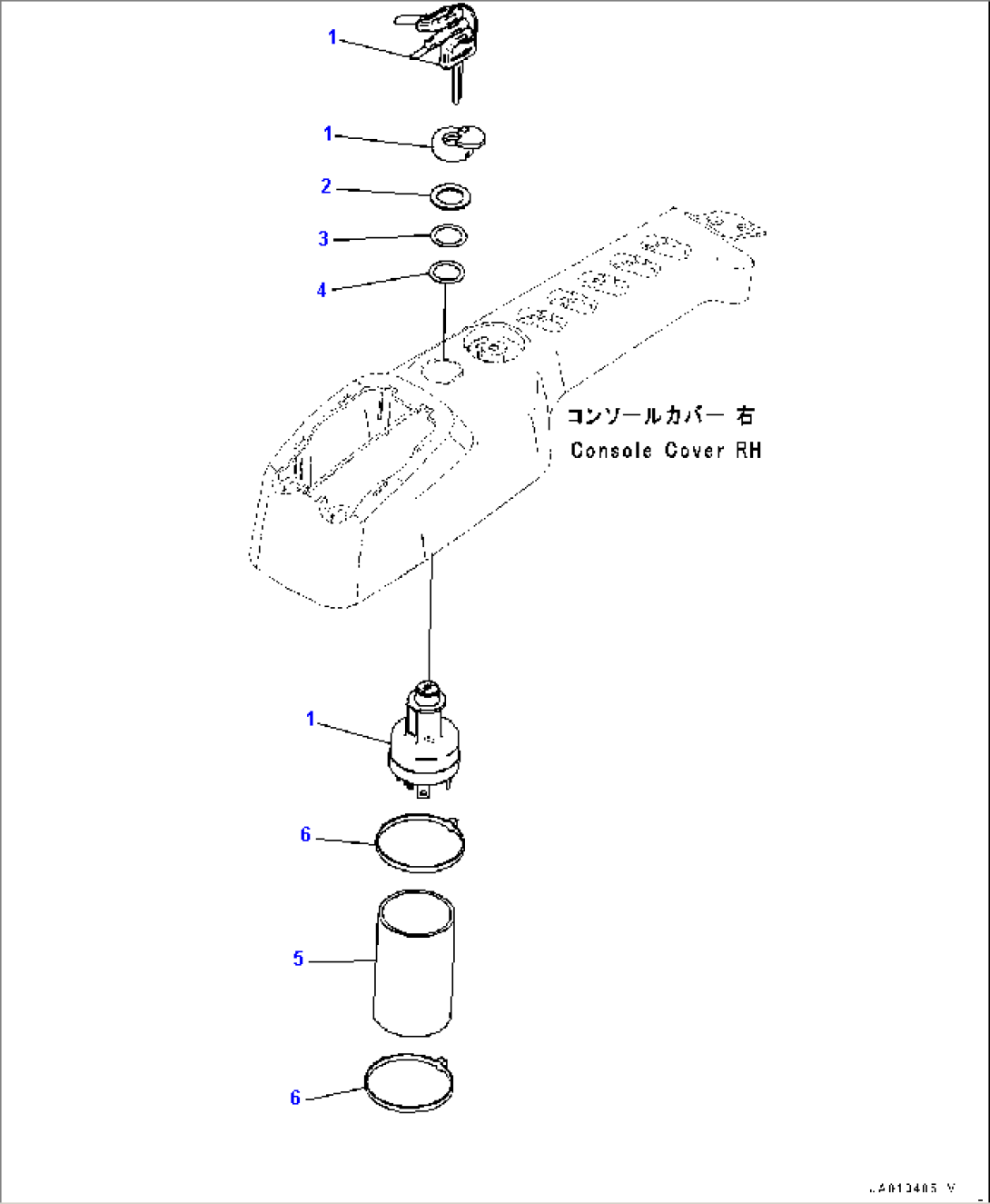

Floor Frame, Starting Switch (#50001-)
