| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22J-43-26250 | LEVER | F30003- | |
| 2 | 22J-43-26260 | LEVER | F30003- | |
| 3 | 01252-81025 | BOLT | F30003- | |
| 4 | 01643-71032 | WASHER | F30003- | |
| 5 | 20Y-43-21231 | KNOB, L.H. | F30003- | |
| 6 | 20Y-43-21241 | KNOB, R.H. | F30003- | |
| 7 | 01023-20416 | SCREW | F30003- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc55mr 3 s/n f30003 up
- Operator's compartment and control system
- Floor frame, travel control lever
Поиск по каталогу

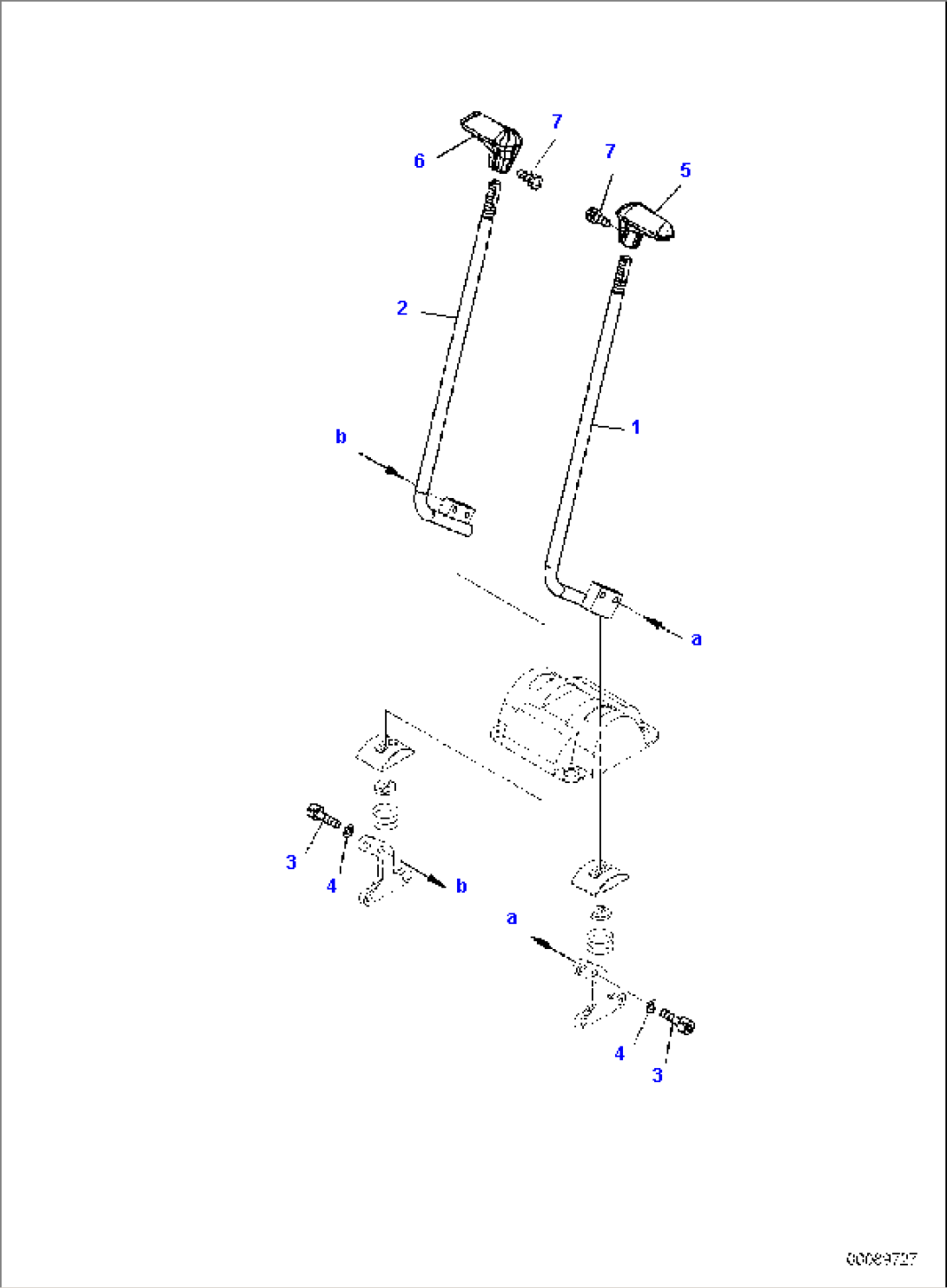

FLOOR FRAME, TRAVEL CONTROL LEVER
