| Item | Part No. | Part Name | Qty | Serial No. |
| \0.99 | 702-16-R1601 | PPC VALVE, ASSEMBLY | F30001- | |
| 1 | 21D-60-13940 | BOOT | F30001- | |
| 2 | 21D-60-13950 | PISTON, ASSEMBLY | F30001- | |
| 3 | \6\ | PISTON, GUIDE | F30001- | |
| 4 | \6\ | PISTON | F30001- | |
| 5 | RER908200152 | KIT, LEVER | F30001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc22mr 3 s/n f30001 up
- Frame and its related parts
- Floor frame, with proportional control lever, ppc valve for blade
Поиск по каталогу

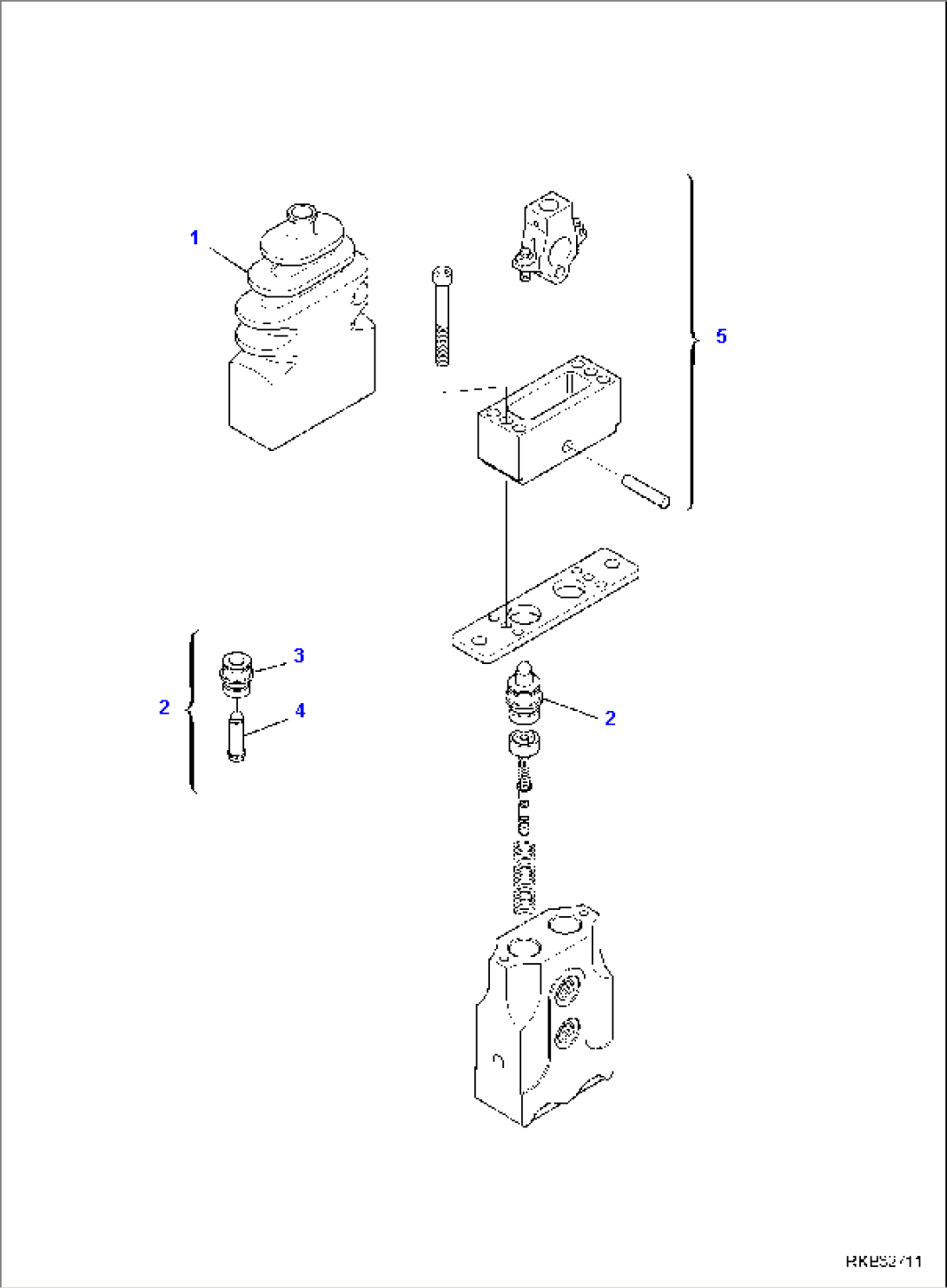

FLOOR FRAME, WITH PROPORTIONAL CONTROL LEVER, PPC VALVE FOR BLADE
