| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 203-973-4150 | FRAME,FLOOR | 12001- | |
| 2 | 203-43-42572 | BRACKET | 12001- | |
| 3 | 01010-51030 | BOLT | 12001- | |
| 4 | 01602-21030 | WASHER,SPRING | 12001- | |
| 5 | 203-973-4160 | MAT,FLOOR | 12001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc100l 3 s/n 12001 up
- Optional parts
- Floor frame(additional hydraulic circuit)(for long lever control)
Поиск по каталогу

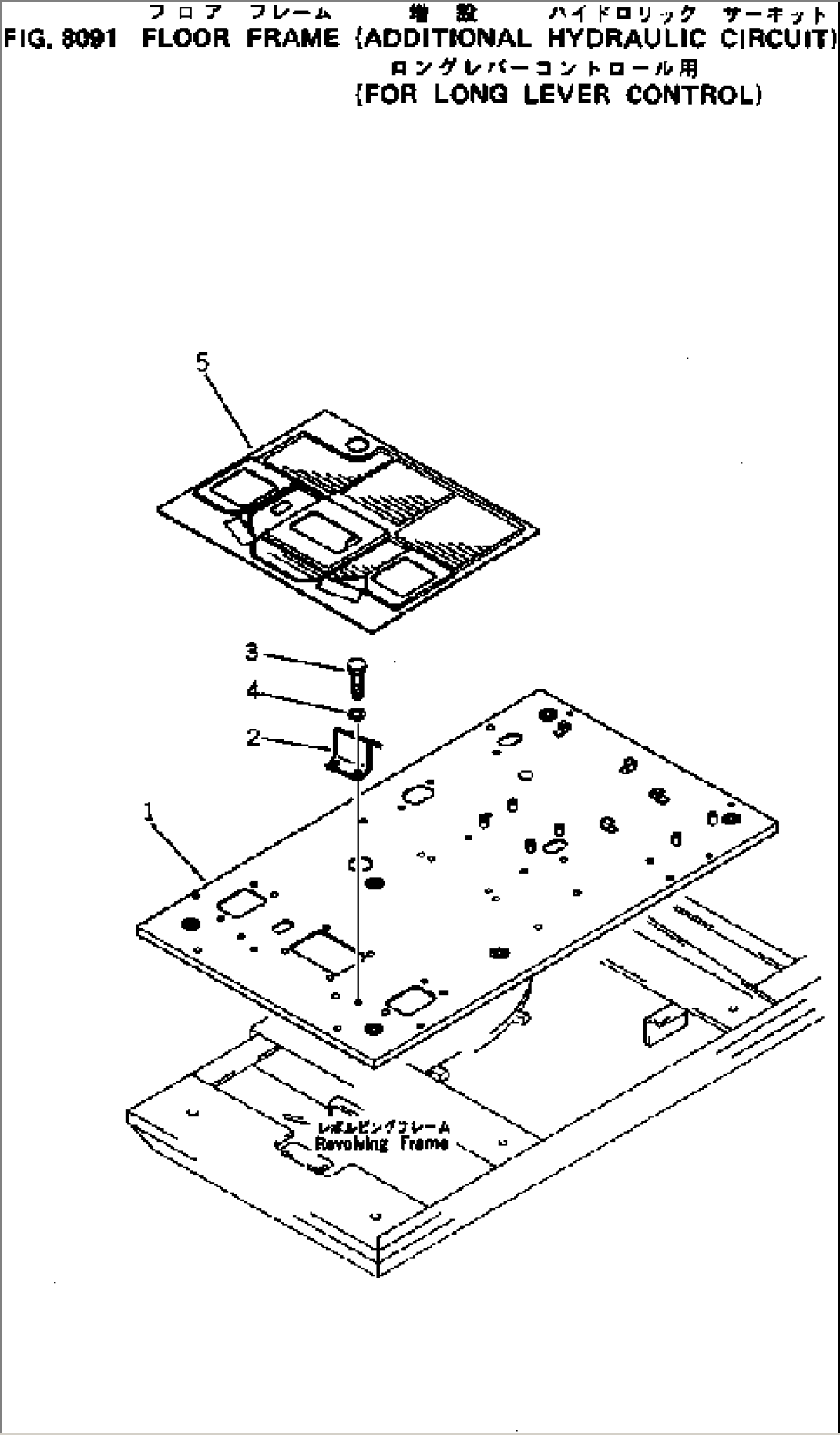

FLOOR FRAME(ADDITIONAL HYDRAULIC CIRCUIT)(FOR LONG LEVER CONTROL)
