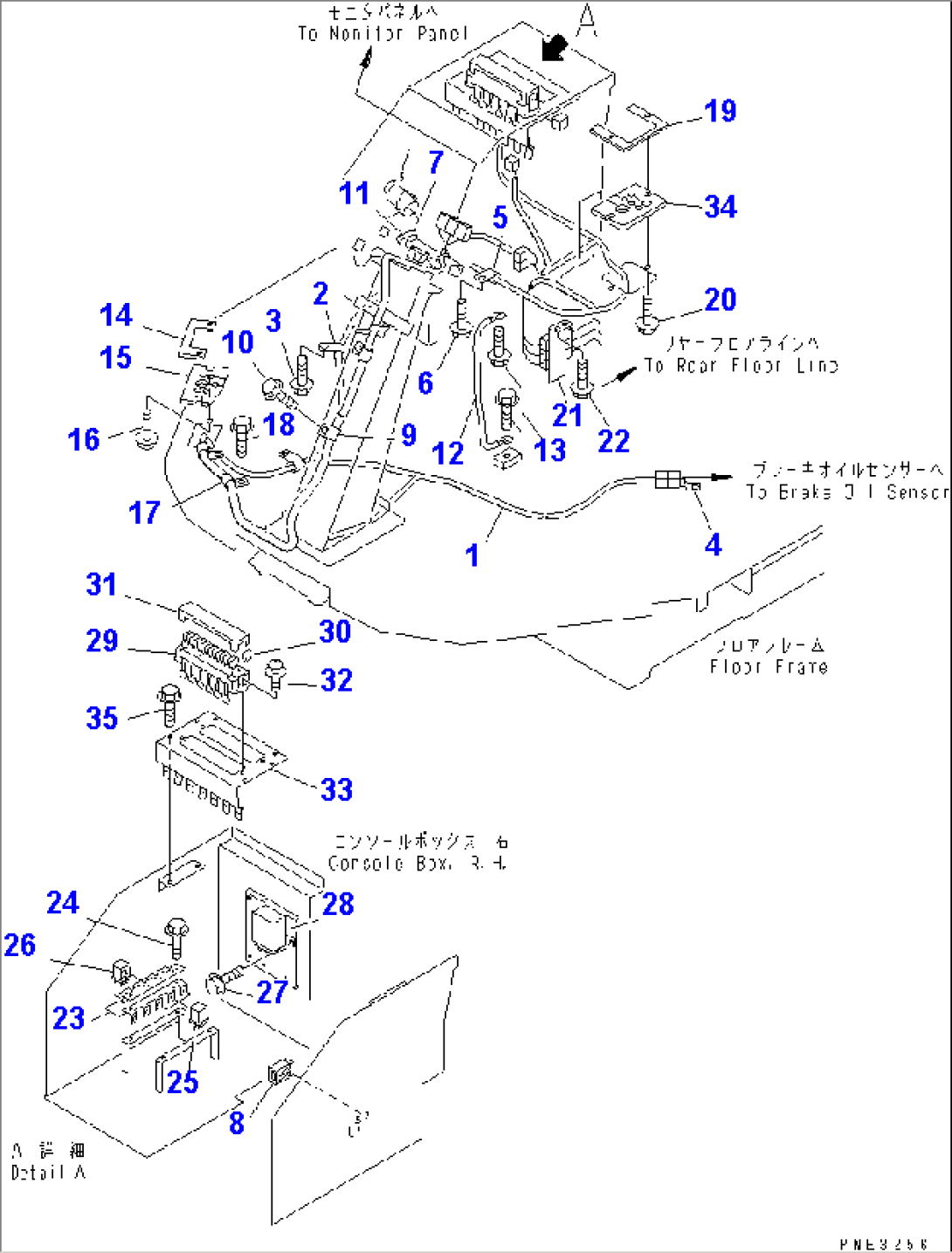

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-06-22371 | WIRING HARNESS | 53001-54333 | ||
| 1 | 08020-10000 | DIODE | 53001-54333 | |
| 2 | 08036-01814 | CLIP | 53001-54333 | |
| 3 | 01435-01016 | BOLT | 53001-54333 | |
| 4 | 08053-01512 | CLIP | 53001-54333 | |
| 5 | 08036-02514 | CLIP | 53001-54333 | |
| 6 | 01435-01016 | BOLT | 53001-54333 | |
| 7 | 416-06-22391 | WIRING HARNESS | 53001-54333 | |
| 8 | 417-06-22240 | CONNECTOR,(FRONT AND REAR WORK LAMP) | 53001-54333 | |
| 9 | 08036-02514 | CLIP | 53001-54333 | |
| 10 | 01435-01016 | BOLT | 53001-54333 | |
| 11 | 08034-20519 | BAND | 53001-54333 | |
| 12 | 08028-48040 | CABLE, GROUND | 53001-54333 | |
| 13 | 01435-01016 | BOLT | 53001-54333 | |
| 14 | 417-06-22410 | PLATE | 53001-54333 | |
| 15 | 417-06-22420 | SHEET | 53001-54333 | |
| 16 | 01435-00612 | BOLT | 53001-54333 | |
| 17 | 08036-02514 | CLIP | 53001-54333 | |
| 18 | 01435-01016 | BOLT | 53001-54333 | |
| 19 | 419-06-22530 | PLATE | 53001-54333 | |
| 20 | 01435-00612 | BOLT | 53001-54333 | |
| 21 | 417-06-22220 | BRACKET | 53001-54333 | |
| 22 | 01435-01016 | BOLT | 53001-54333 | |
| 23 | 569-06-61180 | BRACKET | 53001-54333 | |
| 24 | 01435-00612 | BOLT | 53001-54333 | |
| 25 | 569-06-61960 | RELAY,1-WAY | 53001-54333 | |
| 26 | 569-06-61970 | RELAY,2-WAY | 53001-54333 | |
| 27 | 01435-00612 | BOLT | 53001-54333 | |
| 28 | 416-06-21210 | CONTROLLER | 53001-54333 | |
| 29 | 417-06-22380 | FUSE BOX ASS'Y | 53001-54333 | |
| 30 | 283-06-16190 | FUSE, 10A | 53001-54333 | |
| 30 | 22W-06-13160 | FUSE, 20A | 53001-54333 | |
| 31 | 283-06-16120 | COVER | 53001-54333 | |
| 32 | 01023-70520 | SCREW | 53001-54333 | |
| 33 | 417-06-22520 | BRACKET | 53001-54333 | |
| 34 | 417-06-22431 | SHEET | 53001-54333 | |
| 35 | 01435-00612 | BOLT | 53001-54333 |
