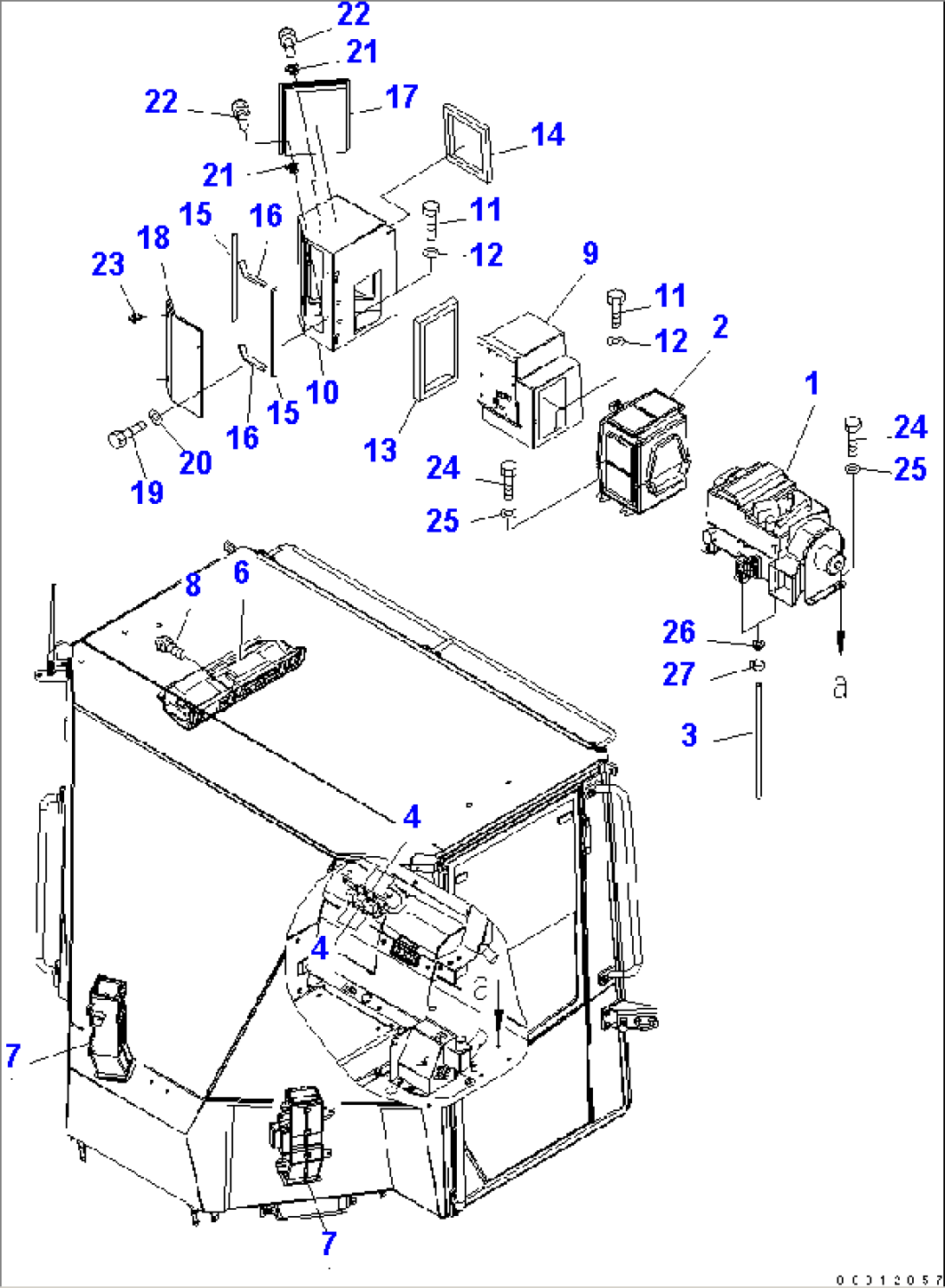

Item | Part No. | Part Name | Qty | Serial No. |
418-S62-3110 | AIR CONDITIONER KIT | 65001- | ||
1 | 425-07-21111 | AIR CONDITIONER U. | 65001- | |
2 | 421-07-31260 | DAMPER ASS'Y | 65001- | |
3 | 421-07-21280 | HOSE | 65001- | |
4 | 418-S62-3140 | RELAY | 65001- | |
421-07-31420 | KIT | 65001- | ||
6 | 421-07-31240 | CONTROLLER | 65001- | |
7 | 425-07-21152 | DUCT ASS'Y | 65001- | |
8 | 01023-10514 | SCREW | 65001- | |
9 | 418-07-33830 | BOX | 65001- | |
10 | 418-07-33841 | BOX | 65001- | |
11 | 01010-81025 | BOLT | 65001- | |
12 | 01643-31032 | WASHER | 65001- | |
13 | 418-07-33860 | SHEET | 65001- | |
14 | 418-07-33870 | SHEET | 65001- | |
15 | 418-07-33881 | SHEET | 65001- | |
16 | 418-07-33891 | SHEET | 65001- | |
17 | 427-07-22120 | FILTER | 65001- | |
18 | 418-07-33850 | COVER | 65001- | |
19 | 01010-80620 | BOLT | 65001- | |
20 | 01643-30623 | WASHER | 65001- | |
21 | 22M-54-19170 | STOPPER | 65001- | |
22 | 01023-10512 | SCREW | 65001- | |
23 | 23A-952-1630 | LOCK | 65001- | |
24 | 01010-81025 | BOLT | 65001- | |
25 | 01643-31032 | WASHER | 65001- | |
26 | 421-09-21380 | GROMMET | 65001- | |
27 | 07285-00150 | CLIP | 65001- |
