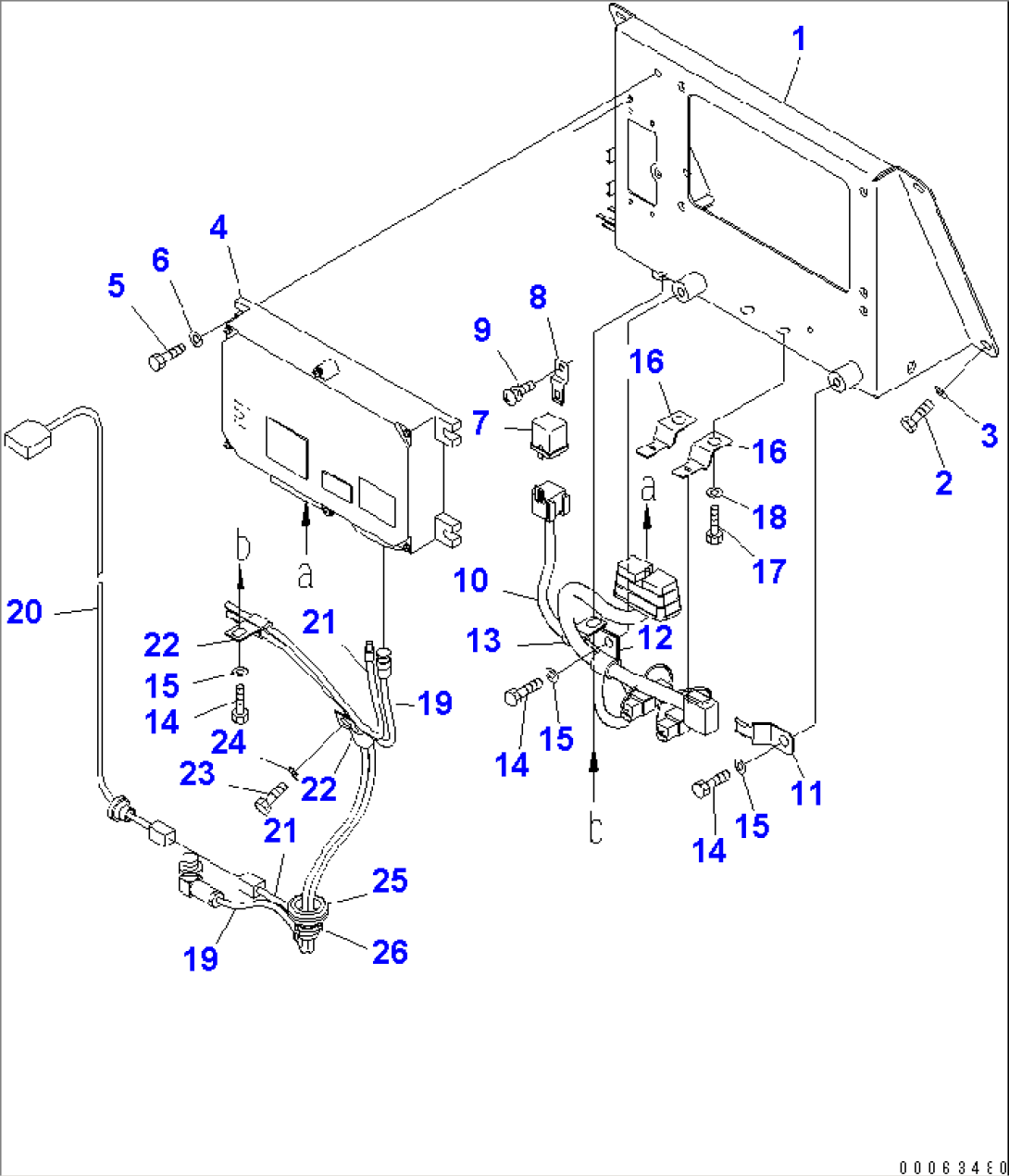

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-97-82112 | BRACKET | 3001- | |
| 2 | 01010-81020 | BOLT | 3001- | |
| 3 | 01643-31032 | WASHER | 3001- | |
| 4 | 7826-20-4034 | CONTROLLER | 3028- | |
| 4 | (\2\7826-20-4033) | CONTROLLER | (3028-7422) | |
| 4 | (\2\7826-20-4032) | CONTROLLER | (3028-7222) | |
| 4 | \0\7826-20-4031 | CONTROLLER | 3001-3027 | |
| 5 | 01010-80825 | BOLT | 3001- | |
| 6 | 01643-30823 | WASHER | 3001- | |
| 7 | 569-06-61960 | RELAY | 3001- | |
| 8 | 287-06-16420 | BRACKET | 3001- | |
| 9 | 01023-20612 | SCREW | 3001- | |
| 10 | 56E-06-21473 | WIRING HARNESS | 3001- | |
| 11 | 08193-20010 | CLIP | 3001- | |
| 12 | 04434-51410 | CLIP | 3001- | |
| 13 | 04434-51010 | CLIP | 3001- | |
| 14 | 01010-81016 | BOLT | 3001- | |
| 15 | 01643-31032 | WASHER | 3001- | |
| 16 | 08053-01510 | CLIP | 3001- | |
| 17 | 01010-81016 | BOLT | 3001- | |
| 18 | 01643-31032 | WASHER | 3001- | |
| 19 | 561-97-62250 | CABLE | 3001- | |
| 20 | 8A13-10-1310 | ANTENNA | 3001- | |
| 21 | 8A13-10-1400 | CABLE | 3023- | |
| 21 | \0\8A13-10-1420 | CABLE | 3001-3022 | |
| 22 | 04435-50610 | CLIP | 3001- | |
| 23 | 01010-81016 | BOLT | 3001- | |
| 24 | 01643-31032 | WASHER | 3001- | |
| 25 | 08037-11425 | GROMMET | 3001- | |
| 26 | 08034-20519 | BAND | 3001- |
