| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-31490 | WIRING HARNESS | 3001- | |
| 2 | 08193-20010 | CLIP | 3001- | |
| 3 | 01010-81016 | BOLT | 3001- | |
| 4 | 01643-31032 | WASHER | 3001- | |
| 5 | 08034-20519 | BAND | 7423- | |
| 5 | 08034-00519 | BAND | 3001-7422 | |
| 6 | 09415-02512 | CAP | 3001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd405 7 s/n 3001 7593
- Operator's compartment and control system
- Floor (komtrax less)(#3001 )
Поиск по каталогу

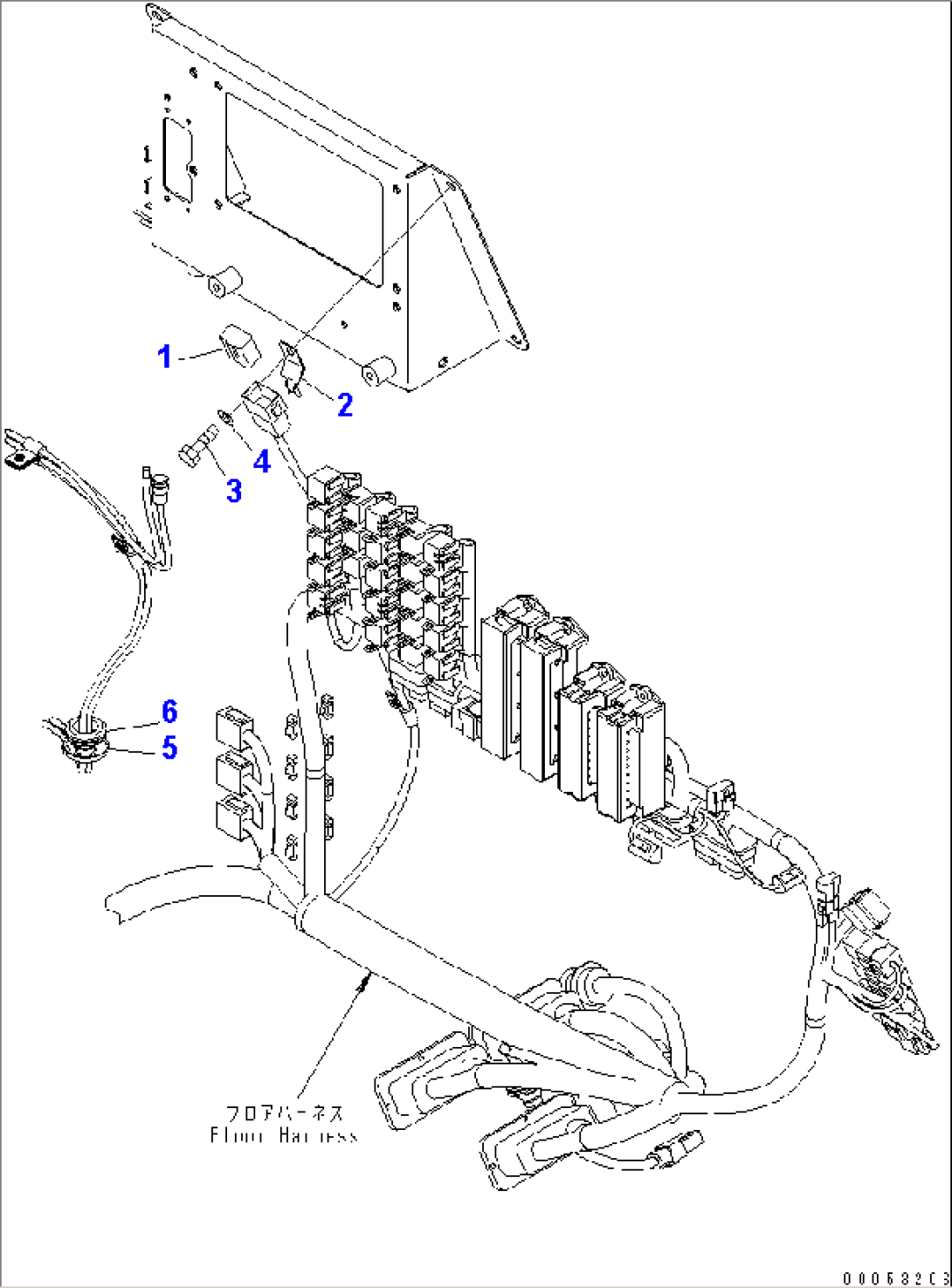

FLOOR (KOMTRAX LESS)(#3001-)
