| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 206-53-14721 | MAT | K50001- | |
| 2 | 01435-40616 | BOLT | K50001- | |
| 3 | 20Y-43-41290 | COLLAR | K50001- | |
| 4 | 20Y-53-11953 | COVER | K50001- | |
| 5 | 01435-40612 | BOLT | K50001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc450lc 8 s/n k50001 up
- K0 operator´s compartment and control system
- Floor mat (for 1 actuator)
Поиск по каталогу

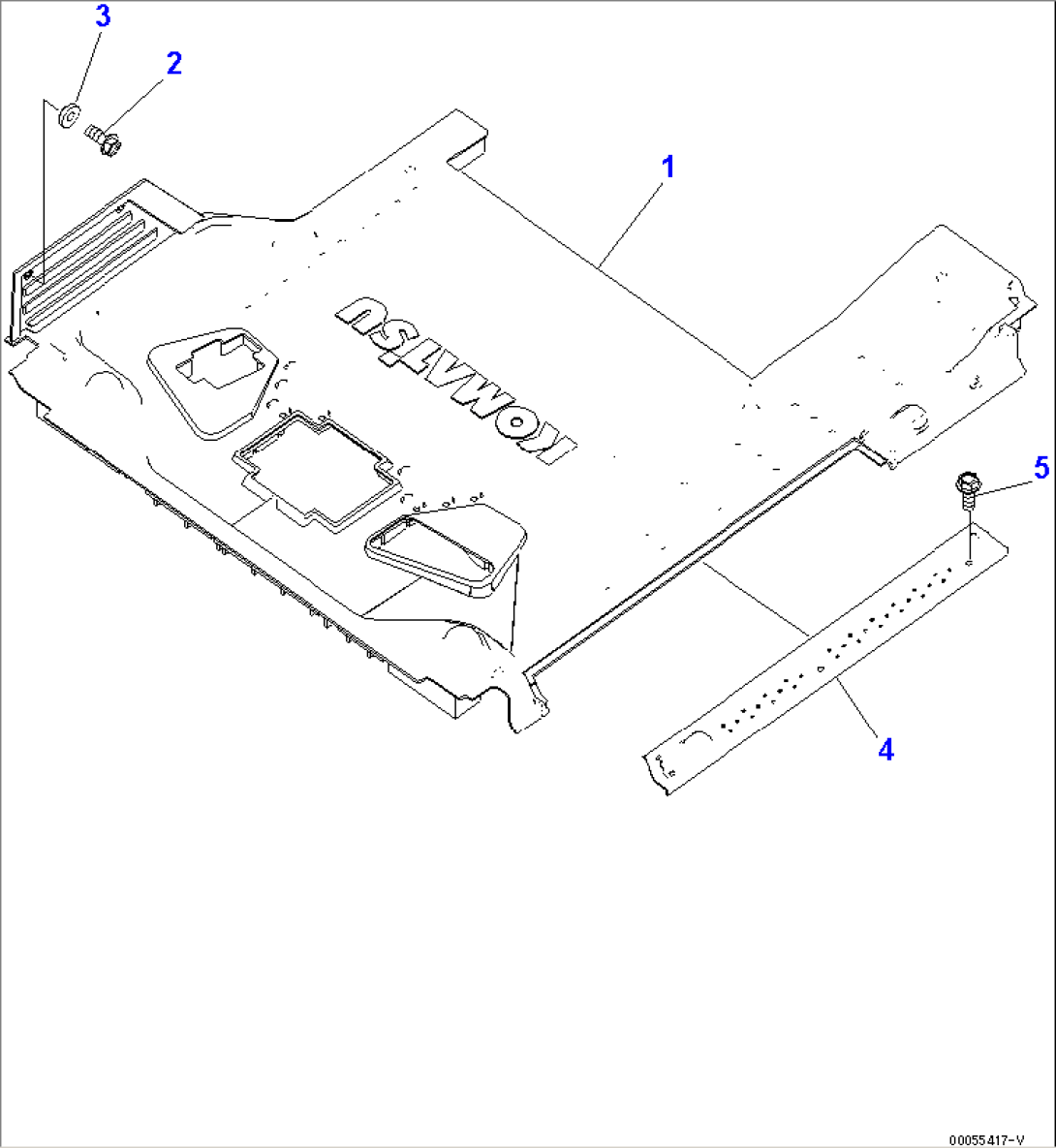

FLOOR MAT (FOR 1-ACTUATOR)
