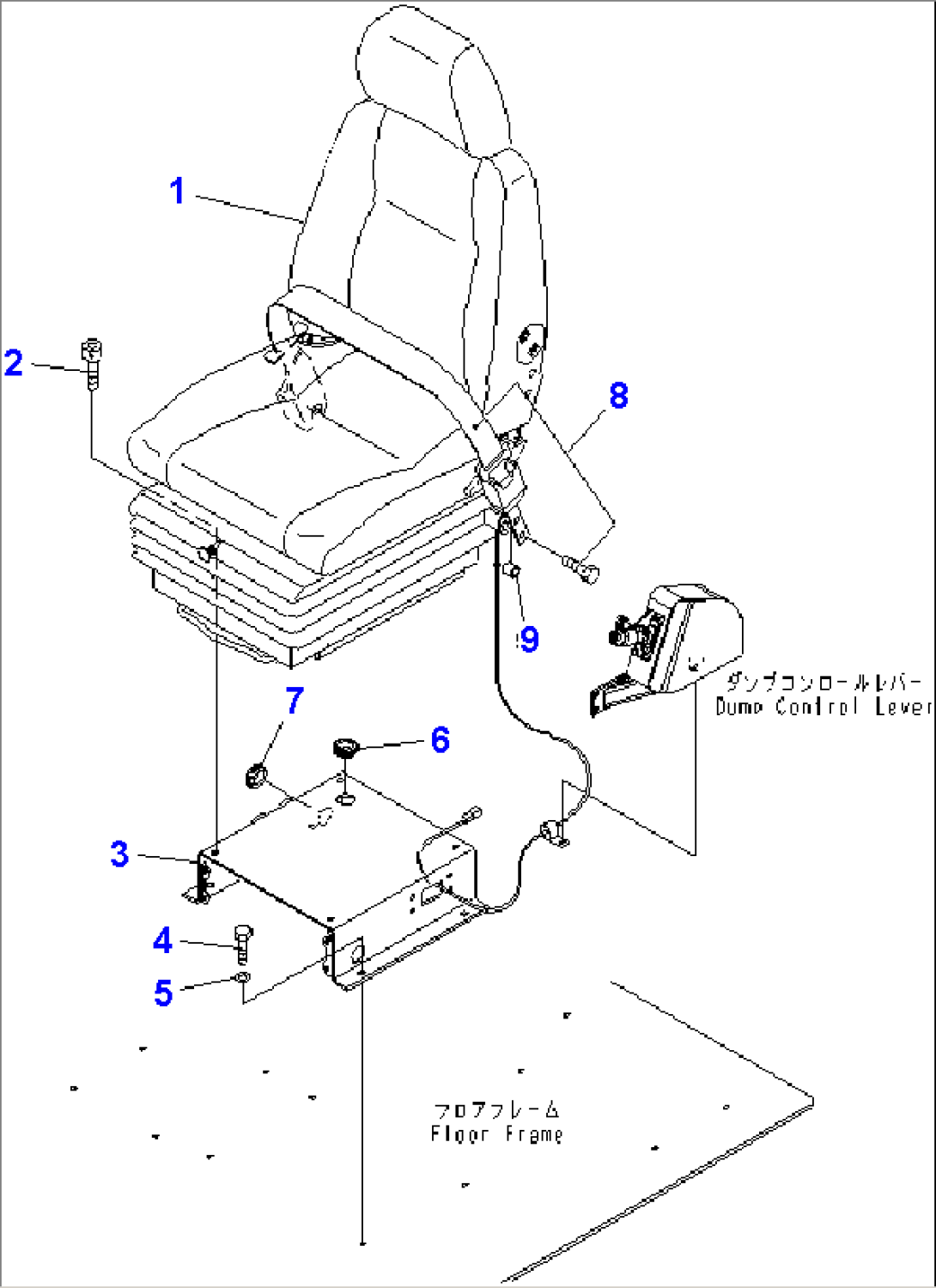

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (56B-57-11111) | SEAT ASS'Y | 2001- | |
| 1 | (\2\56B-57-11110) | SEAT ASS'Y | (2001-2416) | |
| 2 | 01252-70820 | BOLT | 2001- | |
| 3 | 56E-57-21142 | BRACKET | 2001- | |
| 4 | 01010-81020 | BOLT | 2001- | |
| 5 | 01643-31032 | WASHER | 2001- | |
| 6 | 08037-02512 | GROMMET | 2001- | |
| 7 | 08037-03614 | GROMMET | 2001- | |
| 8 | 421-57-31130 | BELT | 2001- | |
| 9 | 104-890-5610 | COLLAR | 2001- |
