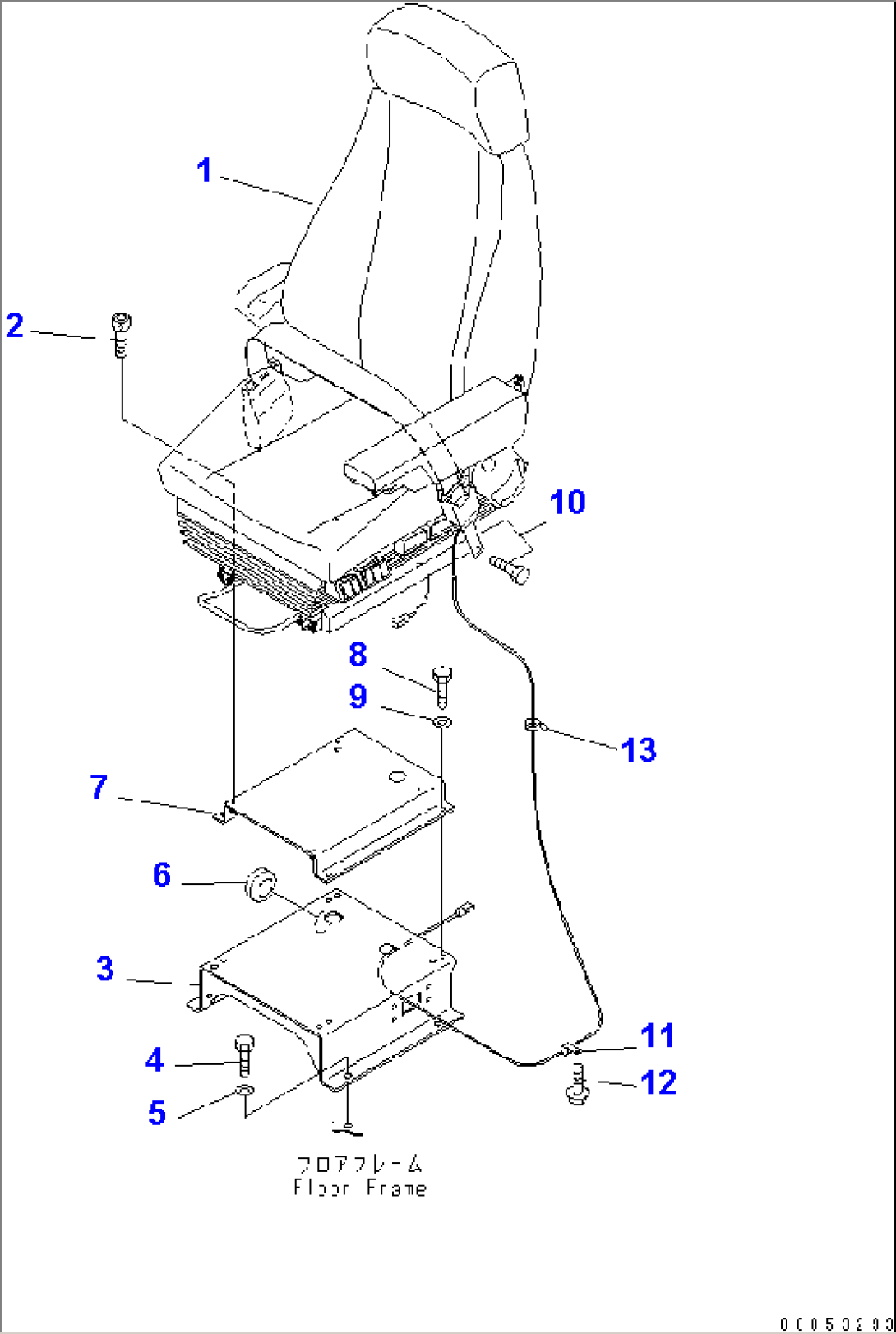

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (421-57-31111) | SEAT ASS'Y | 3001- | |
| 2 | 01252-70820 | BOLT | 3001- | |
| 3 | 561-57-81140 | BRACKET | 3001- | |
| 4 | 01010-81020 | BOLT | 3001- | |
| 5 | 01643-31032 | WASHER | 3001- | |
| 6 | 08037-03614 | GROMMET | 3001- | |
| 7 | 569-57-81151 | BRACKET | 3001- | |
| 8 | 01010-80816 | BOLT | 3001- | |
| 9 | 01643-30823 | WASHER | 3001- | |
| 10 | 561-57-81120 | BELT | 7423- | |
| 10 | 56B-57-11122 | BELT | 3001-7422 | |
| 11 | 04434-51010 | CLIP | 3001- | |
| 12 | 01435-01016 | BOLT | 3001- | |
| 13 | 08034-20519 | BAND | 3001- |
