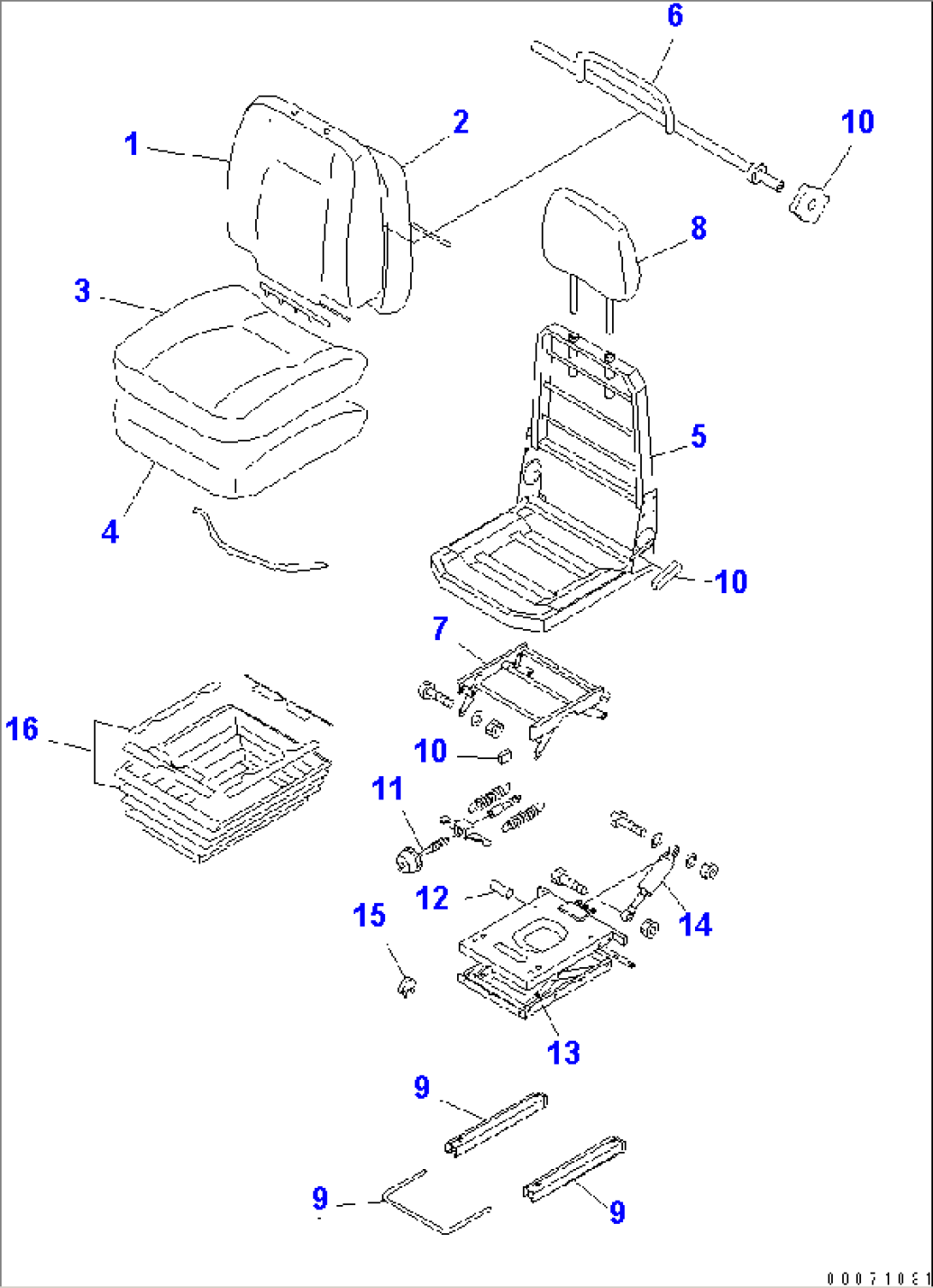

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-57-81112 | SEAT ASS'Y | 7843- | ||
| AS182906 | UPPER ASS'Y | 7843- | ||
| 1 | AS182908 | BACK COVER KIT | 7843- | |
| 2 | AS157143 | BACK FOAM KIT | 7843- | |
| 3 | AS157146 | SEAT COVER KIT | 7843- | |
| 4 | AS157154 | SEAT FOAM KIT | 7843- | |
| 5 | AS182907 | FRAME KIT | 7843- | |
| 6 | AS163938 | SUPPORT KIT | 7843- | |
| 7 | AS187944 | HEIGHT RISER KIT | 7843- | |
| 8 | AS151185 | HEAD REST KIT | 7843- | |
| 9 | AS187945 | ADJUSTMENT KIT | 7843- | |
| 10 | AS187947 | KNOB KIT | 7843- | |
| AS188057 | SUSPENSION ASS'Y | 7843- | ||
| 11 | AS160438 | WEIGHT ADJUSTER KIT | 7843- | |
| 12 | AS160439 | BEARING KIT | 7843- | |
| 13 | AS165989 | LEVER/CENTRE PIVOT | 7843- | |
| 14 | AS198243 | DAMPER KIT | 7843- | |
| 15 | AS160436 | UP STOP/BUMP STOP K. | 7843- | |
| 16 | AS187946 | SUSPENSION COVER KIT | 7843- |
