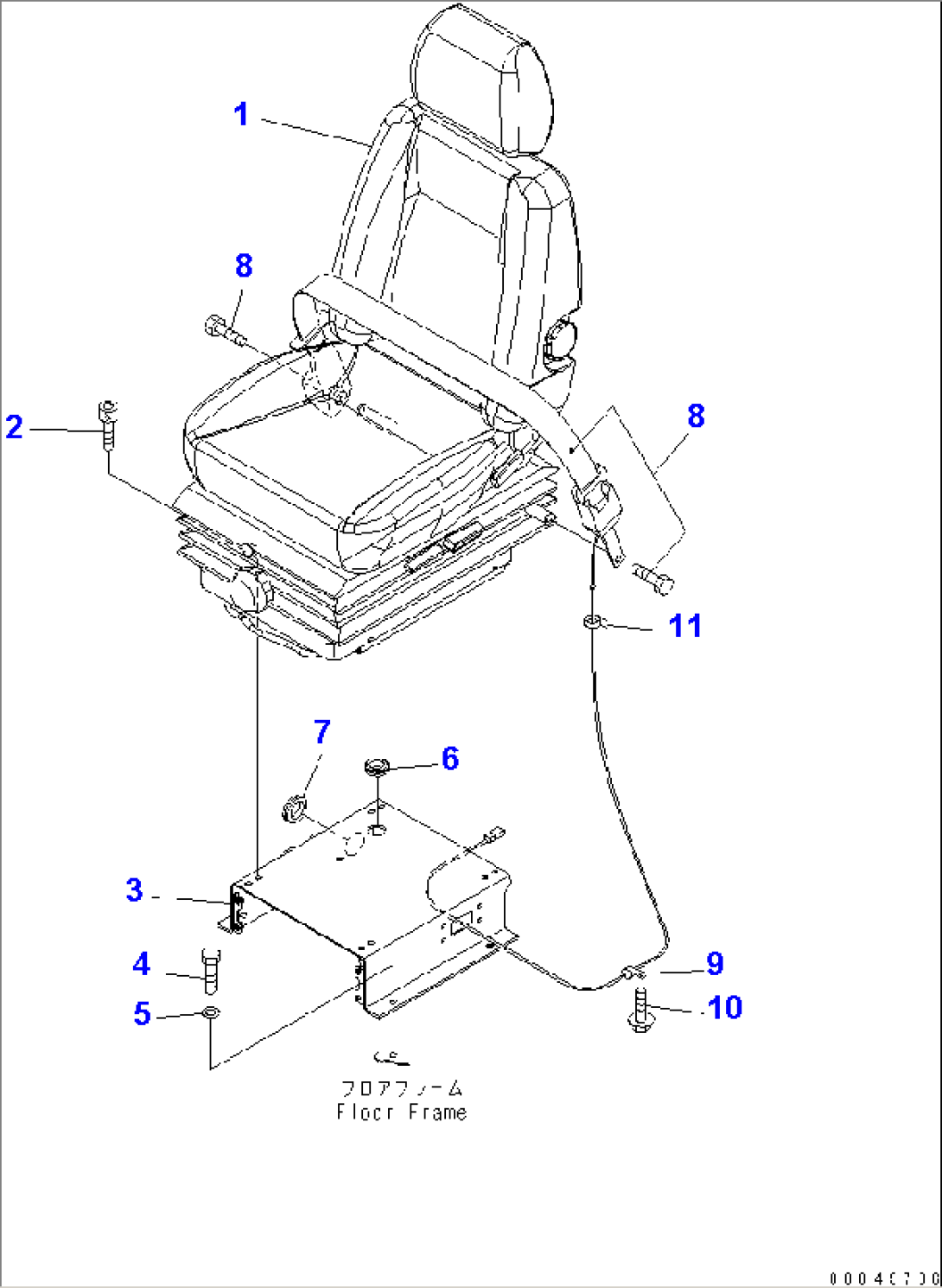

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (56B-57-11111) | SEAT ASS'Y | 2535-2610 | |
| 1 | (56B-57-11110) | SEAT ASS'Y | 2001-2534 | |
| 2 | 01252-70820 | BOLT | 2001-2610 | |
| 3 | 56E-57-21142 | BRACKET | 2001-2610 | |
| 4 | 01010-81020 | BOLT | 2001-2610 | |
| 5 | 01643-31032 | WASHER | 2001-2610 | |
| 6 | 08037-02512 | GROMMET | 2001-2610 | |
| 7 | 08037-03614 | GROMMET | 2001-2610 | |
| 8 | 56B-57-11122 | BELT | 2001-2610 | |
| 9 | 04434-51010 | CLIP | 2001-2610 | |
| 10 | 01435-01016 | BOLT | 2001-2610 | |
| 11 | 08034-20519 | BAND | 2001-2610 |
