| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-54-25910 | BOX | 2001- | |
| 2 | 56D-54-25920 | FINISHER | 2001- | |
| 3 | 421-54-32611 | TRAY | 2001- | |
| 4 | 423-54-42790 | BAND | 2207- | |
| 5 | 01023-10616 | SCREW | 2001- | |
| 6 | 01010-81016 | BOLT | 2001- | |
| 7 | 01643-31032 | WASHER | 2001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2 s/n 2001 2218 (ecot3) (for eu)
- Operator's compartment and control system
- Floor (rear box)(#2207 )
Поиск по каталогу

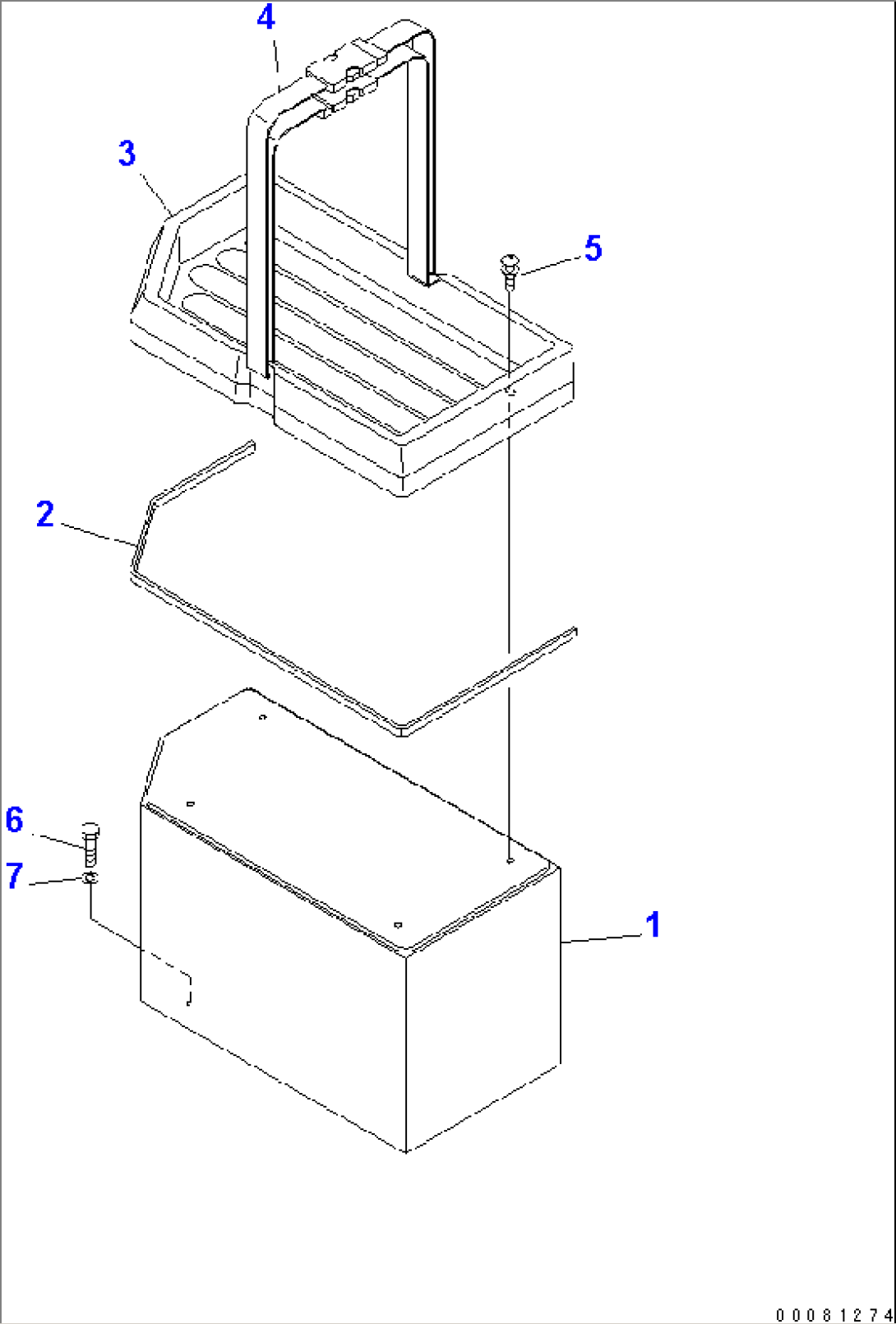

FLOOR (REAR BOX)(#2207-)
